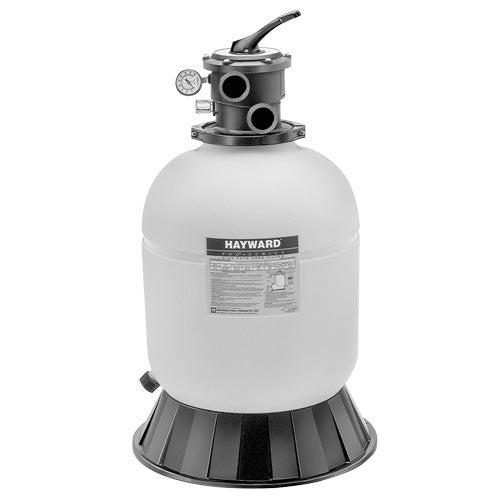

Hayward ProSeries W3S180T 18-Inch Top-Mount Sand Pool Filter
The Hayward ProSeries W3S180T is an 18-inch top-mount sand filter that steps up from the 16-inch W3S166T with a larger tank, 50 lbs more sand capacity, and a higher 35 GPM flow ceiling. It suits above-ground pools with more demanding flow requirements and smaller in-ground pools where a bit more filtration headroom reduces backwash frequency. The 7-position Vari-Flo valve mounts directly above the tank, and the flange clamp allows 360-degree rotation to orient the ports toward your plumbing without modifying the tank.
The filter ships with the valve, pressure gauge, laterals, and base. 150 lbs of #20 silica sand is required and sold separately. If you want the filter and a matched pump together, the W3S180T92S (1 HP) and W3S180T93S (1.5 HP) bundle this same filter with a PowerFlo Matrix pump.
Hayward W3S180T ProSeries 18-Inch Sand Filter Key Features
- 7-position Vari-Flo top-mount valve - Filter, Backwash, Rinse, Waste, Recirculate, Closed, and Winter positions on a single lever. Integral sight glass confirms backwash cycle completion.
- 35 GPM design flow rate - Handles higher pump outputs than the 16-inch model without driving the filter into over-pressure.
- 150 lb sand capacity - Larger sand bed provides more filtration surface area and longer intervals between backwash cycles at equivalent debris loads.
- 360-degree valve rotation - Flange clamp lets the valve face any direction for clean plumbing alignment.
- Integral top diffuser - Spreads incoming water evenly across the full sand bed surface to prevent channeling.
- Umbrella-fold self-cleaning laterals - Folding ball joint design provides easy access for servicing and ensures balanced backwashing across the full base of the tank.
- Large pressure sand/water drain - Full-size base drain for quick winterizing or sand changes without tilting the filter.
- Corrosion-proof thermoplastic tank - All-weather UV-stable construction rated for continuous outdoor use.
Hayward W3S180T ProSeries 18-Inch Sand Filter Specifications
Sand not included. Use #20 grade silica pool filter sand only. Pool coverage depends on pump output at actual system head and turnover rate targets.
Hayward ProSeries Above-Ground Sand Filter Lineup: W3S180T in Context
The W3S180T is the 18-inch filter-only option in the ProSeries above-ground lineup. The table below covers all six products, including the pre-matched pump systems.
| Model | Tank | Sand | Flow Rate | Pump |
|---|---|---|---|---|
| W3S166T | 16 in. | 100 lbs | 30 GPM | Filter only |
| W3S166T1580S | 16 in. | 100 lbs | 30 GPM | 1 HP PowerFlo LX |
| W3S180T (this model) | 18 in. | 150 lbs | 35 GPM | Filter only |
| W3S180T92S | 18 in. | 150 lbs | 35 GPM | 1 HP PowerFlo Matrix |
| W3S180T93S | 18 in. | 150 lbs | 35 GPM | 1.5 HP PowerFlo Matrix |
| W3S210T93S | 21 in. | 200 lbs | 37 GPM | 1.5 HP PowerFlo Matrix |
Flow rates per Hayward published specifications. W3S166T1580S, W3S180T92S, W3S180T93S, and W3S210T93S are pre-matched pump systems that ship with the filter, valve, pump, base, and hoses.
Maintaining the Hayward W3S180T ProSeries 18-Inch Sand Filter
Backwash when pressure rises 8 to 10 PSI above the clean baseline. Set the valve to Backwash, run the pump until the sight glass clears, then Rinse for 15 to 30 seconds before returning to Filter. Use the sight glass rather than a fixed timer.
Sand typically lasts 3 to 5 years. Signs it needs replacing: persistent cloudiness after correct backwashing, fine sand at return fittings, or very short intervals between backwash cycles.
First Startup: Loading Sand
Fill the tank halfway with water before adding sand to protect the laterals, then add 150 lbs of #20 silica sand gradually. Run a full Rinse cycle before switching to Filter mode to flush fine dust from the new media. Note the pressure at this point as the clean baseline.
Winterizing the W3S180T
Drain the tank fully through the base drain and leave the plug out for the off-season. Set the valve to Winter to drain the valve body. For above-ground installations, store indoors or in an insulated space where temperatures stay above freezing.
Hayward W3S180T ProSeries 18-Inch Sand Filter Frequently Asked Questions
Does the W3S180T come with sand?
No. The filter ships with the tank, 7-position Vari-Flo valve, pressure gauge, laterals, and base. 150 lbs of #20 silica pool filter sand must be purchased separately before the filter can be placed in service.
What is the difference between the W3S180T and the W3S166T?
The W3S180T uses an 18-inch tank with 150 lbs of sand and a 35 GPM flow ceiling, versus 16 inches, 100 lbs, and 30 GPM on the W3S166T. The larger sand bed extends backwash intervals and the higher flow ceiling accommodates pumps that would over-pressure the 16-inch filter.
Can I use the W3S180T with an in-ground pool?
Yes, for smaller in-ground pools with pump outputs at or below 35 GPM at actual system head. The 1.5" NPT connections are compatible with standard in-ground plumbing. For in-ground pools with higher flow demands, a larger ProSeries model is more appropriate.
Should I choose the W3S180T or one of the W3S180T pump system bundles?
If you already have a compatible pump, the W3S180T is the filter-only option. If you need a new pump alongside the filter, the W3S180T92S (1 HP) or W3S180T93S (1.5 HP) bundles this same filter with a factory-matched PowerFlo Matrix pump, base, and hoses.
How many positions does the valve have and what are they?
The W3S180T includes a 7-position Vari-Flo top-mount valve: Filter, Backwash, Rinse, Waste, Recirculate, Closed, and Winter. The Winter position drains the valve body to prevent freeze damage during off-season storage.
