AquaCal SQ200R Pool Heat Pump (Heat/Cool)
✓ AquaCal Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The AquaCal SQ200R SuperQuiet is a variable-speed inverter pool heat pump rated at 138,000 BTU for pools up to 35,000 gallons. It heats and cools, runs on a pure titanium heat exchanger, and includes built-in PoolSync WiFi. Comparable heat pumps at this BTU output from other brands retail between $7,000 and $9,000. The SQ200R delivers premium performance at a competitive price point.
2-year parts and labor warranty included. Register with PoolSync within 30 days of installation for a free third year of coverage.
Not sure if the SQ200R is the right size for your pool? Call us at 800-809-3741 and we'll help you size it correctly before you buy.
All New for 2025: The SuperQuiet 200R Heats or Cools Your Pool, Now With Built-in WiFi
The AquaCal SQ200R is the largest model in the SuperQuiet series. It uses an inverter-driven variable-speed compressor and a pure titanium heat exchanger to extract heat from the air, giving you precise temperature control for a fraction of the cost of a gas heater.
A Note from the Owner...
Hi! I'm Lindsay, the founder of Nonstop Swim. I've spent thousands of hours researching products, working with our vendors, and talking to customers. Here are my thoughts on the AquaCal SQ200R:
The AquaCal SuperQuiet series includes the SQ200R heat pump (this one - 138K BTU for pools up to 35,000 gallons), the SQ160R heat pump (128K BTU for pools up to 30,000 gallons), and the SQ140R (114K BTU for pools up to 25,000 gallons). The SQ200R is the choice if you have a large pool and/or you want rapid, powerful heating for maximum efficiency.
Right now, this is the heat pump to get for the most energy output at maximum efficiency, thanks to the built-in inverter technology, which allows the heater to precisely modulate its output.
Give us a shout if you have any questions! -Lindsay & the Nonstop Swim team

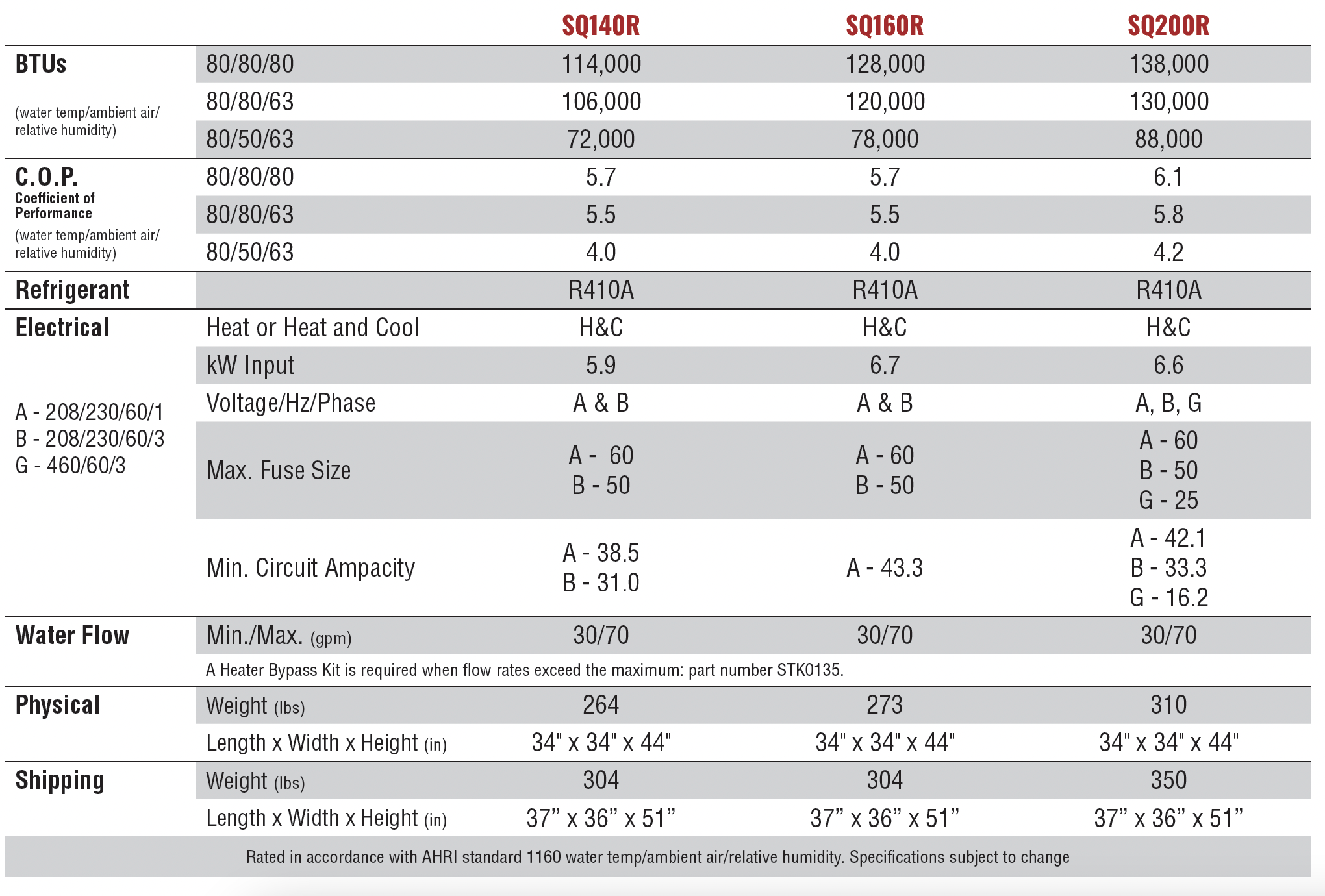

AquaCal SQ200R Specifications
| Specification | Value |
|---|---|
| Model | SQ200R |
| BTU Output (Heating) | 138,000 BTU |
| Pool Size (Recommended) | Up to 35,000 gallons |
| Operation | Heat and Cool |
| Coefficient of Performance (COP) | 6.1 |
| Compressor Type | Variable speed inverter |
| Heat Exchanger | Pure titanium (lifetime warranty) |
| Refrigerant | R-410A |
| Power Options | 1-phase 208/230V (residential) or 3-phase 460V (commercial) |
| Flow Resistance | 2 PSI at 45 GPM (variable speed pump compatible) |
| WiFi | Built-in PoolSync WiFi (no accessories needed) |
| Display | LCD with diagnostic system |
| Min. Operating Temperature | Works down to freezing (32°F) |
| Warranty | 2 years parts and labor + 1 year free with PoolSync registration; lifetime on titanium heat exchanger |
The AquaCal SQ200R: Total Pool Temperature Control Made Simple
The SQ200R uses about 75% less energy than gas heaters by pulling free heat from the air through its pure titanium heat exchanger instead of burning fuel. At a 6.1 COP, it produces 6.1 units of heat energy for every 1 unit of electricity consumed. For most pool owners, that translates to a few dollars a day to maintain your target temperature.

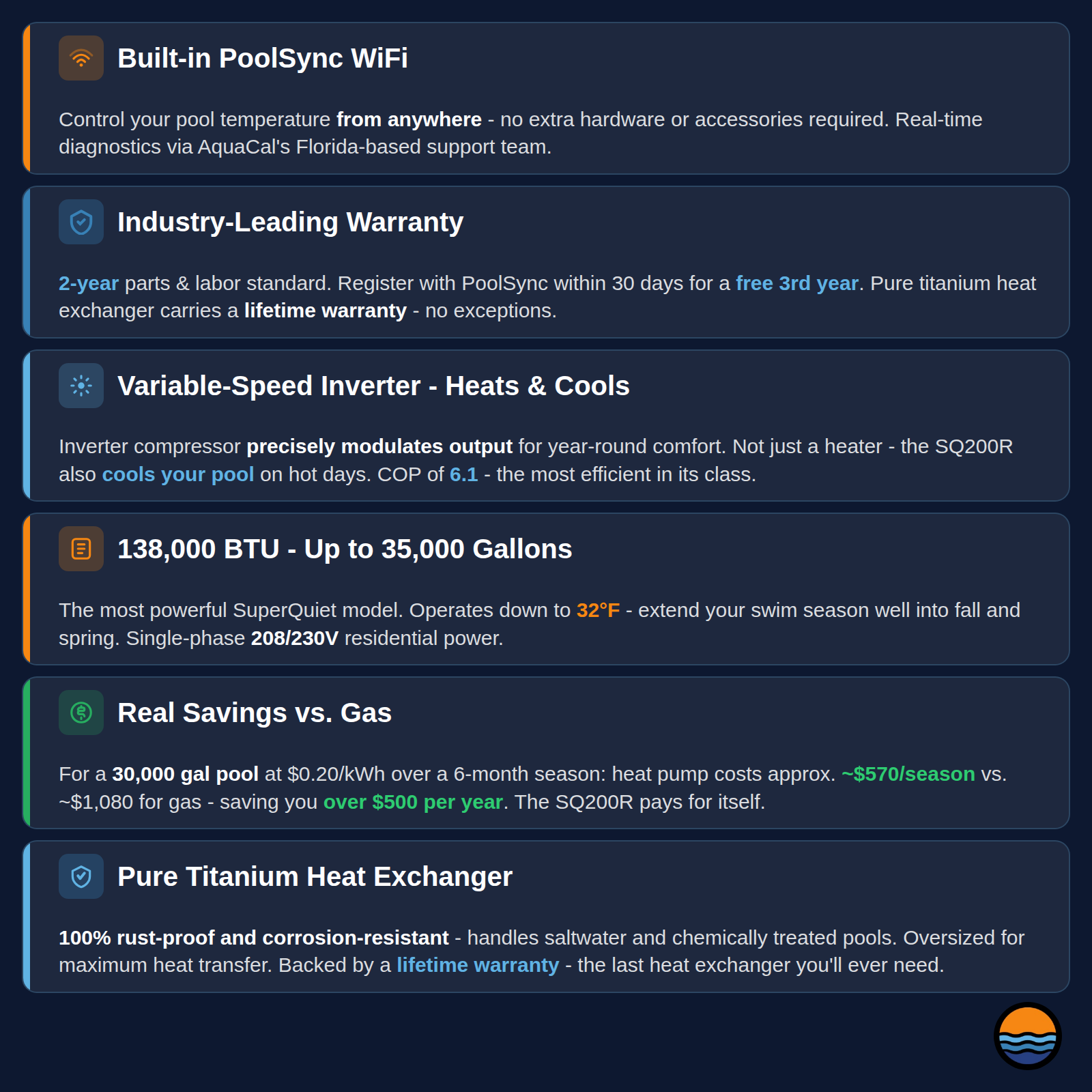

Key Features at a Glance
- 138,000 BTU output for faster heating on pools up to 35,000 gallons
- 6.1 COP for the lowest operating costs in its class
- Built-in PoolSync WiFi for full control from your phone, no extra hardware needed
- Dual heat and cool operation for year-round comfort
- Variable speed pump compatible: adds only 2 PSI at 45 GPM
- Pure titanium heat exchanger with lifetime warranty, rust-proof and corrosion-resistant
SQ200R Technical Details
- Power options: residential 1-phase (208/230V) or commercial 3-phase (460V)
- Cold-weather capable: operates efficiently down to freezing temperatures
- Oversized titanium heat exchanger for maximum heat transfer efficiency
- LCD diagnostic display for easy troubleshooting
- Heavy-duty rust-proof cabinet built for outdoor installation
- Built-in condensate drain for low-maintenance operation
AquaCal SQ200R Manual and Warranty Information
The SQ200R comes with a 2-year warranty on parts and labor, plus a free extra year of coverage when connected to the PoolSync app within 30 days of installation. The pure titanium heat exchanger carries a separate lifetime warranty. The PoolSync connection also enables remote monitoring and real-time diagnostics by AquaCal's Florida-based support team.
- AquaCal SQ200R Brochure (PDF)
- AquaCal SQ200R Manual - Installation (PDF)
- AquaCal SQ200R Manual - Operation (PDF)
- AquaCal SQ200R Warranty (PDF)
