The AquaCal SQ160R SuperQuiet is a variable-speed inverter pool heat pump rated at 128,000 BTU for pools up to 30,000 gallons. It heats and cools, operates down to freezing temperatures, and includes built-in PoolSync WiFi. Comparable heat pumps at this output from other brands retail between $6,000 and $8,000. The SQ160R delivers the same class of performance at a lower price point.
2-year parts and labor warranty included. Register with PoolSync within 30 days of installation for a free third year of coverage.
Not sure if the SQ160R is the right size for your pool? Call us at 800-809-3741 and we'll help you size it correctly before you buy.
All New for 2025: WiFi Built Right Into the AquaCal SQ160R Heating and Cooling Pool Heat Pump
The AquaCal SQ160R SuperQuiet uses a variable-speed inverter compressor and a pure titanium heat exchanger to heat or cool your pool efficiently in any climate. Set your target temperature from your phone via the PoolSync app and the SQ160R handles the rest.
A Note from the Owner...
Hi! I'm Lindsay, the founder of Nonstop Swim. I've spent thousands of hours researching products, working with our vendors, and talking to customers. Here are my thoughts on the AquaCal SQ160R:
The AquaCal SuperQuiet series includes the SQ200R heat pump (138K BTU for pools up to 35,000 gallons), the SQ160R (this one - 128K BTU for pools up to 30,000 gallons), and the SQ140R (114K BTU for pools up to 25,000 gallons).
The SQ160R is an excellent choice if you have a larger pool and/or you want rapid, powerful heating for maximum efficiency.
Right now, AquaCal's SuperQuiet series is leading the pack, in my opinion. These heat pumps provide the most energy output at maximum efficiency thanks to the built-in inverter technology, which allows the heater to precisely modulate its output.
Give us a shout if you have any questions! -Lindsay & the Nonstop Swim team

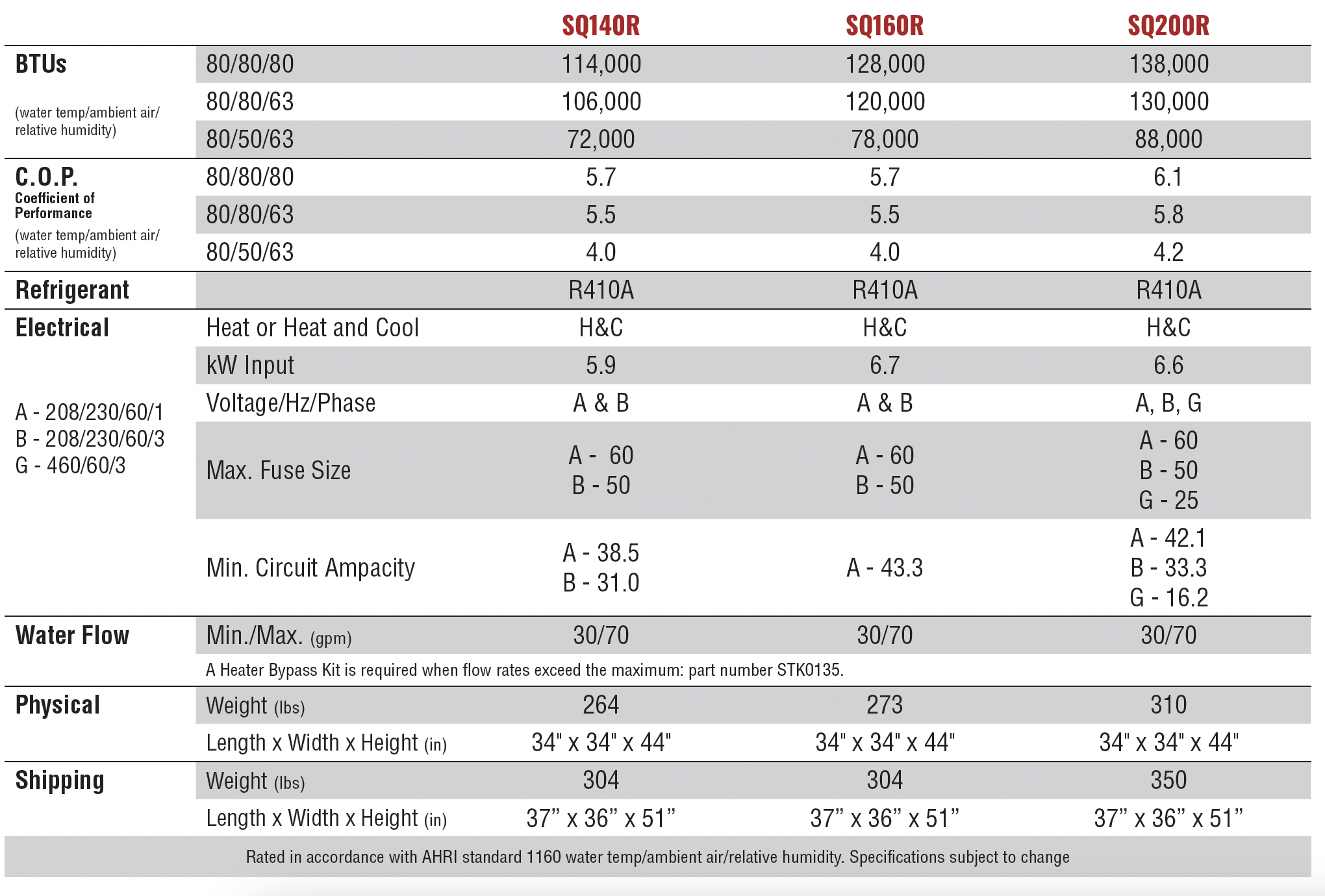

AquaCal SQ160R Specifications
| Specification | Value |
|---|---|
| Model | SQ160R |
| BTU Output (Heating) | 128,000 BTU (at 80°F/80°F/80°) |
| Pool Size (Recommended) | Up to 30,000 gallons |
| Operation | Heat and Cool |
| Coefficient of Performance (COP) | 5.7 |
| Compressor Type | Variable speed inverter |
| Heat Exchanger | Pure titanium (corrosion resistant, lifetime warranty) |
| Water Flow Range | 30 to 70 GPM |
| Flow Resistance | 2 PSI at 45 GPM (variable speed pump compatible) |
| Power Options | 1-phase 208/230V (residential) or 3-phase 460V (commercial) |
| WiFi | Built-in PoolSync WiFi (no accessories needed) |
| Display | Smart microprocessor with easy-to-read display |
| Min. Operating Temperature | Works down to freezing (32°F) |
| Cabinet | Rust-proof, impact-resistant |
| Warranty | 2 years parts and labor + 1 year free with PoolSync registration; lifetime on titanium heat exchanger |
The AquaCal SQ160R: Total Pool Temperature Control Made Simple
Where the SQ160R stands out is cold-weather performance. While standard heat pumps lose efficiency as temperatures drop, the SQ160R keeps working reliably down to freezing. That means a longer swimming season without switching to a gas heater. It also runs quietly enough that you won't notice it from poolside.

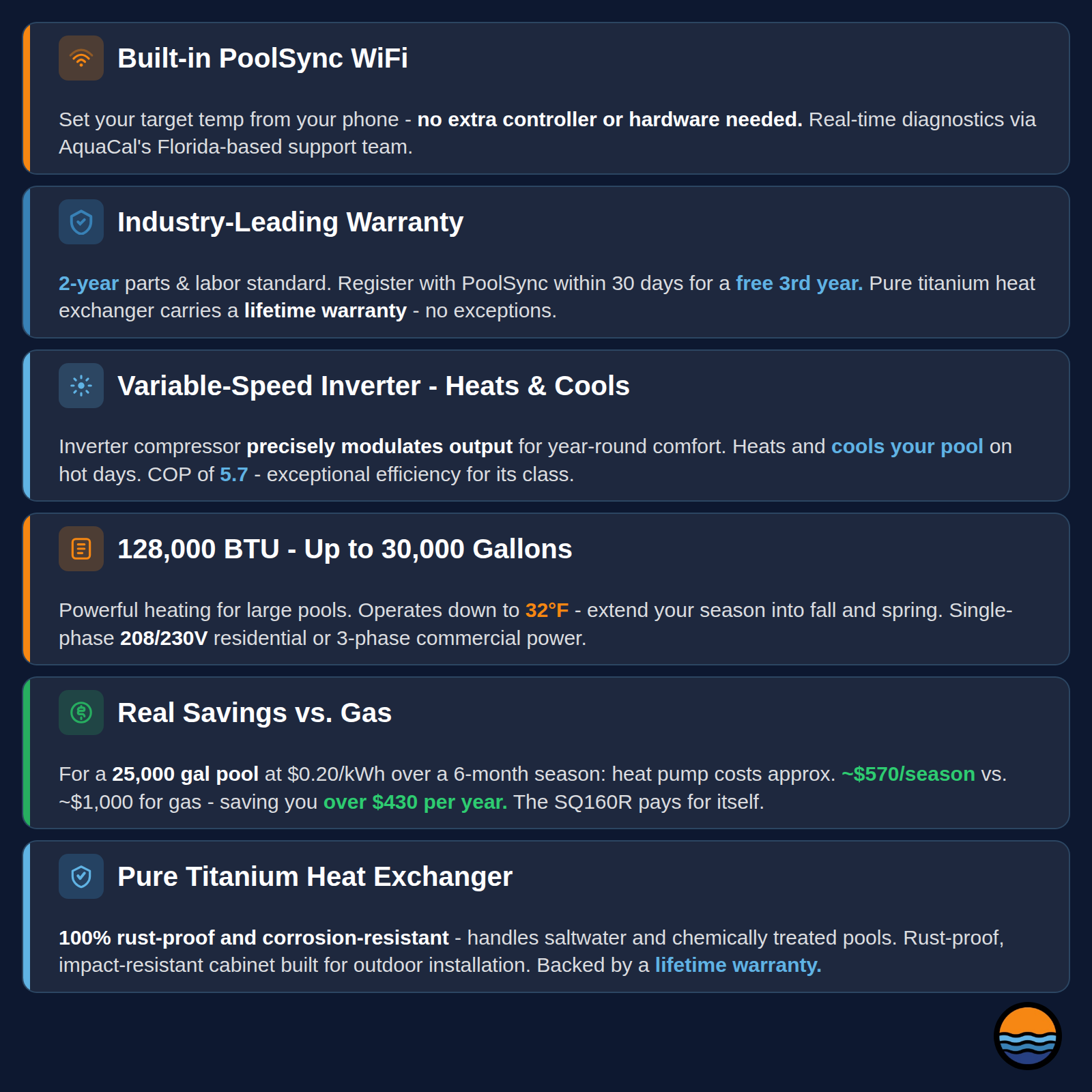

Key Features at a Glance
- Built-in PoolSync WiFi: connects directly to the app, no extra controller or hardware needed
- Heats and cools: full temperature control year-round
- Pure titanium heat exchanger: corrosion-resistant with a lifetime warranty
- Variable speed pump compatible: adds only 2 PSI at 45 GPM
- Rust-proof, impact-resistant cabinet built for outdoor installation
- Smart microprocessor with easy-to-read display for straightforward operation
SQ160R Technical Details
- 128,000 BTU heating output for pools up to 30,000 gallons
- 5.7 COP: for every unit of electricity consumed, you get 5.7 units of heat output
- Cold-weather capable: operates efficiently down to 32°F
- Water flow range: 30 to 70 GPM
- Full automation ready with PoolSync app compatibility
- Built-in condensate drain for low-maintenance operation
AquaCal SQ160R Manual and Warranty Information
The SQ160R comes with a 2-year warranty on parts and labor, plus a free extra year of coverage when connected to the PoolSync app within 30 days of installation. The pure titanium heat exchanger carries a separate lifetime warranty. The PoolSync connection also enables remote monitoring and real-time diagnostics by AquaCal's Florida-based support team.
- AquaCal SQ160R Brochure (PDF)
- AquaCal SQ160R Manual - Installation (PDF)
- AquaCal SQ160R Manual - Operation (PDF)
- AquaCal SQ160R Warranty (PDF)
