AquaCal SQ140R Pool Heat Pump (Heat/Cool)
✓ AquaCal Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The AquaCal SQ140R SuperQuiet is a variable-speed inverter pool heat pump rated at 114,000 BTU for pools up to 25,000 gallons. It heats and cools, operates down to freezing temperatures, and includes built-in PoolSync WiFi. Comparable heat pumps at this output from other brands retail between $5,500 and $7,000. The SQ140R delivers the same class of performance at a lower price point.
2-year parts and labor warranty included. Register with PoolSync within 30 days of installation for a free third year of coverage.
Not sure if the SQ140R is the right size for your pool? Call us at 800-809-3741 and we'll help you size it correctly before you buy.
One Device Does It All: Heat, Cool, and Control Your Pool From Anywhere With the SuperQuiet 140R
The AquaCal SQ140R uses a variable-speed inverter compressor and a pure titanium heat exchanger to heat or cool your pool efficiently in any climate. Built-in PoolSync WiFi means full control from your phone with no extra hardware or controllers needed.
A Note from the Owner...
Hi! I'm Lindsay, the founder of Nonstop Swim. I've spent thousands of hours researching products, working with our vendors, and talking to customers. Here are my thoughts on the AquaCal SQ140R:
The AquaCal SuperQuiet series includes the SQ200R (138K BTU for pools up to 35,000 gallons), the SQ160R (128K BTU for pools up to 30,000 gallons), and the SQ140R (this one - 114K BTU for pools up to 25,000 gallons).
The SQ140R is an excellent choice if you have a medium-sized pool and/or you want rapid, powerful heating for maximum efficiency.
Right now, AquaCal's SuperQuiet series is leading the pack, in my opinion. These heat pumps provide the most energy output at maximum efficiency thanks to the built-in inverter technology, which allows the heater to precisely modulate its output.
Give us a shout if you have any questions! -Lindsay & the Nonstop Swim team

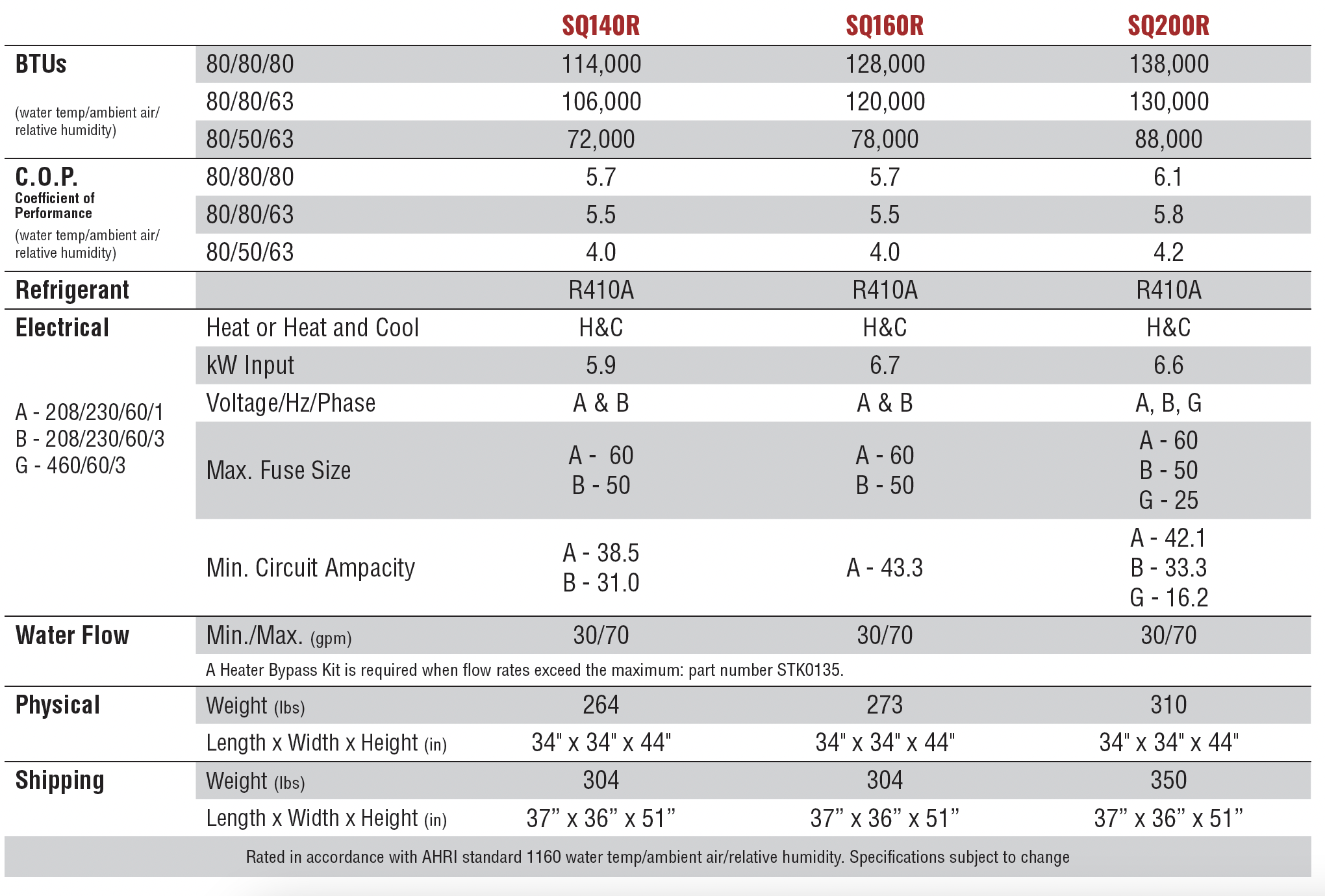

AquaCal SQ140R Specifications
| Specification | Value |
|---|---|
| Model | SQ140R |
| BTU Output (Heating) | 114,000 BTU (at 80°F/80°F/80°) |
| Pool Size (Recommended) | Up to 25,000 gallons |
| Operation | Heat and Cool |
| Coefficient of Performance (COP) | 5.7 |
| Compressor Type | Variable speed inverter |
| Heat Exchanger | Pure titanium (corrosion resistant, lifetime warranty) |
| Water Flow Range | 30 to 70 GPM |
| Flow Resistance | 2 PSI at 45 GPM (variable speed pump compatible) |
| Power Options | 1-phase 208/230V (residential) or 3-phase 460V (commercial) |
| WiFi | Built-in PoolSync WiFi (no accessories needed) |
| Display | Smart microprocessor with easy-to-read display |
| Min. Operating Temperature | Works down to freezing (32°F) |
| Cabinet | Rust-proof, impact-resistant |
| Warranty | 2 years parts and labor + 1 year free with PoolSync registration; lifetime on titanium heat exchanger |
Why the SQ140R is a Different Class of Pool Heat Pump
The SQ140R's inverter compressor continuously adjusts its output to match your pool's heating or cooling demand rather than cycling on and off at full power. This keeps your pool at a steady target temperature while consuming significantly less electricity than a single-speed heat pump or gas heater. At a 5.7 COP, you get 5.7 units of heat for every unit of electricity consumed.

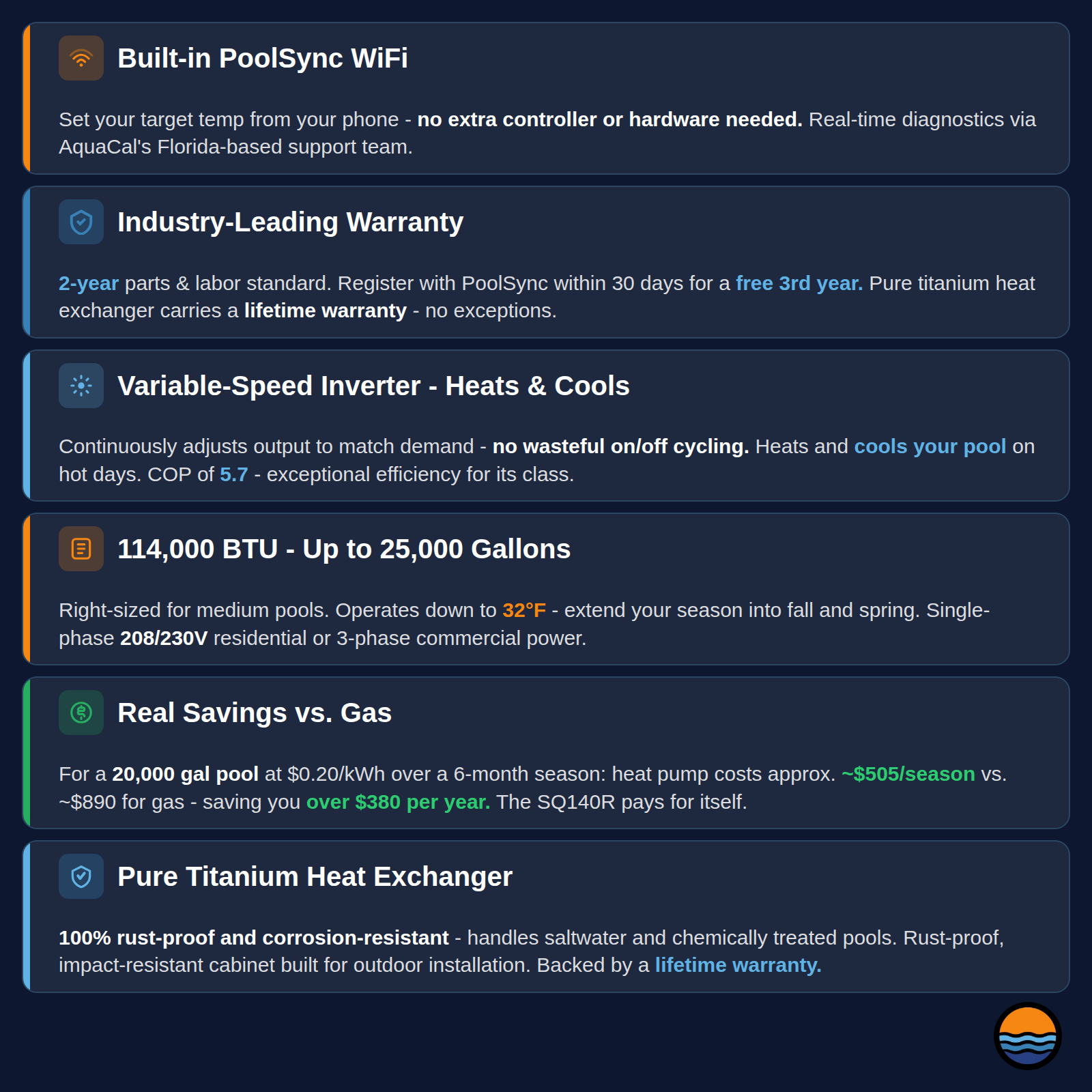

Key Features at a Glance
- Built-in PoolSync WiFi: connects directly to the app, no extra controller or hardware needed
- Heats and cools: full temperature control year-round
- Pure titanium heat exchanger: corrosion-resistant with a lifetime warranty
- Variable speed pump compatible: adds only 2 PSI at 45 GPM
- Rust-proof, impact-resistant cabinet built for outdoor installation
- Smart microprocessor with easy-to-read display for straightforward operation
SQ140R Technical Details
- 114,000 BTU heating output for pools up to 25,000 gallons
- 5.7 COP: for every unit of electricity consumed, you get 5.7 units of heat output
- Cold-weather capable: operates efficiently down to 32°F
- Water flow range: 30 to 70 GPM
- Full automation ready with PoolSync app compatibility
- Built-in condensate drain for low-maintenance operation
AquaCal SQ140R Manual and Warranty Information
The SQ140R comes with a 2-year warranty on parts and labor, plus a free extra year of coverage when connected to the PoolSync app within 30 days of installation. The pure titanium heat exchanger carries a separate lifetime warranty. The PoolSync connection also enables remote monitoring and real-time diagnostics by AquaCal's Florida-based support team.
- AquaCal SQ140R Brochure (PDF)
- AquaCal SQ140R Manual - Installation (PDF)
- AquaCal SQ140R Manual - Operation (PDF)
- AquaCal SQ140R Warranty (PDF)
