Madimack InverTitan 90K BTU Inverter Heat Pump (Heat/Cool)
✓ Madimack Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The Madimack InverTitan 90K BTU (SKU INVTIT090) is an inverter pool heat pump with heating and cooling modes for pools up to 20,000 gallons. COP range 6.0 to 14.3. Stepless DC inverter compressor. Twisted titanium heat exchanger. Operates 14 to 109 degrees F. Sound level 34.3 to 46.5 dB at 10 ft. Rated input 0.63 to 4.28 kW. Advised water flow 33.0 to 41.7 GPM. Dimensions 35.7 x 27.6 x 38.5 inches. Weight 277.8 lbs. Power supply 208 to 230V/1Ph/60Hz. Built-in Wi-Fi. Warranty: 25 years heat exchanger, 10 years compressor, 5 years parts and labor.
Madimack InverTitan 90K BTU Inverter Pool Heat Pump — Heat & Cool
The Madimack InverTITAN 90K is built for pool owners who want powerful, efficient heating with whisper-quiet operation.
Designed for pools up to approximately 20,000 gallons, the InverTITAN 90K uses advanced inverter technology. It delivers faster heat-up times, steady comfort, and energy savings that keep your pool ready longer throughout the season.
Madimack InverTitan 90K vs 112K vs 140K: Which Model Do You Need?
The InverTitan series comes in three sizes. All share the same inverter technology, operating temperature range, and warranty. The difference is output capacity and pool size:
- InverTitan 90K (INVTIT090) — 90,000 BTU, for pools up to 20,000 gallons. This model.
- InverTitan 112K (INVTIT112) — 112,000 BTU, for pools up to 25,000 gallons.
- InverTitan 140K (INVTIT140) — 140,000 BTU, for pools up to approximately 35,000 gallons.
If your pool is under 20,000 gallons, the 90K is the right fit. If you are between 20,000 and 25,000 gallons, step up to the 112K. For pools over 25,000 gallons, the 140K is the right choice.
A note from Lindsay, founder of Nonstop Swim
The Madimack InverTITAN series comes in three sizes: this 90K BTU unit (for pools up to 20,000 gallons), the InverTITAN 112K BTU unit (for pools up to 25,000 gallons), and the InverTITAN 140K BTU unit (for larger pools up to approximately 35,000 gallons). The InverTITAN series provides dual functionality: cooling in summer and extremely efficient heating in colder temperatures — much more so than the InverECO series, with a superior price point compared to the InverELITE series. A high-quality heat and cool option for mid-sized pools.
Questions? Reach out anytime. — Lindsay and the Nonstop Swim team
Madimack InverTitan 90K Energy Efficiency and COP
-
Stepless DC Inverter for precise control of compressor and fan motor speed
-
Double energy savings compared to single-speed on/off pumps
-
Rapid heating at the start of the season, then energy-efficient low-speed operation
-
COP up to 14.3 at partial load for outstanding efficiency

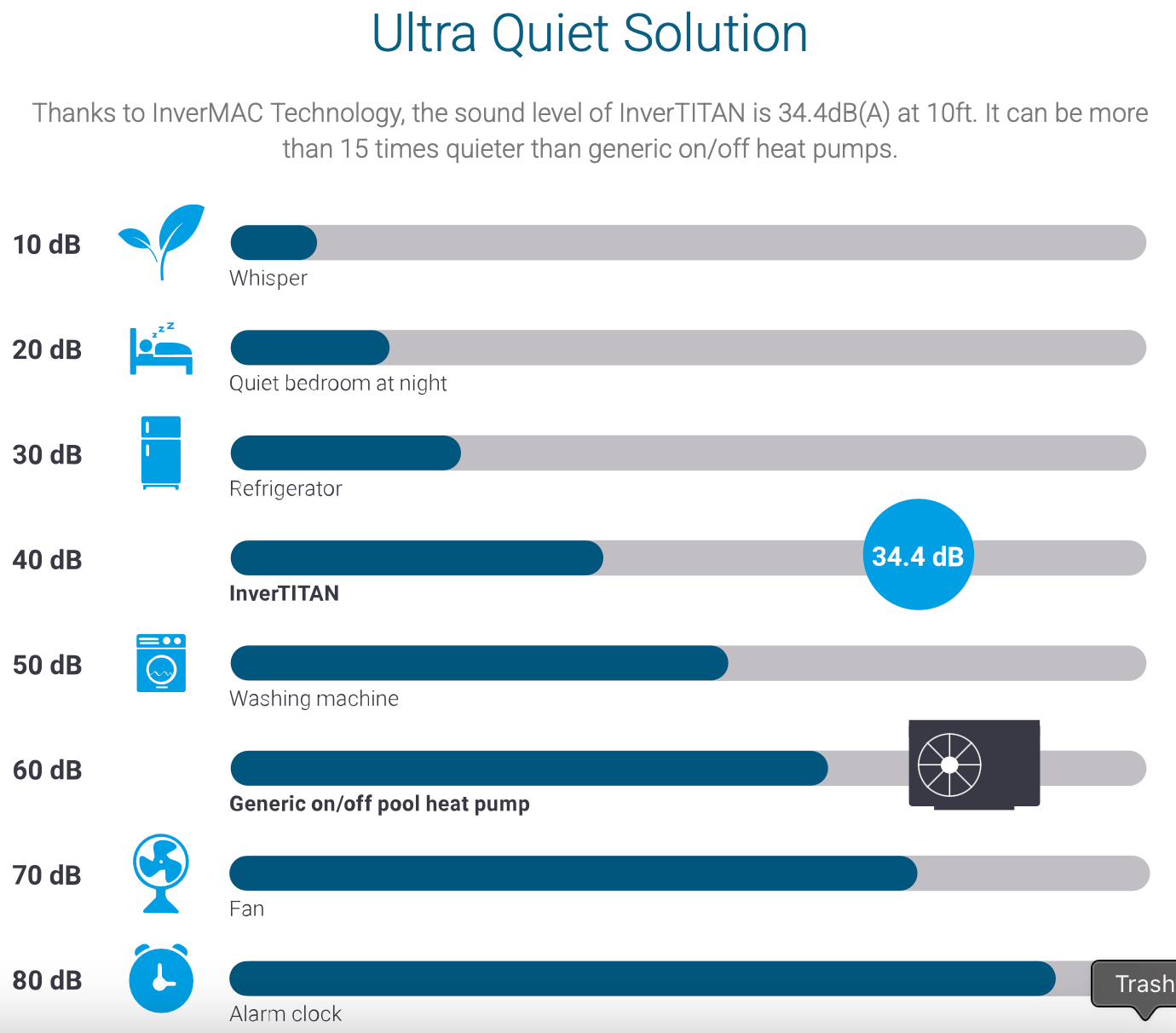

Madimack InverTitan 90K Noise Level
-
Noise level as low as 34.3 dB(A) at 10 ft
-
15x quieter than generic on/off heat pumps
-
Twin-rotary compressor minimizes vibration and sound
Heating and Cooling for Pools Up to 20,000 Gallons
-
Operates down to 14°F, extending your swimming season into colder months
-
Smart defrosting system detects frost and switches automatically to defrost mode
-
Soft start technology protects your electrical system during power-up
InverTitan 90K Heat Pump Construction and Components
-
Built-in Wi-Fi with app for easy remote control
-
Premium weatherproof casing protects against UV, corrosion, and harsh weather
-
Twisted titanium heat exchanger with 40% higher efficiency
-
Electronic expansion valve for optimized refrigerant flow and higher performance

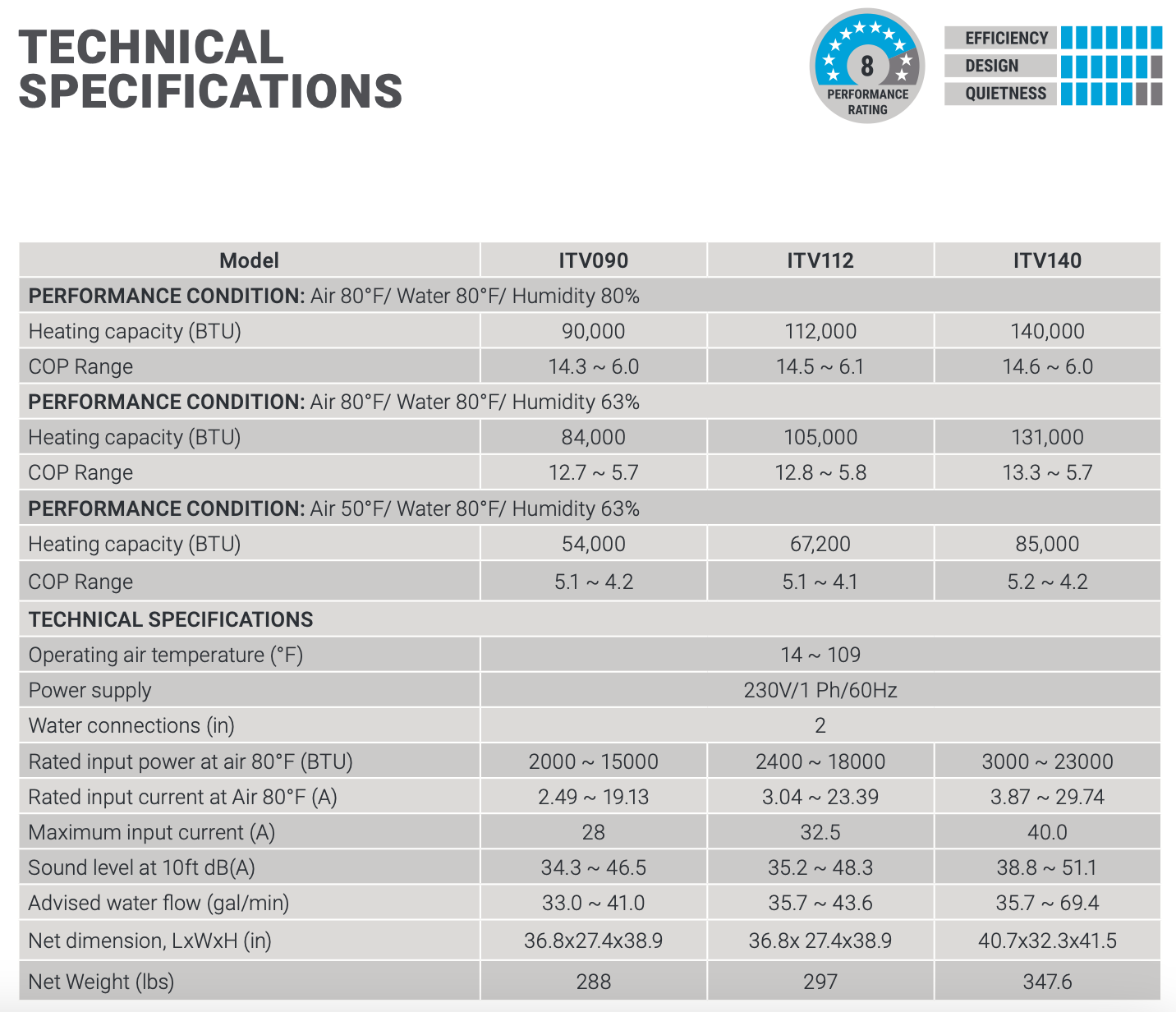

Madimack InverTitan 90K BTU Heat Pump Specifications
Madimack InverTitan Brochure (PDF)
