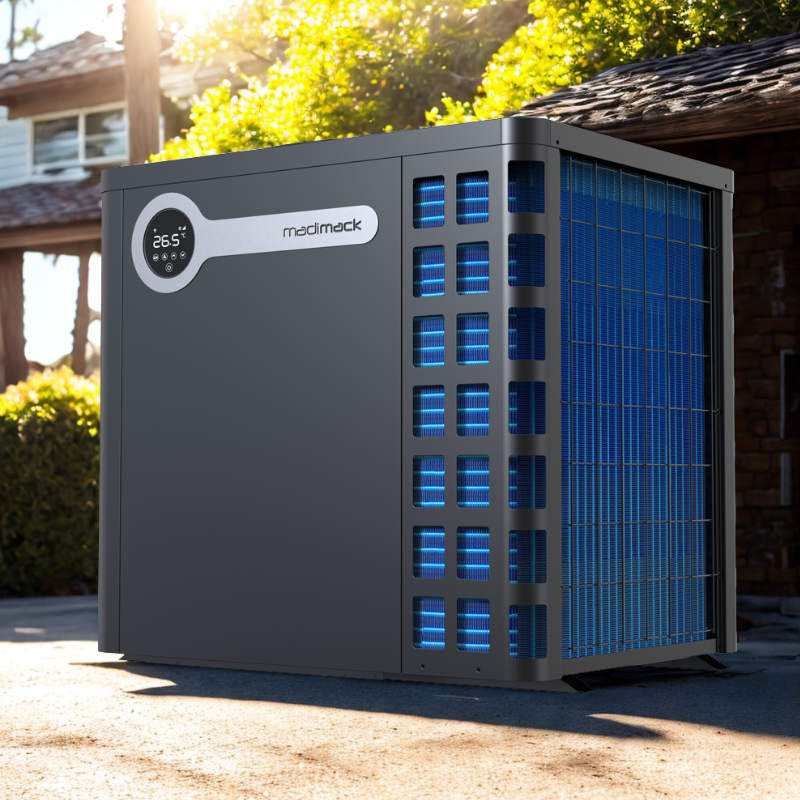

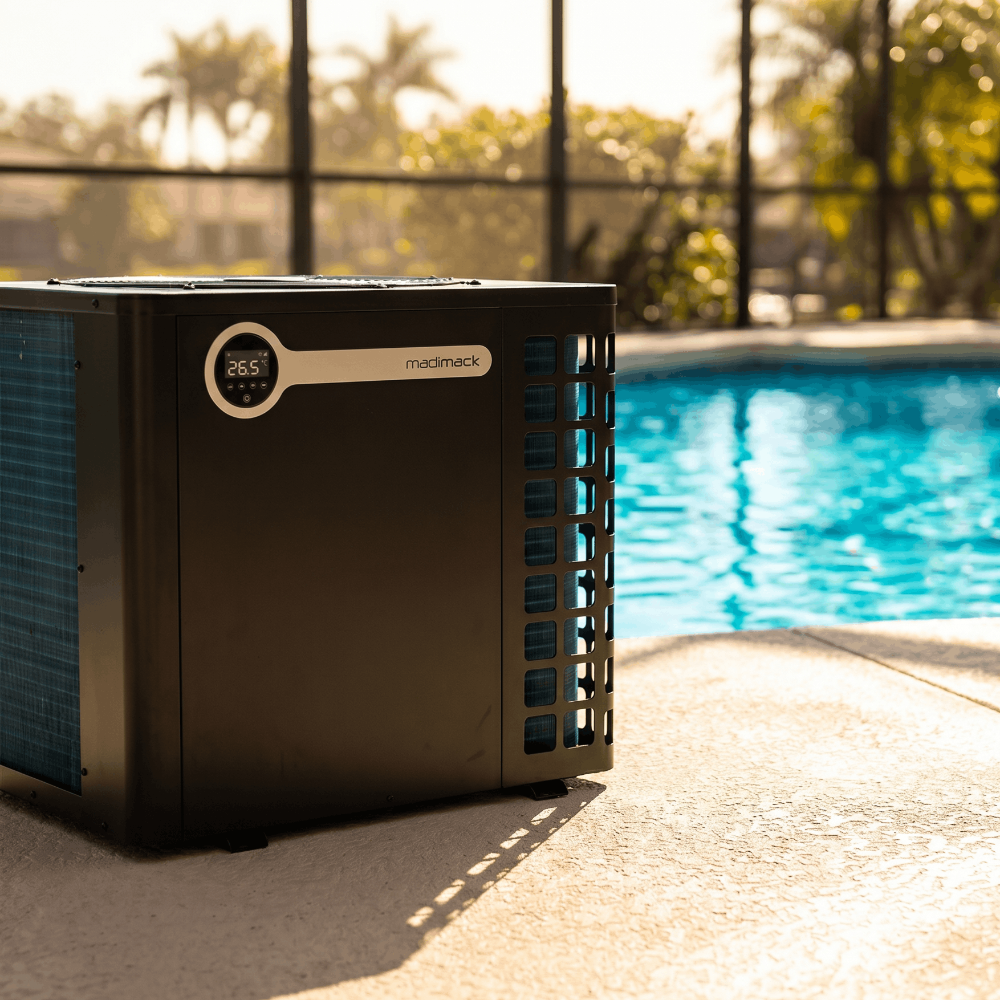

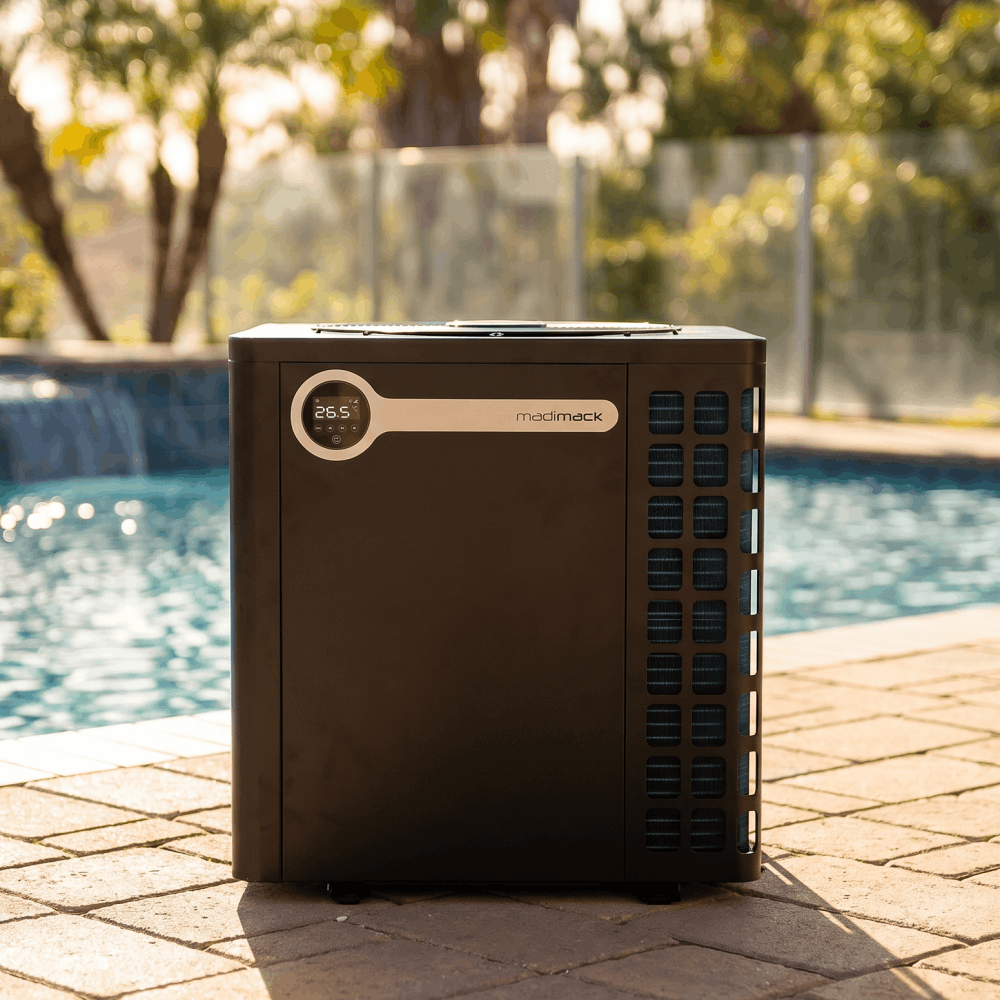

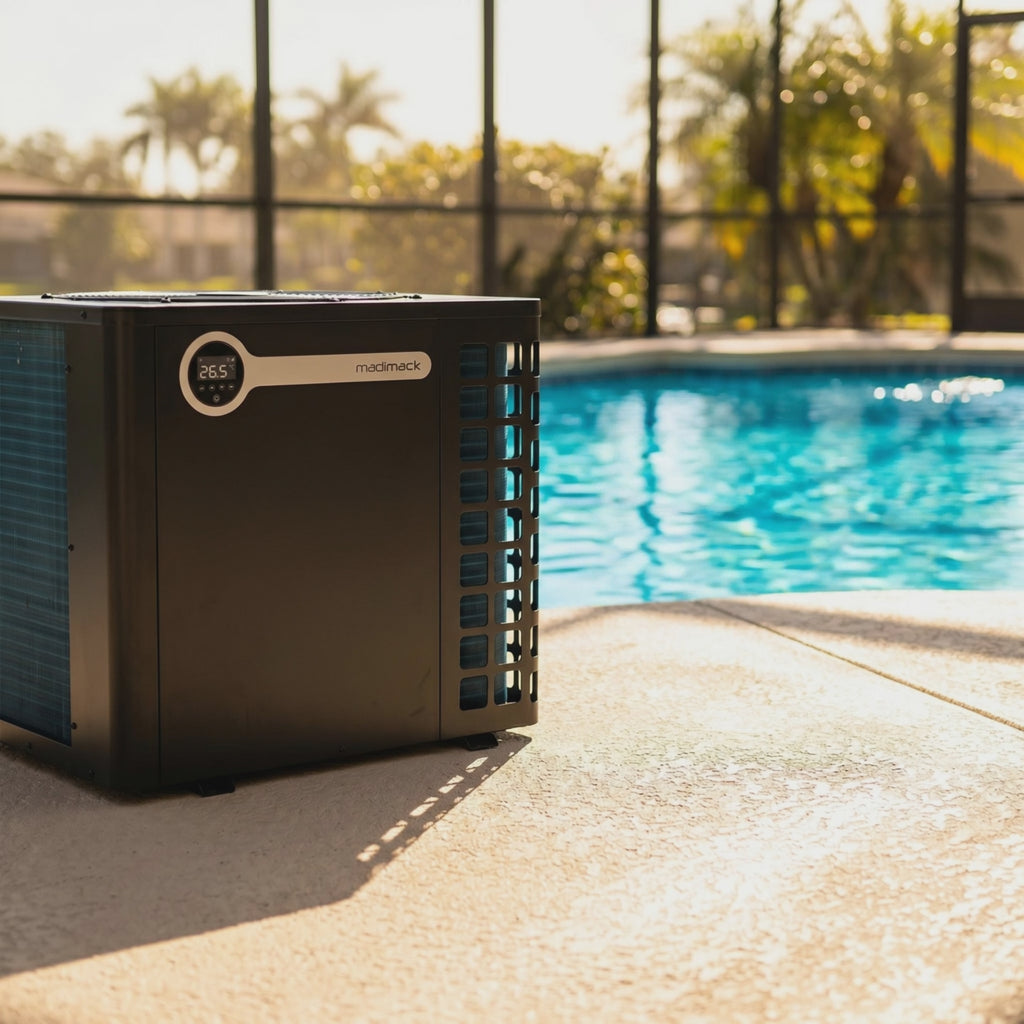

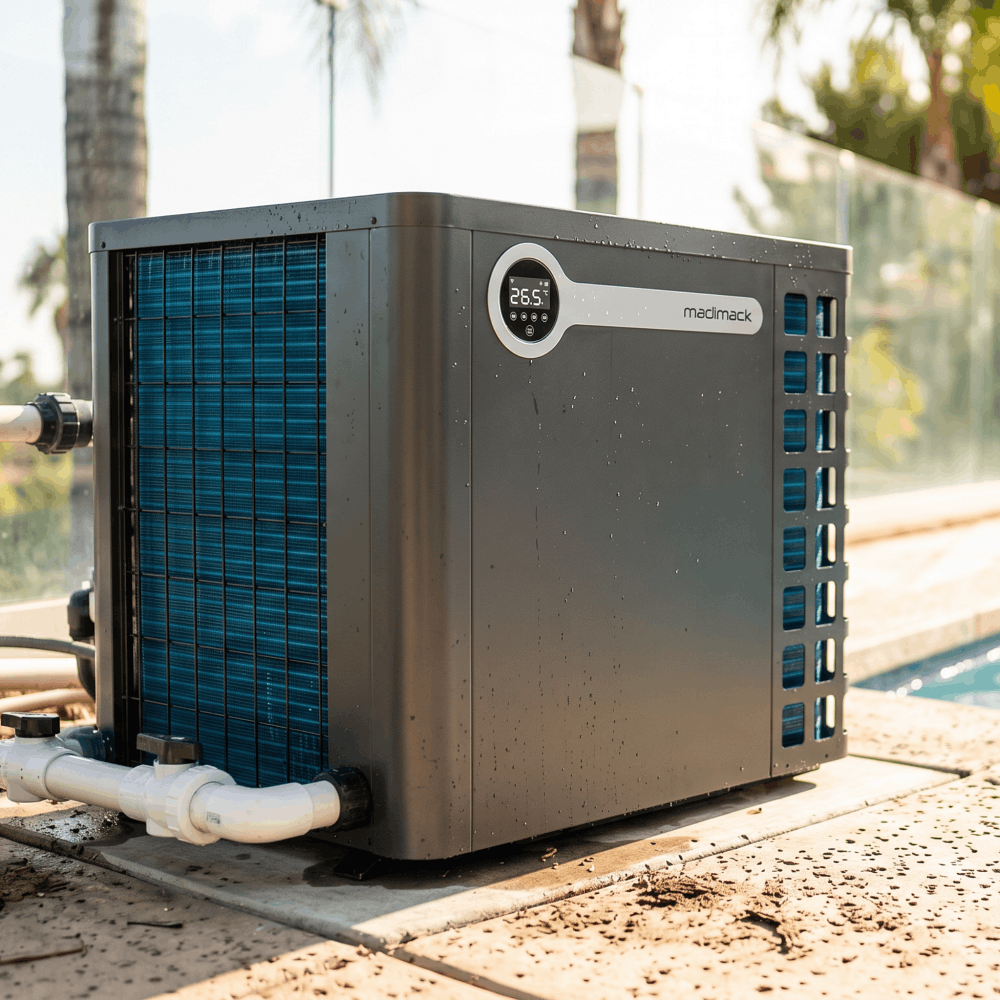

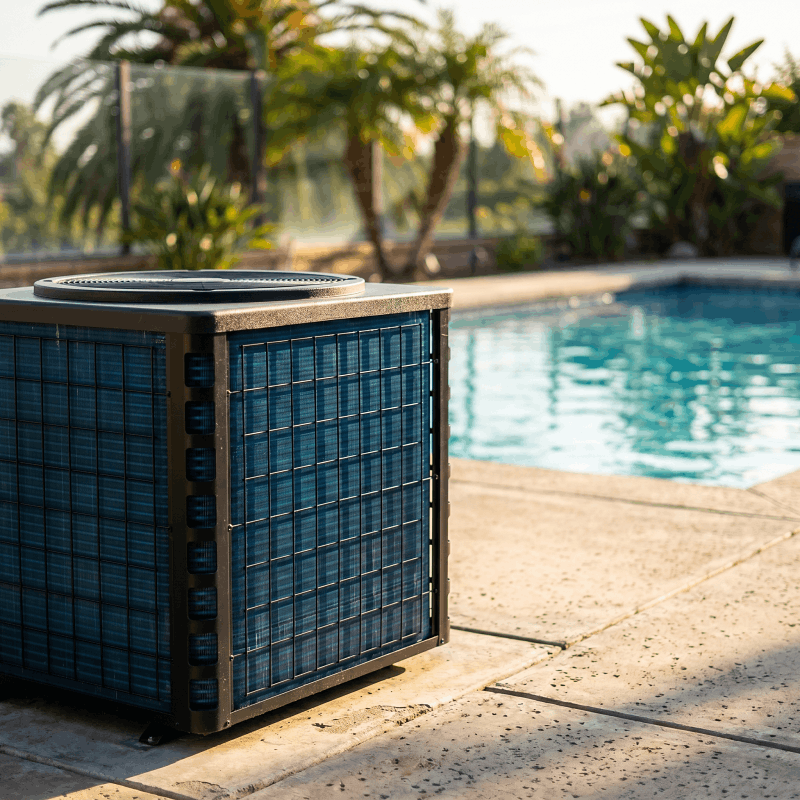

Madimack InverTitan 112K BTU Inverter Heat Pump (Heat/Cool)
✓ Madimack Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The Madimack InverTitan 112K BTU (SKU INVTIT112) is an inverter pool heat pump with heating and cooling modes for pools up to 25,000 gallons. COP range 6.1 to 14.5. Stepless DC inverter twin-rotary compressor. Twisted titanium heat exchanger. Operates 14 to 109 degrees F. Sound level 35.2 to 48.3 dB at 10 ft. Rated input 0.6 to 5.4 kW. Advised water flow 35.1 to 44.1 GPM. Dimensions 35.7 x 27.6 x 38.5 inches. Weight 275.6 lbs. Power supply 208 to 230V/1Ph/60Hz. Built-in Wi-Fi. Warranty: 25 years heat exchanger, 10 years compressor, 5 years parts and labor.
Madimack InverTitan 112K BTU Inverter Pool Heat Pump — Heat & Cool
The Madimack InverTITAN 112K is built for pool owners who want powerful, efficient heating with whisper-quiet operation.
Designed for pools up to approximately 25,000 gallons, the InverTITAN 112K uses advanced inverter technology. It delivers faster heat-up times, steady comfort, and energy savings that keep your pool ready longer throughout the season.
Madimack InverTitan 112K vs 90K vs 140K: Which Model Do You Need?
The InverTitan series comes in three sizes. All share the same inverter technology, operating temperature range, and warranty. The difference is output capacity and pool size:
- InverTitan 112K (INVTIT112) — 112,000 BTU, for pools up to 25,000 gallons. This model.
- InverTitan 90K (INVTIT090) — 90,000 BTU, for pools up to 20,000 gallons.
- InverTitan 140K (INVTIT140) — 140,000 BTU, for pools up to approximately 35,000 gallons.
If your pool is between 20,000 and 25,000 gallons, the 112K is the right fit. Even for pools under 20,000 gallons, the 112K delivers 22,000+ more BTU of heating capacity, which can make a real difference in colder weather or for faster heat-up times. For pools over 25,000 gallons, consider the 140K.
A note from Lindsay, founder of Nonstop Swim
The Madimack InverTITAN series comes in three sizes: the InverTITAN 90K BTU unit (for pools up to 20,000 gallons), this 112K BTU unit (for pools up to 25,000 gallons), and the InverTITAN 140K BTU unit (for larger pools up to approximately 35,000 gallons). If your pool is under 20K gallons, you may still want to consider this unit — it provides 22K+ more BTU in heating capacity. The InverTITAN series is much more efficient in colder temperatures than the InverECO series, and has a better price point than the InverELITE series. A high-quality heat and cool option for mid-sized pools.
Questions? Reach out anytime. — Lindsay and the Nonstop Swim team
Madimack InverTitan 112K Energy Efficiency and COP
-
Stepless DC Inverter for precise control of compressor and fan motor speed
-
Double energy savings compared to single-speed on/off pumps
-
Rapid heating at the start of the season, then energy-efficient low-speed operation
-
COP up to 14.5 at partial load for outstanding efficiency
Madimack InverTitan 112K Noise Level
-
Noise level as low as 35.2 dB(A) at 10 ft
-
15x quieter than generic on/off heat pumps
-
Twin-rotary compressor minimizes vibration and sound
Heating and Cooling for Pools Up to 25,000 Gallons
-
Operates down to 14°F, extending your swimming season into colder months
-
Smart defrosting system detects frost and switches automatically to defrost mode
-
Soft start technology protects your electrical system during power-up
InverTitan 112K Heat Pump Construction and Components
-
Built-in Wi-Fi with app for easy remote control
-
Premium weatherproof casing protects against UV, corrosion, and harsh weather
-
Twisted titanium heat exchanger with 40% higher efficiency
-
Electronic expansion valve for optimized refrigerant flow and higher performance
Madimack InverTitan 112K BTU Heat Pump Specifications
Madimack InverTitan Brochure (PDF)
