Madimack InverElite 84K BTU Inverter Heat Pump (Heat/Cool)

The Madimack InverElite 84K BTU (SKU INVELITE084) is a premium inverter pool heat pump with heating and cooling modes for pools up to 20,000 gallons. COP range 6.3 to 15.0. Stepless DC inverter twin-rotary compressor. Twisted titanium heat exchanger. Operates 5 to 109 degrees F. Sound level 30.8 to 44.5 dB at 10 ft. Rated input 0.64 to 3.98 kW. Advised water flow 21.9 to 30.6 GPM. Dimensions 41.7 x 16.9 x 37.7 inches. Weight 209 lbs. Power supply 208 to 230V/1Ph/60Hz. Built-in Wi-Fi. Warranty: 25 years heat exchanger, 10 years compressor, 4 years parts and labor.

Turn Your Pool Into a Year-Round Retreat With the InverELITE V2: because your pool should feel exactly the way you want, any time you want.

The Madimack InverElite 84,000 BTU heater gives you powerful, efficient heating and cooling with whisper-quiet operation.

Backed by InverMAC technology, it automatically adjusts to your pool's needs, saving energy while keeping the water at your perfect temperature.

With premium weatherproof casing, built-in WiFi, and reliable performance even in cold weather, it's designed to make pool comfort simple and stress-free.

Madimack InverElite 84K vs 116K: Which Model Do You Need?

The InverElite series comes in two sizes. Both share the same inverter technology, operating temperature range, and warranty. The difference is output capacity and pool size:

• InverElite 84K (INVELITE084) — 84,000 BTU, for pools up to 20,000 gallons. This model.
• InverElite 116K (INVELITE1100) — 116,000 BTU, for pools up to 25,000 gallons. Higher input power (0.66 to 4.74 kW) and water flow (35.1 to 44.1 GPM).

If your pool is under 20,000 gallons, the 84K is the right fit. For pools between 20,000 and 25,000 gallons, step up to the 116K.

The InverElite 84K BTU Pool Heat Pump gives you quiet, efficient heating and cooling so your pool is always ready.

Powered by Madimack's InverMAC technology, it automatically adjusts to your pool's needs, saving energy while keeping the water at your perfect temperature.

• Smart inverter system reduces energy use once temperature is reached

• Stepless DC inverter controls both compressor and fan motor

• Up to 15.0 COP for double the energy savings

Madimack InverElite 84K Energy Efficiency and COP

• COP up to 15.0 — the highest in the Madimack heat pump lineup
• Stepless DC inverter controls both compressor and fan motor speed continuously
• Smart inverter reduces energy use once target temperature is reached
• Rapid full-speed heating at season start, then low-speed maintenance

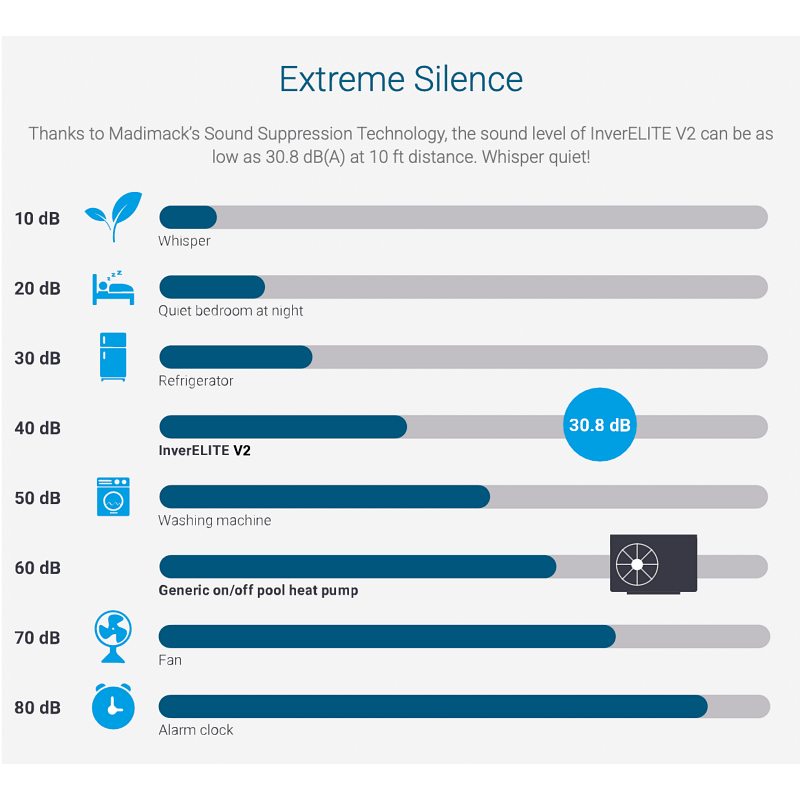

Madimack InverElite 84K Noise Level and Operating Modes

• Sound level as low as 30.8 dB(A) at 10 ft — quietest in the Madimack lineup
• Twin-rotary compressor minimizes vibration and noise
• Backward airflow system for smooth, efficient operation

Heating and Cooling for Pools Up to 20,000 Gallons

• Operates down to 5°F — nearly 100-degree operating range
• Heating and cooling modes in one unit
• Automatic defrost for reliable performance in cold weather
• Soft start protects your electrical system

InverElite 84K Heat Pump Construction and Components

• Built-in Wi-Fi with app for easy remote control
• Premium weatherproof casing — UV and corrosion resistant
• Twisted titanium heat exchanger — 40% higher efficiency
• Electronic expansion valve for optimized refrigerant flow

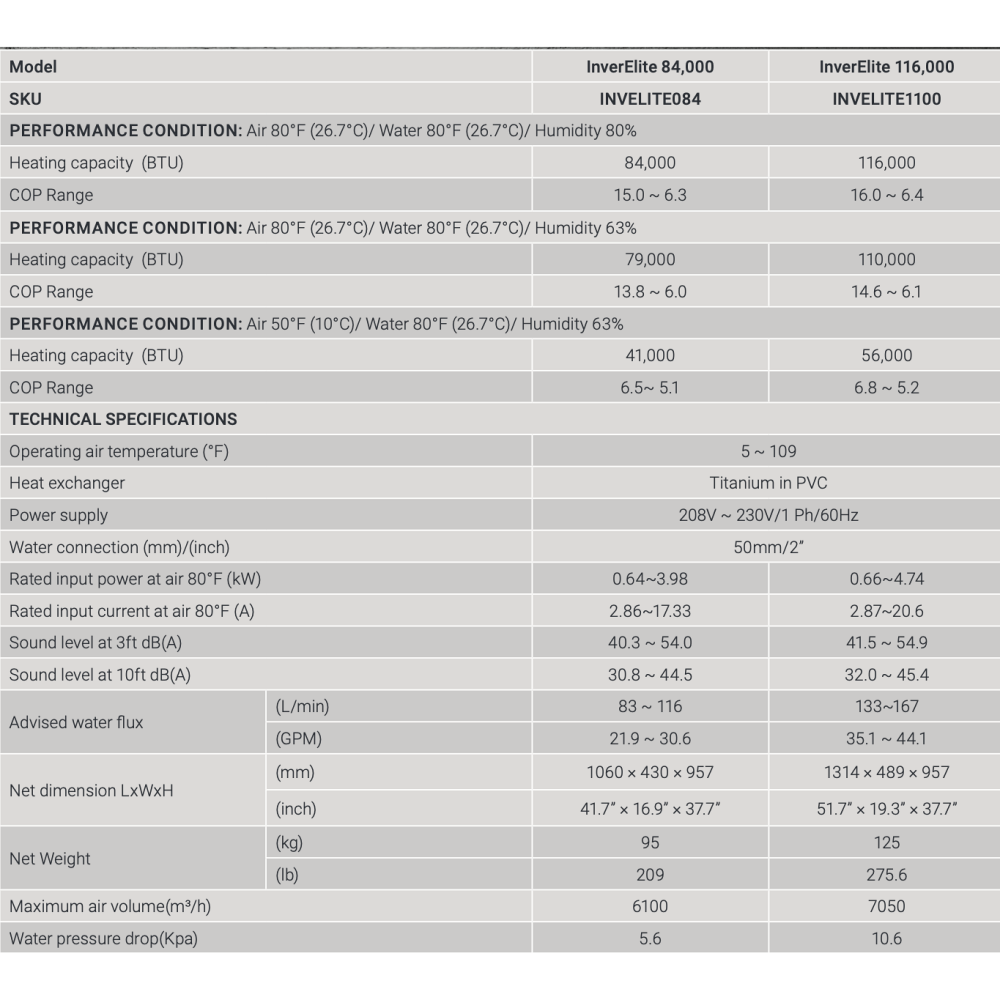

Madimack InverElite 84K BTU Heat Pump Specifications
