Madimack InverElite 116K BTU Inverter Heat Pump (Heat/Cool)

The Madimack InverElite 116K BTU (SKU INVELITE1100) is a premium inverter pool heat pump with heating and cooling modes for pools up to 25,000 gallons. COP range 6.4 to 16.0. Stepless DC inverter twin-rotary compressor. Twisted titanium heat exchanger. Operates 5 to 109 degrees F. Sound level 32.0 to 45.4 dB at 10 ft. Rated input 0.66 to 4.74 kW. Advised water flow 35.1 to 44.1 GPM. Dimensions 51.7 x 19.3 x 37.7 inches. Weight 275.6 lbs. Power supply 208 to 230V/1Ph/60Hz. Built-in Wi-Fi. Warranty: 25 years heat exchanger, 10 years compressor, 4 years parts and labor.

Set the temperature, forget the hassle...the InverELITE V2 116K BTU pool heater/cooler takes care of the rest.

The Madimack InverElite 116,000 BTU Heater delivers strong, efficient heating and cooling while running whisper quiet.

With a durable weatherproof casing, built-in WiFi, and dependable performance even in colder climates, it keeps pool comfort easy and worry-free.

Madimack InverElite 116K vs 84K: Which Model Do You Need?

The InverElite series comes in two sizes. Both share the same inverter technology, operating temperature range, and warranty. The difference is output capacity and pool size:

• InverElite 116K (INVELITE1100) — 116,000 BTU, for pools up to 25,000 gallons. This model.
• InverElite 84K (INVELITE084) — 84,000 BTU, for pools up to 20,000 gallons.

If your pool is between 20,000 and 25,000 gallons, the 116K is the right fit. Even for pools under 20,000 gallons, the 116K delivers 32,000 more BTU of heating capacity, which can meaningfully shorten heat-up time and improve cold-weather performance.

The InverElite 116K BTU Pool Heat Pump gives you quiet, efficient heating and cooling so your pool is always ready.

The InverElite 116K BTU Pool Heat Pump is built for larger pools and for owners who don't want to compromise on comfort or efficiency. It delivers powerful heating and cooling with whisper-quiet operation, so your pool is always ready without the noise or high energy bills.

• Strong 116,000 BTU output designed for bigger pools

• Inverter technology automatically adapts to real-time demand

• Full-speed heating when you first open your pool, then energy-saving mode to maintain temperature

• Delivers up to 16.0 COP, giving you more heat from less energy

Madimack InverElite 116K Energy Efficiency and COP

• COP up to 16.0 — the highest COP in the entire Madimack heat pump lineup
• Stepless DC inverter controls both compressor and fan motor speed continuously
• Smart inverter reduces energy use once target temperature is reached
• Rapid full-speed heating at season start, then low-speed maintenance

Madimack InverElite 116K Noise Level and Operating Modes

• Sound level as low as 32.0 dB(A) at 10 ft
• Twin-rotary compressor reduces wear, vibration, and noise
• Backward airflow system for smoother, more reliable performance
• Easy switching between heating and cooling modes

Heating and Cooling for Pools Up to 25,000 Gallons

• Operates down to 5°F — nearly 100-degree operating range
• Heating and cooling modes in one unit
• Quick defrosting system keeps performance steady in cold snaps
• Soft start protects your electrical system at startup

InverElite 116K Heat Pump Construction and Components

• Built-in Wi-Fi with mobile app for on-the-go management
• Premium weatherproof casing — UV and corrosion resistant
• Twisted titanium heat exchanger for higher heat transfer and durability
• Electronic expansion valve for optimized refrigerant flow

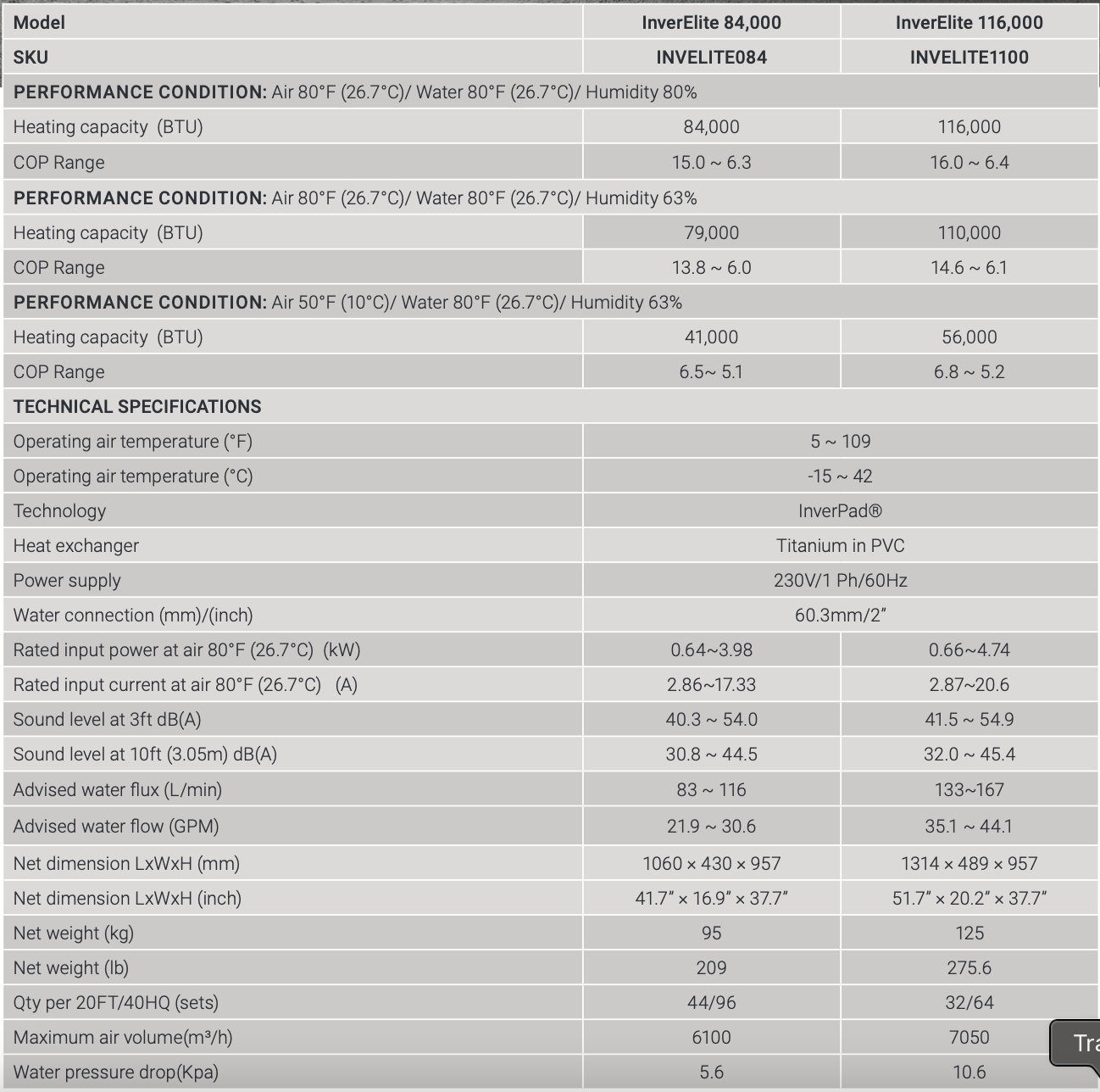

Madimack InverElite 116K BTU Heat Pump Specifications
