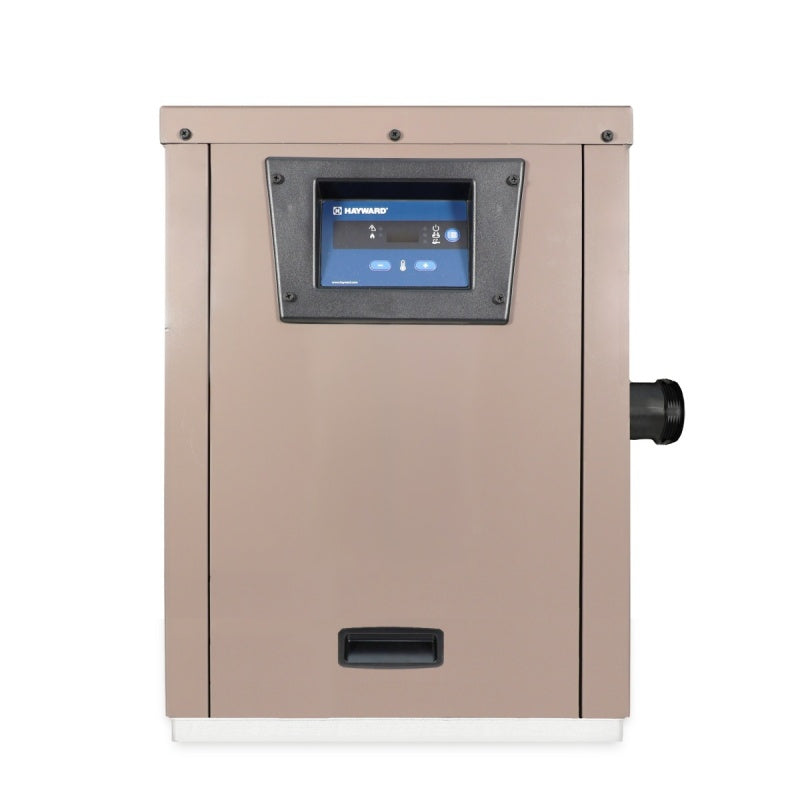

Hayward H135 Pool Heater Propane 135K BTU

The W3H135FDP is a propane pool heater built for above-ground pools and spas on Hayward's H-Series platform. It delivers 135,000 BTU/hr of heating output, operates in low ambient temperatures down to 40 degrees F, and uses a cupro nickel heat exchanger built to handle demanding pool water conditions. At 100 lb and 21.4" wide, it is the most compact model in the H-Series propane lineup - easy to position and straightforward to service.

W3H135FDP H-Series Above-Ground Propane Pool Heater - Specs and Features

The W3H135FDP runs on 120V single-phase, 60 Hz power and draws 5.5 circuit amps with a 15-amp maximum breaker. Unlike the larger in-ground H-Series models, this unit is 120V only - no field conversion to 240V. It supports water flow between 20 and 125 GPM and uses an induced draft combustion design. The cabinet measures 22.6" H x 21.4" W x 30.3" L and weighs 100 lb.

W3H135FDP Installation and Clearance Requirements

The W3H135FDP requires 6 inches of rear clearance and 12 inches on each side. The induced draft system controls combustion airflow internally, so no high-wind stack is required for outdoor installations. Before setting the unit, confirm your propane supply line sizing and regulator output match the fuel requirements - undersized supply lines will cause startup and performance problems regardless of how well everything else is installed. This model is designed for outdoor above-ground pool installations; confirm local code requirements for any semi-enclosed equipment areas.

H-Series Combustion System and Pool Sizing

The W3H135FDP uses an induced draft design that moves combustion air through the chamber at a controlled rate, keeping heat output consistent across varying outdoor conditions. Hayward's hydraulic design maintains uniform water velocity across all heat exchanger tubes, which produces faster heat-up times and reduced pump run time. At 135,000 BTU/hr, this unit is well matched for above-ground pools in the 5,000 to 15,000 gallon range and spas where fast warm-up is the priority. It can handle up to around 25,000 gallons in warm climates where heat loss is minimal, but the sweet spot is smaller water volumes where it heats quickly and efficiently.

Cupro Nickel Heat Exchanger and Water Chemistry Durability

The W3H135FDP uses a cupro nickel heat exchanger with Hayward's managed water flow design, which keeps the same water velocity through all tubes for consistent heat transfer. Cupro nickel handles salt water and aggressive pool chemistry better than standard copper alternatives - a meaningful spec even on above-ground pools running salt systems or higher sanitizer levels. Heat exchanger corrosion is one of the more common long-term failure points on gas heaters, so the material choice matters regardless of pool type.

W3H135FDP vs. In-Ground H-Series Models - Key Differences

The W3H135FDP is purpose-built for above-ground pools and differs from the in-ground Universal H-Series line in a few important ways. It runs on 120V only rather than the field-convertible 120/240V setup on models like the W3H150FDP. It uses an induced draft rather than forced draft combustion. And at 100 lb, it is significantly lighter than the next step up in the propane lineup. If your pool is in-ground or larger than 25,000 gallons, the W3H150FDP or W3H200FDP are the right direction.

Frequently Asked Questions

W3H135FDP Warranty, Manuals, and Product Literature

The W3H135FDP includes a 1-year parts warranty with no labor coverage. Review the installation manual before any work begins to confirm gas supply, venting, and clearance requirements are met at the site.

• Hayward H-Series 135K BTU Propane Pool Heater Installation and Operation Manual
• Hayward H-Series 135K BTU Propane Pool Heater Product Brochure
