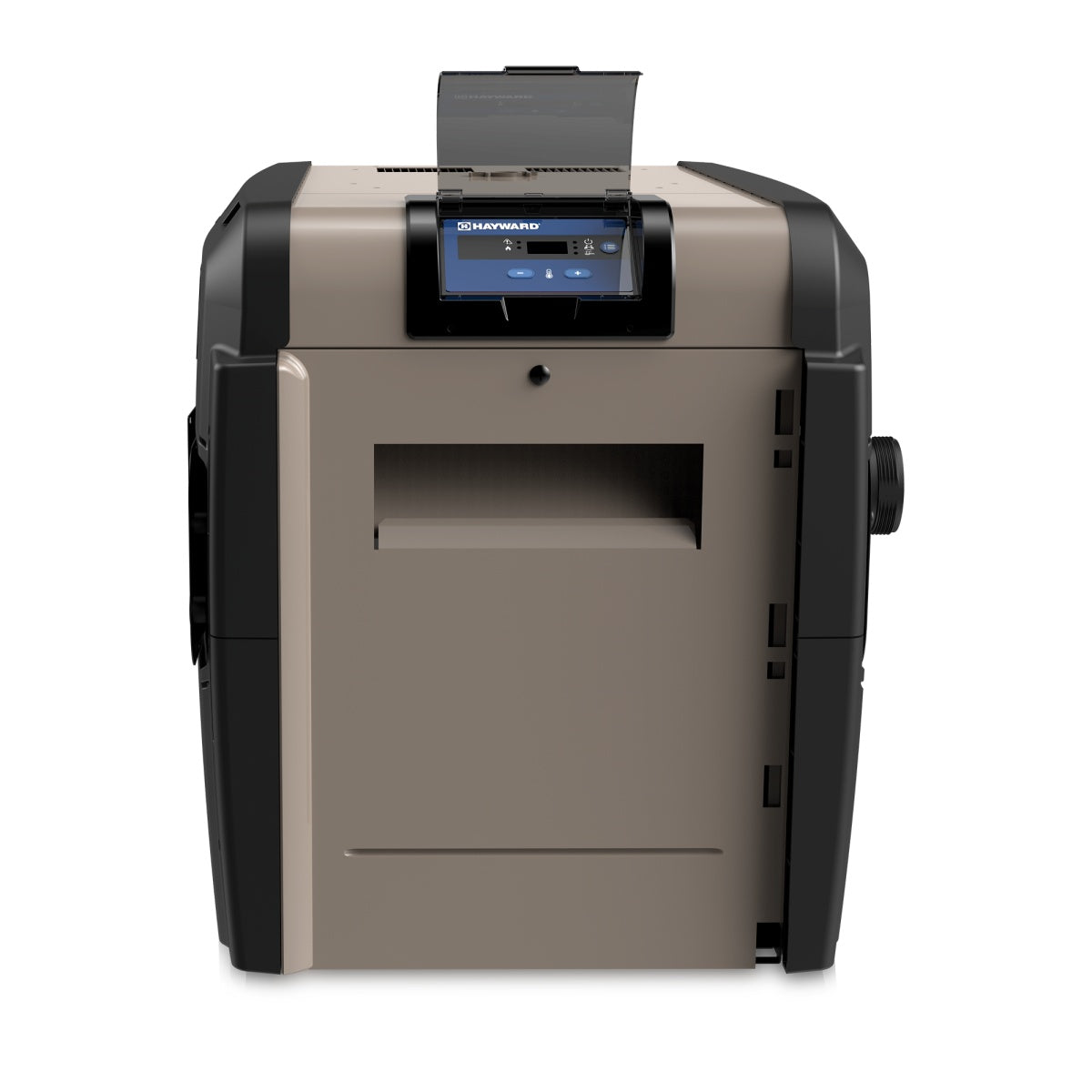

Hayward H150 Pool Heater Propane 150K BTU
✓ Hayward Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The W3H150FDP is a propane pool heater built for in-ground pools and spas on Hayward's Universal H-Series platform. It delivers 150,000 BTU/hr of heating output, operates in low ambient temperatures down to 40 degrees F, and connects via 2" x 2-1/2" CPVC union fittings that simplify new installs and replacement jobs. The forced-draft combustion system and low NOx design also qualify it for use in stricter air quality regions including SCAQMD Rule 1146.2 jurisdictions.
W3H150FDP Universal H-Series Propane Pool Heater - Specs and Features
The W3H150FDP ships factory-wired for 240V single-phase, 60 Hz power but can be field-converted to 120V by swapping a jumper on the ignition control board. It draws only 5.5 circuit amps with a 15-amp maximum breaker - a minimal electrical footprint for any gas heater. It supports water flow between 20 and 125 GPM and uses a cupro nickel heat exchanger rated for salt water and chemically demanding pool environments. At 135 lb and 19" wide, it is the smallest and lightest model in the Universal H-Series propane lineup - a practical advantage on tight equipment pads and straightforward replacement jobs.
W3H150FDP Installation and Clearance Requirements
The W3H150FDP requires 6 inches of rear clearance and 12 inches on each side. The forced-draft design eliminates the need for a high-wind stack, which simplifies positioning in enclosed or semi-enclosed equipment areas. Plumbing connects via 2" x 2-1/2" CPVC union fittings. Before setting the pad, confirm your propane supply line sizing and regulator output match the unit's fuel requirements - undersized supply lines will cause startup and performance issues regardless of how well everything else is installed.
Universal H-Series Combustion System and Pool Sizing

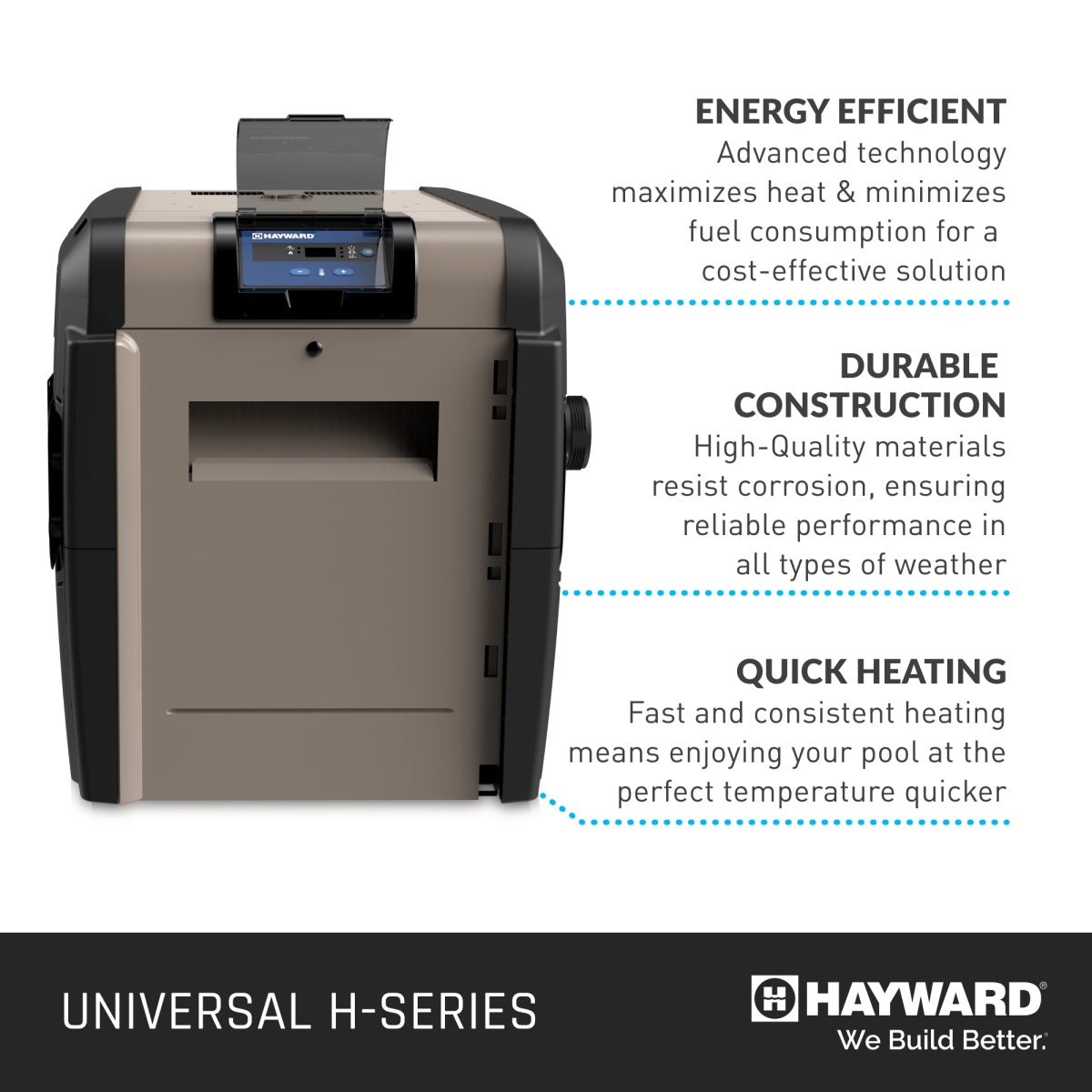

The Universal H-Series platform uses a forced-draft combustion design that pushes air through the chamber at a controlled rate regardless of wind conditions. That removes stack dependency and keeps combustion consistent across installation environments. Hayward's hydraulic design maintains uniform water velocity across all heat exchanger tubes, which produces faster heat-up times and reduced pump run time - Hayward rates that efficiency advantage at up to 18% compared with less efficient gas heater designs. At 150,000 BTU/hr, this unit is well matched for pools in the 10,000 to 35,000 gallon range, with the upper end being most realistic in warmer climates where the pool holds heat well. For larger pools or faster recovery times, step up to the W3H200FDP or W3H250FDP.
Cupro Nickel Heat Exchanger and Salt Water Resistance
The W3H150FDP uses a standard cupro nickel heat exchanger, which handles salt water and aggressive pool chemistry better than standard copper alternatives. For pools running salt chlorine generators or elevated sanitizer levels, this is a meaningful spec - heat exchanger corrosion is one of the more common failure points on gas heaters over time. The cupro nickel material also holds up well in coastal installs where airborne salt adds to the chemical load on the unit.
W3H150FDP vs. Larger H-Series Propane Models - Choosing the Right BTU
The W3H150FDP shares the same Universal H-Series platform, electrical requirements, and clearances as the W3H200FDP, W3H250FDP, and W3H400FDP - the difference is output and physical size. The 150K model is the right fit for smaller pools, standalone spas, or any install where footprint and weight matter as much as heating capacity. If your site runs natural gas instead of propane, look at the W3H150FDN.
| Specification | Value |
|---|---|
| Brand | Hayward |
| Model / SKU | W3H150FDP |
| Series | Universal H-Series |
| Fuel Type | Propane (LP) |
| Application | New Construction, Renovation, Aftermarket |
| Pool Type | In Ground |
| Heating Capacity | 150,000 BTU/hr |
| Kilowatts | 44 kW |
| Heat Exchanger | Standard cupro nickel |
| Low NOx | Yes |
| Cooling Capability | No |
| Low Ambient Operation | Yes |
| Minimum Operating Temperature | 40 degrees F |
| Voltage | 120/240V (ships 240V; field-convertible to 120V) |
| Phase | Single |
| Frequency | 60 Hz |
| Circuit Amps | 5.5 |
| Maximum Breaker Size | 15 Amps |
| Water Flow Rate | 20 to 125 GPM |
| Plumbing Connections | 2" x 2-1/2" CPVC union |
| Rear Clearance | 6" |
| Side Clearance | 12" |
| Product Dimensions (H x W x L) | 24" x 19" x 29.5" |
| Product Weight | 135 lb |
| Shipping Dimensions | 30.6" x 32.8" x 33.3" |
| Shipping Weight | 150 lb |
| Refrigerant | No |
| Active Defrost | No |
| Boost Mode | No |
| Silent Mode | No |
| Channel | Open Line |
| GTIN | 610377387200 |
Frequently Asked Questions
Is this heater for propane or natural gas?
Propane. The W3H150FDP is configured for LP (liquefied propane) only. If your site runs natural gas, you need the W3H150FDN instead. The two are not interchangeable without a conversion, which should be done by a licensed technician.
What size pool can a 150,000 BTU heater handle?
At 150,000 BTU/hr, this unit is well matched for pools in the 10,000 to 35,000 gallon range. In warm climates like Florida where pools hold heat well, the upper end of that range is very achievable. It also works well as a dedicated spa heater. For larger pools or faster recovery, step up to the W3H200FDP or W3H250FDP.
What type of pool is this heater made for?
In-ground pools and spas. It works on new construction, renovation, and aftermarket replacement jobs, and the CPVC union connections make it a practical swap for older H-Series units already plumbed with those fittings.
What electrical service does the W3H150FDP require?
It ships wired for 240V single-phase, 60 Hz with a 15-amp maximum breaker, drawing only 5.5 circuit amps. It can be field-converted to 120V by swapping a jumper on the ignition control board - see the installation manual for that procedure. Either way, the electrical draw is minimal since most of the energy comes from the propane supply, not the grid.
Why does the cupro nickel heat exchanger matter for salt pools?
Salt water is more corrosive to standard copper than to cupro nickel alloy. On a gas heater that runs at high temperatures, exchanger corrosion accelerates faster than on heat pumps, so the material choice has real long-term impact. Cupro nickel holds up better in salt systems and in pools that run higher sanitizer levels.
Does this heater need a special vent stack or chimney?
No. The forced-draft system pushes combustion air through the chamber mechanically, so performance is not dependent on wind or stack height. Indoor and semi-enclosed installations still require proper venting - see the installation manual linked below.
Does the W3H150FDP meet low NOx requirements?
Yes. It meets Low NOx clean air standards including SCAQMD Rule 1146.2, which applies in parts of Southern California and some other air quality districts. If your municipality requires low NOx compliance for pool heaters, this model qualifies.
W3H150FDP Warranty, Manuals, and Install Documentation
The W3H150FDP includes a 1-year parts warranty. Review the installation manual before any work begins to confirm gas supply, venting, and clearance requirements are met at the site.
