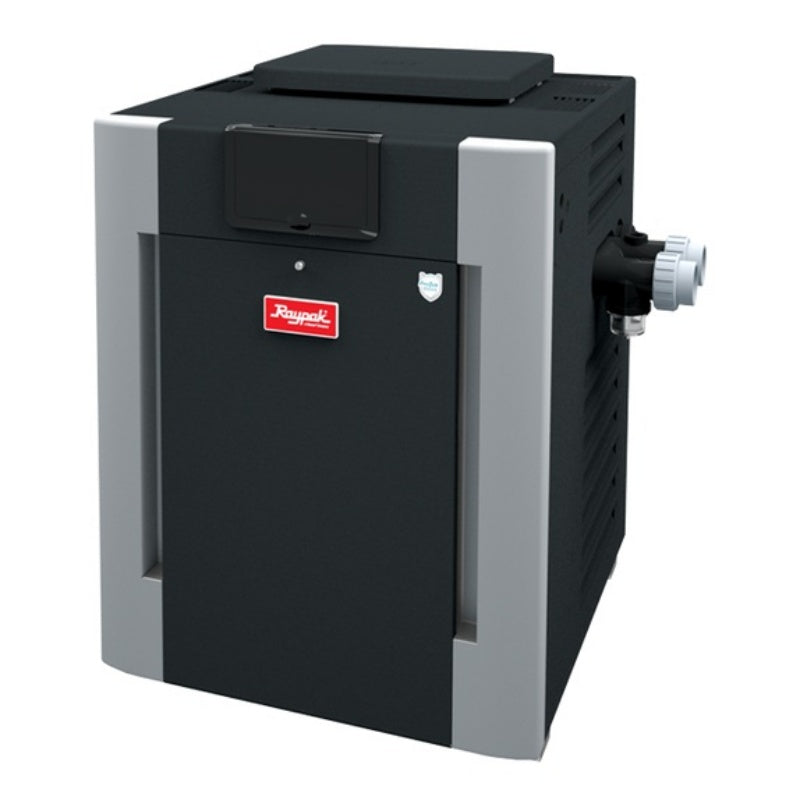

Raypak R206A Liquid Propane Electric Pool Gas Heater 200K BTU 009224
✓ Raypak Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The Raypak R206A (009224, P-R206A-EP-C) is a 199,500 BTU liquid propane pool heater for residential in-ground and above-ground pools at elevations from sea level to 2,000 feet. It is the entry point of Raypak's full-size Digital series, rated at 82% thermal efficiency with the complete Digital control platform — LCD display, on-board diagnostics, flame strength indicator, on-board voltmeter, and run-time tracking. A stationary propane tank, two-stage regulator, and licensed gas contractor are required.
Gas heater sizing reflects recovery speed — how fast the heater raises pool temperature from cold — not steady-state energy demand. Cooler climates, shaded pools, or pools without a solar cover should size conservatively.
Raypak R206A 009224 - Pool Size by Climate
| Climate | Recommended Pool Size |
|---|---|
| Warm climate (moderate heat loss) | Up to 20,000–25,000 gallons |
| Cooler climate or high heat-loss pool | 15,000–18,000 gallons |
These figures reflect heat-up speed from a cold pool, not steady-state maintenance demand. A solar cover between swims reduces heat loss and propane consumption at any pool size.
Raypak R206A 009224 - Key Features
The Digital control board provides a plain-English LCD readout of water temperature and target setpoint, on-board self-diagnostics in readable text, a flame strength indicator on every ignition event, a run-time and cycle counter for service scheduling, and an on-board voltmeter that confirms correct wiring at installation and monitors supply voltage during operation.
Ignition is intermittent spark-to-pilot: the pilot fires only when the thermostat calls for heat, conserving propane between cycles. A soft-opening gas valve prevents hard-start surges. The self-adjusting stainless steel burner compensates for propane supply pressure variation to maintain a stable, clean flame. Minimum propane supply pressure at the heater inlet is 11" W.C. dynamic; a two-stage regulator is required.
The copper integral-fin-tube heat exchanger uses single-piece extruded copper with stainless steel tube sheets. Capron resin polymer headers create a fully nonferrous waterway, preventing rust staining. The Unitherm Governor keeps inlet water above 105°F to suppress condensation and scale. The automatic internal bypass valve manages flow across varying pump speeds. The ProTek Shield module provides replaceable sacrificial corrosion protection at the exchanger inlet, compatible with chlorinated and salt water pools. Every unit ships factory test-fired.
Propane Supply Requirements
Standard 20-lb portable cylinders cannot sustain the inlet pressure or flow for a 199,500 BTU/hr load. A stationary tank of 250 gallons or larger is commonly recommended when the pool heater is the primary propane demand. Your licensed propane contractor must size the tank, regulator, and supply line for your site. Gas connection is 3/4" NPT.
Raypak R206A 009224 - Full Specifications
| Specification | Value |
|---|---|
| Model Number | P-R206A-EP-C |
| Part / SKU | 009224 |
| BTU Input Rate | 199,500 BTU/hr |
| Thermal Efficiency | 82% |
| Fuel Type | Liquid Propane (LP) |
| Elevation Rating | 0 to 2,000 ft above sea level |
| Min. Gas Supply Pressure | 11" W.C. dynamic at heater inlet; two-stage regulator required |
| Gas Connection | 3/4" NPT |
| Ignition | Electronic spark-to-pilot, intermittent with flame supervision |
| Controls | Raypak Digital — LCD display, self-diagnostics, on-board voltmeter, flame strength indicator, run-time and cycle meter |
| Voltage | 120 VAC (field-convertible to 240 VAC), single-phase |
| Breaker | 15 amp dedicated circuit |
| Electrical Entry | Left or right side (field selectable) |
| Heat Exchanger | Integral copper fin-tube with stainless steel tube sheets |
| Header Material | Capron resin polymer — rust-stain free, fully nonferrous waterway |
| Burner | Stainless steel, self-adjusting for gas pressure variation |
| ProTek Shield | Included (replaceable sacrificial corrosion protection) |
| Condensation Protection | Unitherm Governor and automatic internal bypass valve |
| Max Water Flow | 125 GPM |
| Plumbing Connection | 2" slip-fit CPVC (supplied) |
| Compatible Pool Types | Above-ground and in-ground; fiberglass, vinyl, gunite; chlorinated and salt water |
| Pool Size Estimate | Up to 20,000–25,000 gal (warm climate); 15,000–18,000 gal (cooler climates) |
| Venting | Category I atmospheric; outdoor stackless top included; indoor stack kit 009838 required separately |
| Remote Control | 2-wire or 3-wire; compatible with most major pool automation systems |
| Water Chemistry | Free chlorine max 5 ppm; pH 7.2–7.8; salt max 4,500 ppm |
| Shipping Weight | Approx. 187 lbs (liftgate delivery recommended) |
| Low NOx | Not Low NOx rated — not compliant for SCAQMD-restricted California counties |
| Certifications | CSA certified to ANSI Z21.56 |
Raypak R206A 009224 - Warranty
| Coverage | Term | Conditions |
|---|---|---|
| Parts — Standard Residential | 2 years | Registered with installation receipt at raypak.com |
| Parts — New Construction (Builder) | 3 years | Registered within 90 days of installation with receipt |
| Parts — Without Registration | 1 year | No registration or missing receipt |
| Labor | Not covered | Residential labor is owner's responsibility |
| Installation Requirement | Required | Must be installed by a licensed contractor per all local codes |
Exclusions: water chemistry damage, freeze damage, and units installed above 2,000 ft elevation. Register at raypak.com immediately after installation.
Raypak R206A 009224 - Installation Documents
- Raypak R206A Digital Pool Heater — Product Brochure (6000.75)
- Raypak R206A Digital Pool Heater — Limited Warranty (100-10000378)
Frequently Asked Questions - Raypak R206A Propane Pool Heater 009224
What pool size is the R206A 009224 right for?
In warm climates, up to approximately 20,000 to 25,000 gallons. In cooler climates or pools with high evaporation, wind exposure, or no solar cover, size down to 15,000 to 18,000 gallons for comfortable recovery. Both above-ground and in-ground pools are compatible.
What propane tank and supply do I need?
Standard 20-lb portable cylinders cannot sustain the pressure or flow required for a 199,500 BTU/hr load. A stationary tank of 250 gallons or larger is commonly recommended. The heater requires a minimum dynamic supply pressure of 11" W.C. at the inlet and a two-stage regulator. Your licensed propane contractor must size the tank, regulator, and supply line for your site and seasonal conditions.
What are the electrical requirements?
The 009224 ships configured for 120 VAC, single-phase, and can be field-converted to 240 VAC without additional components. It operates on a standard 15-amp dedicated circuit. Conduit can enter from either the left or right side of the cabinet. All electrical work must be performed by a licensed electrician per local code.
Is this a heat-only model?
Yes. The R206A cannot cool pool water. Gas heaters deliver fast, on-demand heating regardless of ambient air temperature. If cooling is also needed, a heat pump with an integrated cooling mode is the appropriate addition.
How does the R206A compare to the step-up R266A (009225)?
The R206A produces 199,500 BTU/hr and suits pools up to approximately 20,000 to 25,000 gallons. The R266A (009225) produces 266,000 BTU/hr — roughly 33% more — and handles pools in the 25,000 to 35,000 gallon range. Both share the same cabinet footprint, digital controls, and 2" CPVC plumbing connections, so stepping up does not require pad or plumbing changes. If your pool is at the upper boundary of the R206A range and fast recovery matters, the R266A is worth considering.
What are the warranty terms?
Professional installation by a licensed contractor is required. Standard residential with registration and receipt: 2 years parts. New construction registered within 90 days with receipt: 3 years parts. Without registration: 1 year. Labor is not covered under residential warranty. Water chemistry damage, freeze damage, and units installed above 2,000 ft elevation are excluded. Register at raypak.com immediately after installation.
