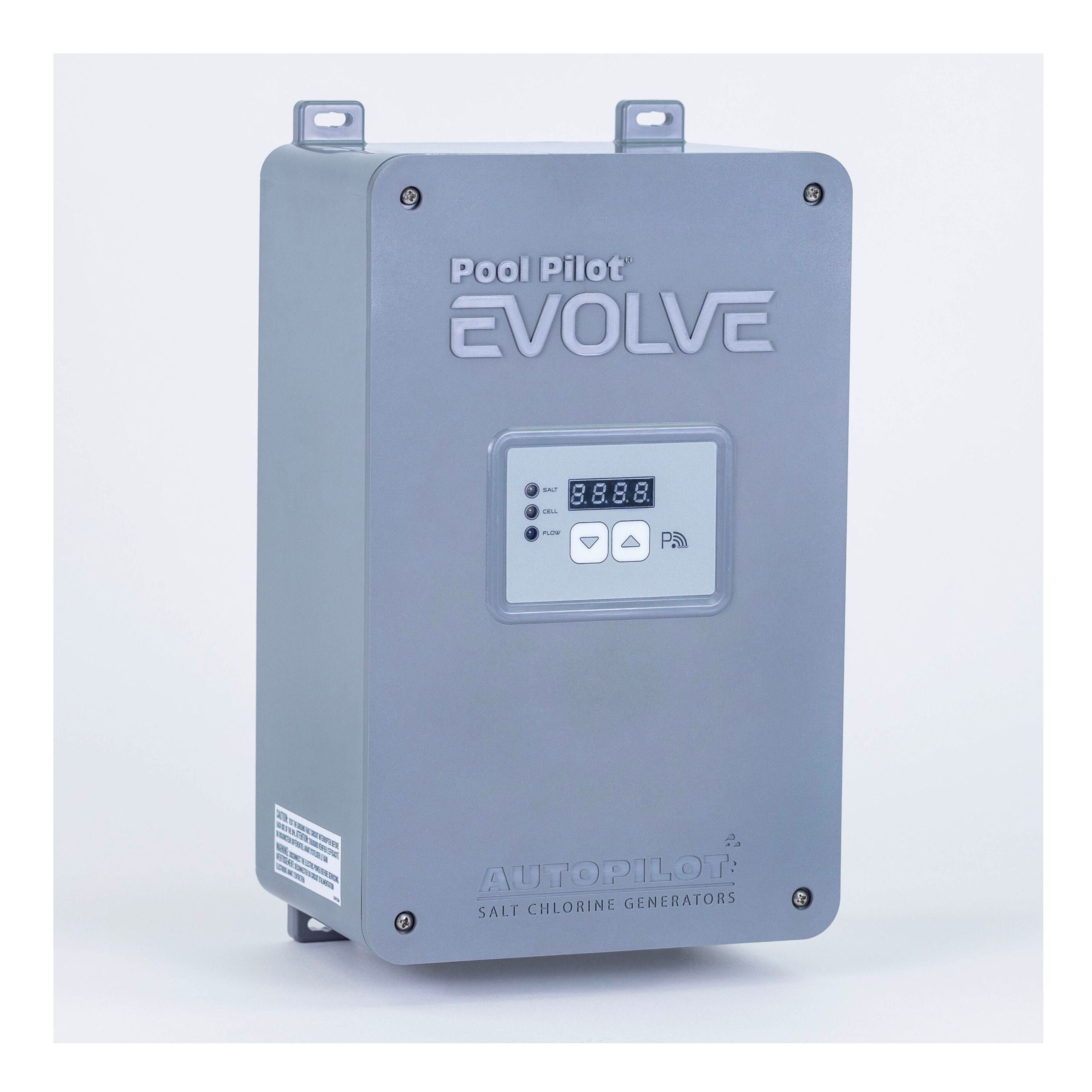

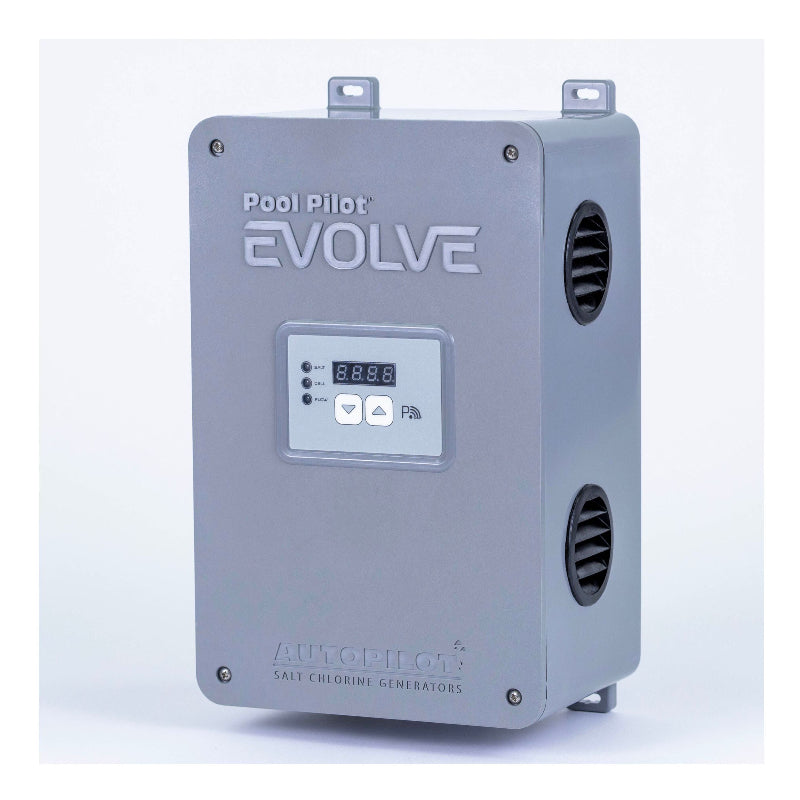

Pool Pilot Evolve System with PPM5 Manifold CPB0009A

SKU: CPB0009A | AutoPilot / AquaCal | Pools up to 70,000 gallons

Pool Pilot Evolve System with PPM5 Manifold CPB0009A: Maximum Output for Pools Up to 70,000 Gallons

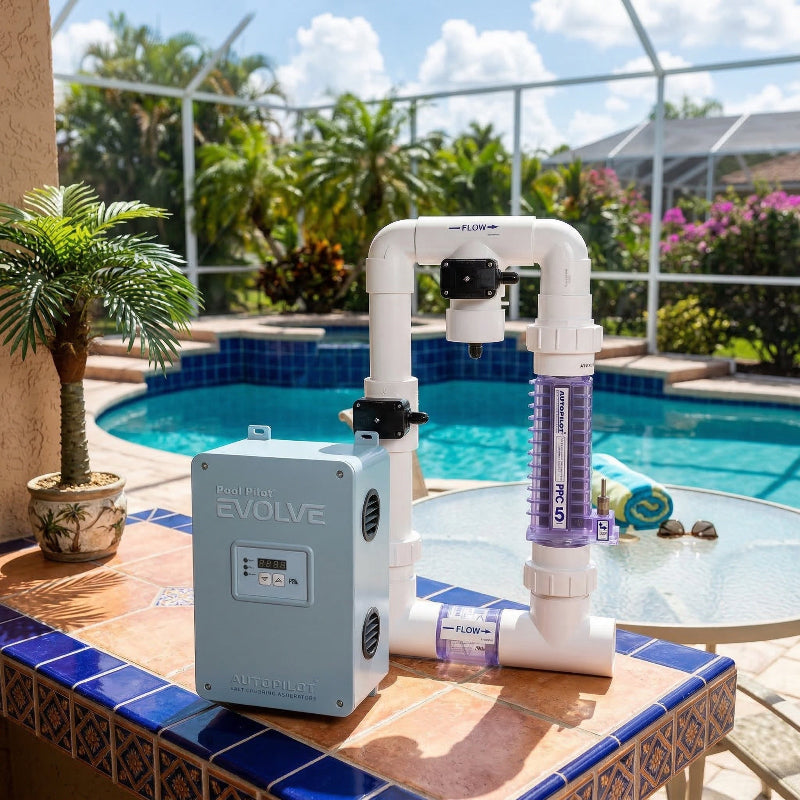

The Pool Pilot Evolve System with PPM5 Manifold (CPB0009A) is the top-of-range configuration in the AutoPilot Evolve line, rated for pools up to 70,000 gallons. It is the right choice for estate pools, large residential properties, and light commercial installations where sustained chlorine demand is high and cell longevity is a priority. The PPM5 cell generates the same free chlorine output as the smaller manifold configurations while running at a fraction of its total capacity, which means less heat, less stress on the cell plates, and a significantly longer service life between replacements.

The system runs on dissolved pool salt at around 3,000 ppm - well below any detectable taste and about 1/10 the salinity of the ocean. Even in a large-volume pool, swimmers experience the same soft, clear water and freedom from red eyes, itchy skin, and chemical odor that the Evolve line is known for. Patented temperature compensation and automatic cell cleaning keep the system performing consistently across seasons.

CPB0009A Pool Pilot Evolve PPM5 System: Automation at Scale with ChemSync

At 70,000 gallons, manually managing water chemistry is a significant ongoing task. The CPB0009A works as a standalone salt chlorinator, but pairing it with the AutoPilot ChemSync water chemistry controller removes that task almost entirely. ChemSync requires a compatible salt chlorinator to operate; the Evolve fills that role. The Evolve does not require ChemSync.

With ChemSync in the system, ORP and pH are tracked in real time. Muriatic acid is dosed automatically to hold pH in the 7.2 to 7.8 range, and the Evolve is directed to increase or decrease chlorine output based on live water conditions. For a large pool that sees regular use, that level of automation protects both the water quality and the equipment.

AOP and the Pool Pilot Evolve PPM5: Keeping a Large Pool Balanced with Less Chemistry

Large pools accumulate chloramines faster due to higher total bather load and greater water volume. An AOP system like Clear Comfort addresses this at the source - continuously oxidizing chloramines back into free chlorine so ORP stays stable and the Evolve cell is not being asked to constantly compensate. For a pool of this size, AOP is not just a performance upgrade; it is a meaningful reduction in the total amount of salt, acid, and cell runtime consumed over a season.

Pool Pilot Evolve CPB0009A vs. CPB0006, CPB0007A, CPB0008A: Full PPM5, PPM1, PPM3, and PPM4 Manifold Comparison

All models share the same power center, electrical specs (110v or 220v, 50/60Hz), and certifications (NSF/ANSI/CAN 50, ETL Listed, CE). The PPM5 is the top-of-range manifold and the right choice for pools over 50,000 gallons, estate properties, or any installation where maximum cell longevity and sustained output capacity matter most. *Use in conjunction with an AOP system can extend cell life significantly, to 7-9+ years.

CPB0009A Pool Pilot Evolve PPM5 Manifold System: Manual, Brochure, and Warranty

The Pool Pilot Evolve is covered by AquaCal AutoPilot's National Chlorinator Warranty for residential installations purchased through an authorized dealer:

• Power center and parts: 3 years
• Labor: 3 years (note: a trip fee applies for service calls in years 2 and 3)
• Replacement cell: 1 year

• Pool Pilot Evolve Installation Manual
• Pool Pilot Evolve Brochure
• Pool Pilot Evolve Brochure (Español)
• Pool Pilot Evolve Warranty
