Pool Pilot Evolve System with PPM3 Manifold CPB0007A

AutoPilot Pool Pilot Evolve Salt Chlorine Generator: Complete System for Pools Up to 40,000 Gallons

The Pool Pilot Evolve is AutoPilot's flagship residential salt chlorination system. It converts dissolved pool salt into free chlorine continuously, eliminating the need to handle, store, or dose tablet or liquid chlorine during normal operation. Pool salinity runs around 3,000 ppm, well below any detectable taste threshold and roughly one-tenth the concentration of seawater. The result is softer, gentler water with no chlorine odor.

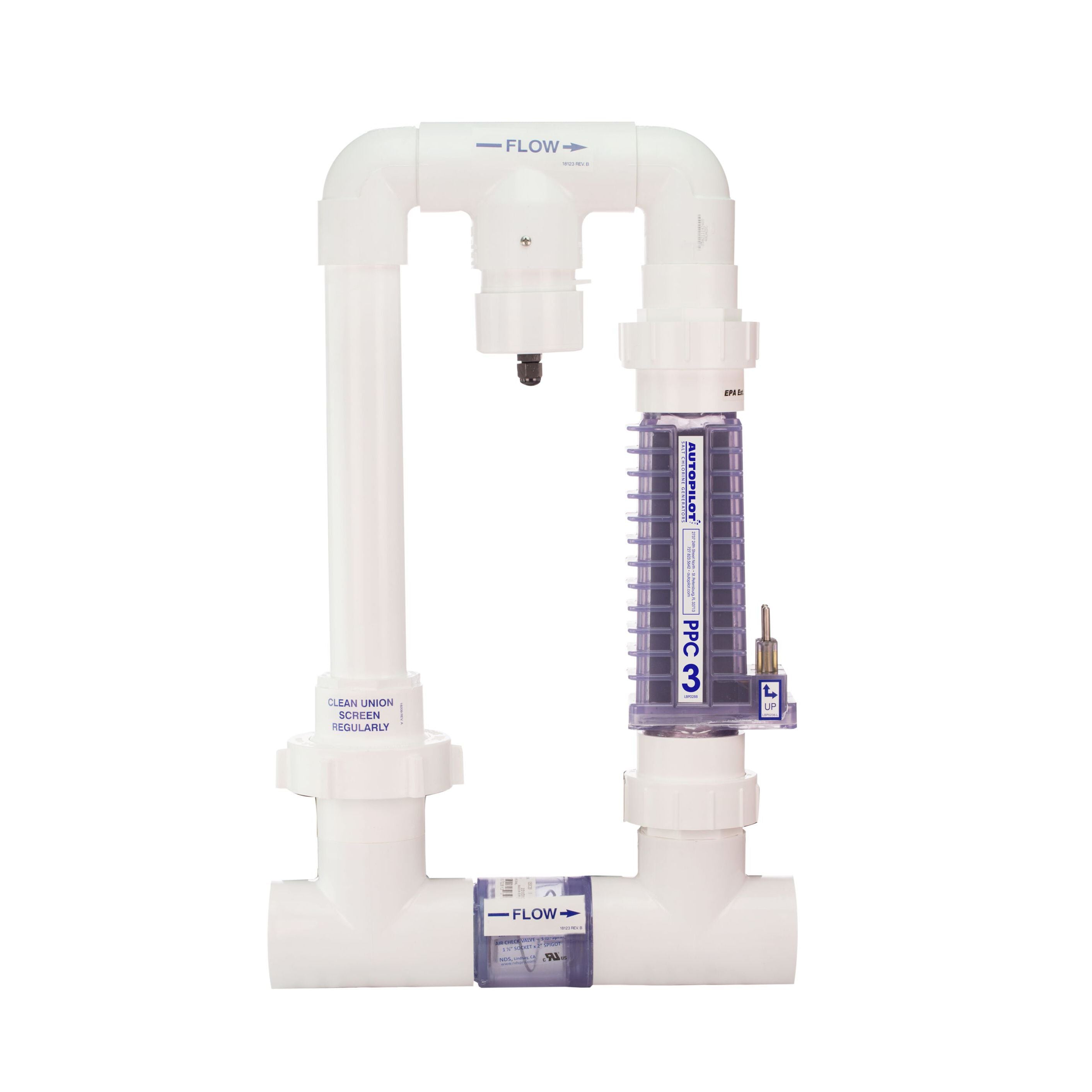

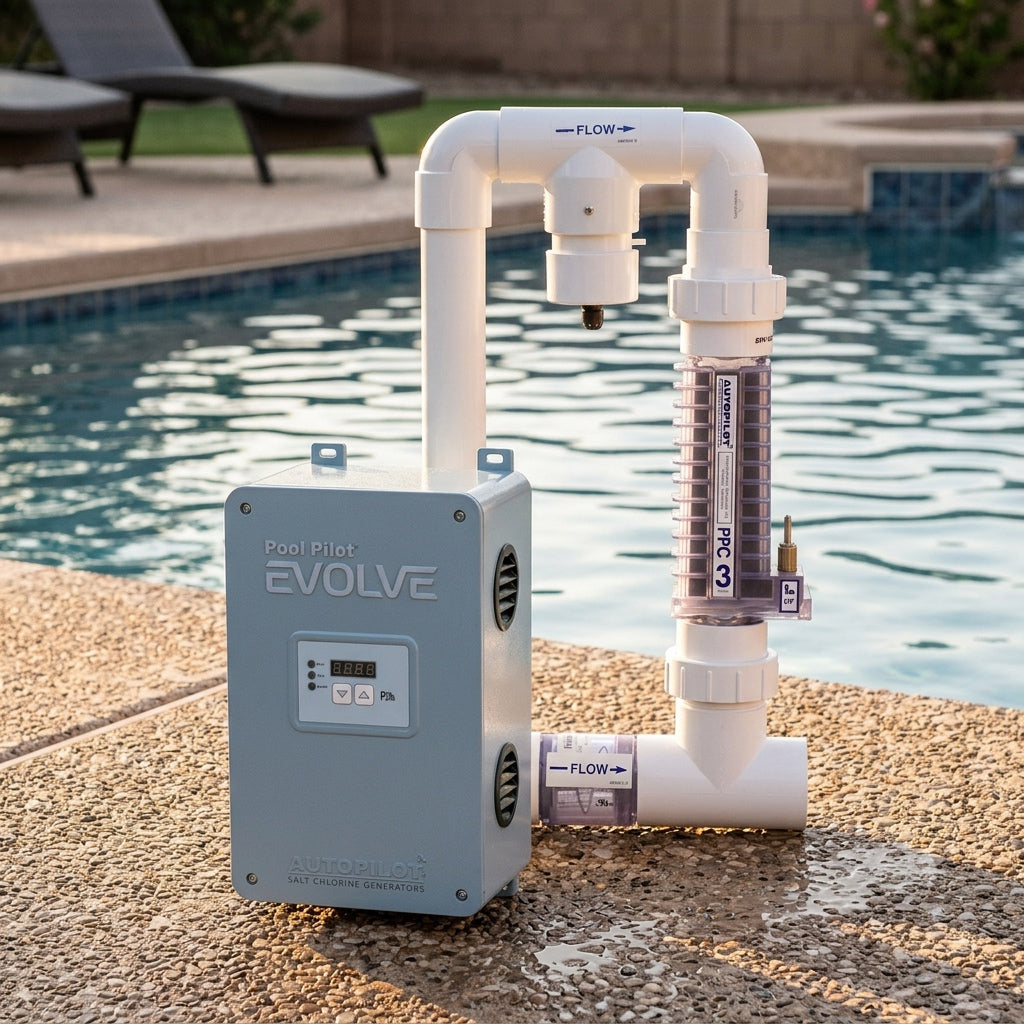

This listing is the CPB0007A kit: the Evolve power center paired with the PPM3 bypass manifold and PPC3 cell, rated for pools up to 40,000 gallons. The PPM3 cell is larger than the PPC1 in the CPB0006 (PPM1, 30,000 gallons), which means it produces the same amount of free chlorine while running at a lower percentage of its total output capacity. That lower workload translates directly into a longer cell lifespan and fewer replacement cycles, making the CPB0007A a strong choice even for pools under 40,000 gallons where cell longevity is a priority. For larger pools, the same Evolve power center is available with the CPB0008 (PPM4, 50,000 gallons) and CPB0009 (PPM5, 70,000 gallons).

What Makes the AutoPilot Evolve Different: The Bypass Manifold

Most salt systems use a straight inline pipe design. The AutoPilot Evolve uses a patented vertical bypass manifold, and the difference matters in practice.

• Variable speed pump compatible - The manifold operates at flow rates from 15 GPM to 100 GPM. Many competing systems have a narrow operating window (Pentair IntelliChlor, for example, requires 25 to 80 GPM) that prevents the pump from running at its most efficient low speeds. The Evolve manifold works at the slow speeds where variable speed pumps actually save money on electricity.
• Built-in strainer screen - An integrated strainer sits upstream of the cell, catching debris before it reaches the electrode blades. No other manufacturer includes this as a standard feature.
• True tri-sensor salt reading - A dedicated flow, temperature, and salt sensor reads salt concentration independently of the cell itself. Hayward and Pentair systems estimate salt based on cell electrical performance, which becomes increasingly inaccurate as the cell ages and often prompts unnecessary cell replacements. The AutoPilot reads salt directly, so the reading stays accurate through the cell's entire service life.
• Vertical orientation for safety - The vertical design allows hydrogen gas produced during electrolysis to dissipate naturally. Horizontal cell installations can trap gas, creating a hazard that the vertical AutoPilot manifold eliminates by design.

AutoPilot Pool Pilot Evolve Key Features

• Patented temperature compensation - Automatically adjusts chlorine output based on water temperature above or below 77°F. In cooler water, the cell produces less chlorine; in warmer water, it produces more. Output stays matched to actual sanitization demand without manual seasonal adjustment.
• Smart shutoff - If salt drops below approximately 2,300 ppm, the unit shuts down safely and sends an alert through the PoolSync app. Running a cell at very low salt levels damages the electrode coating; the shutoff protects the cell from that damage.
• 24-hour boost cycle - One-touch boost runs the cell at maximum output for 24 hours to handle heavy bather loads, post-storm recovery, or early-season startup, then returns automatically to the normal output setting.
• PoolSync app - Remote monitoring and control over Wi-Fi. Users with AquaCal TropiCal or SuperQuiet inverter heat pumps have the antenna built in; the Evolve connects directly to that network without a separate add-on.
• Dual voltage - Accepts 110V or 220V input on the same unit. Operates on 50/60 Hz.
• Wide operating range - Runs at flow rates as low as 15 GPM and water temperatures up to 104°F.
• NSF/ANSI/CAN 50 certified, ETL listed - Independently certified for chlorine delivery and electrical safety.

AutoPilot Pool Pilot Evolve Specifications

Choosing the Right Pool Pilot Evolve: PPM1, PPM3, PPM4, or PPM5 Manifold

All four Evolve configurations share the same power center, electrical specs, and certifications. The only difference is the manifold and cell size, which determines the maximum pool volume the system can handle.

The PPM3 manifold is a good choice for pools over 30,000 gallons, and for anyone prioritizing longer cell life even if the pool is under 40,000 gallons. The larger cell runs at a lower duty cycle, which extends its service life relative to the PPM1. With an AOP system in the circuit, cell life can extend further to 7 to 9+ years.

Using the Pool Pilot Evolve with ChemSync and AOP

The Evolve is a complete standalone system. Run it on its own and manage water chemistry manually, or pair it with additional automation.

The AutoPilot ChemSync water chemistry controller adds ORP and pH sensing and doses muriatic acid automatically to maintain pH in the 7.2 to 7.8 range. ChemSync tells the Evolve to produce more or less chlorine based on real-time oxidation readings. The Evolve is required for ChemSync to function; ChemSync is optional for the Evolve.

Adding an advanced oxidation system breaks down chloramines back into free chlorine, which keeps ORP steady and reduces the duty cycle on the Evolve cell. Lower duty cycle means the cell lasts longer and the ChemSync uses less acid to hold pH in range. The three systems together form a fully automated water management loop with minimal manual intervention.
