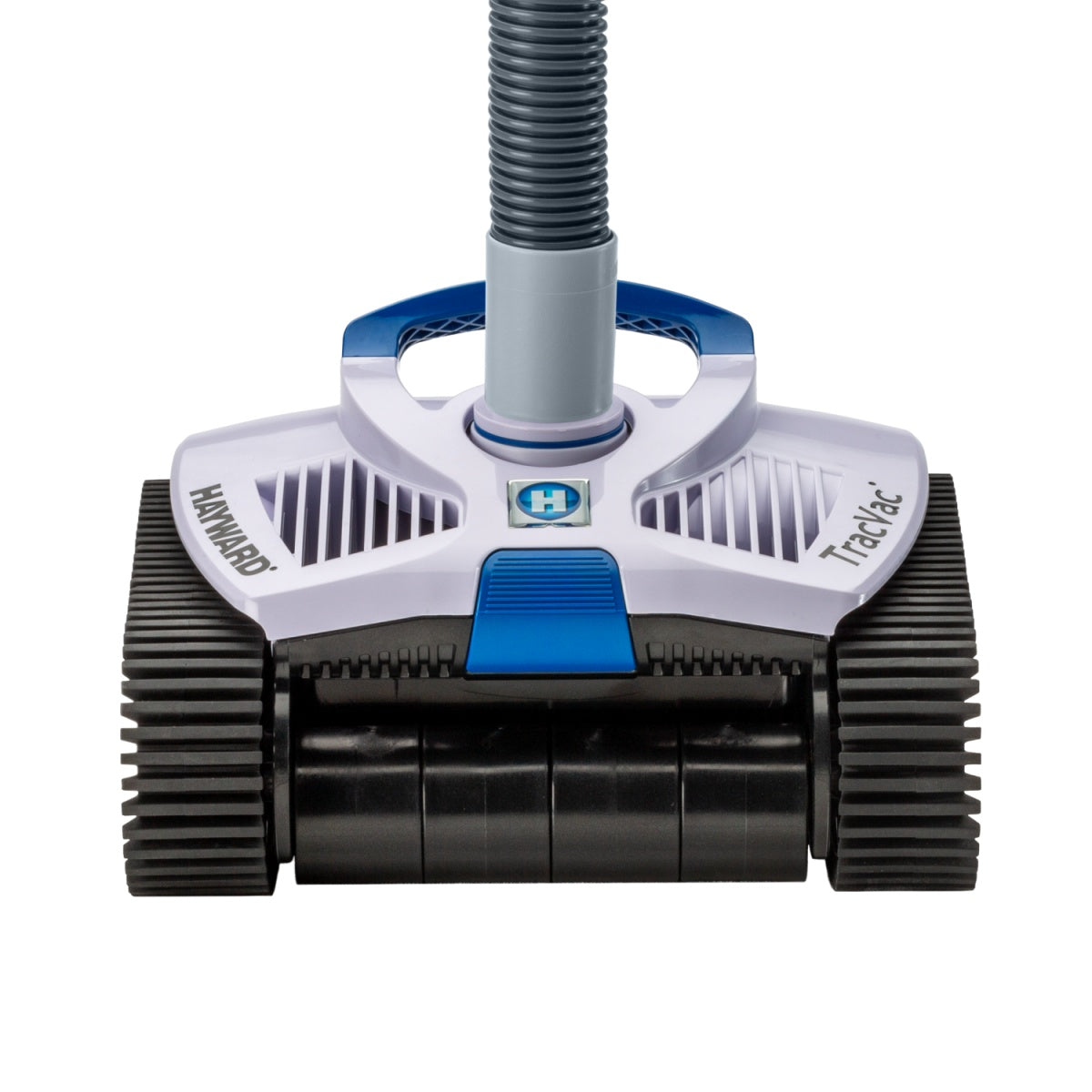

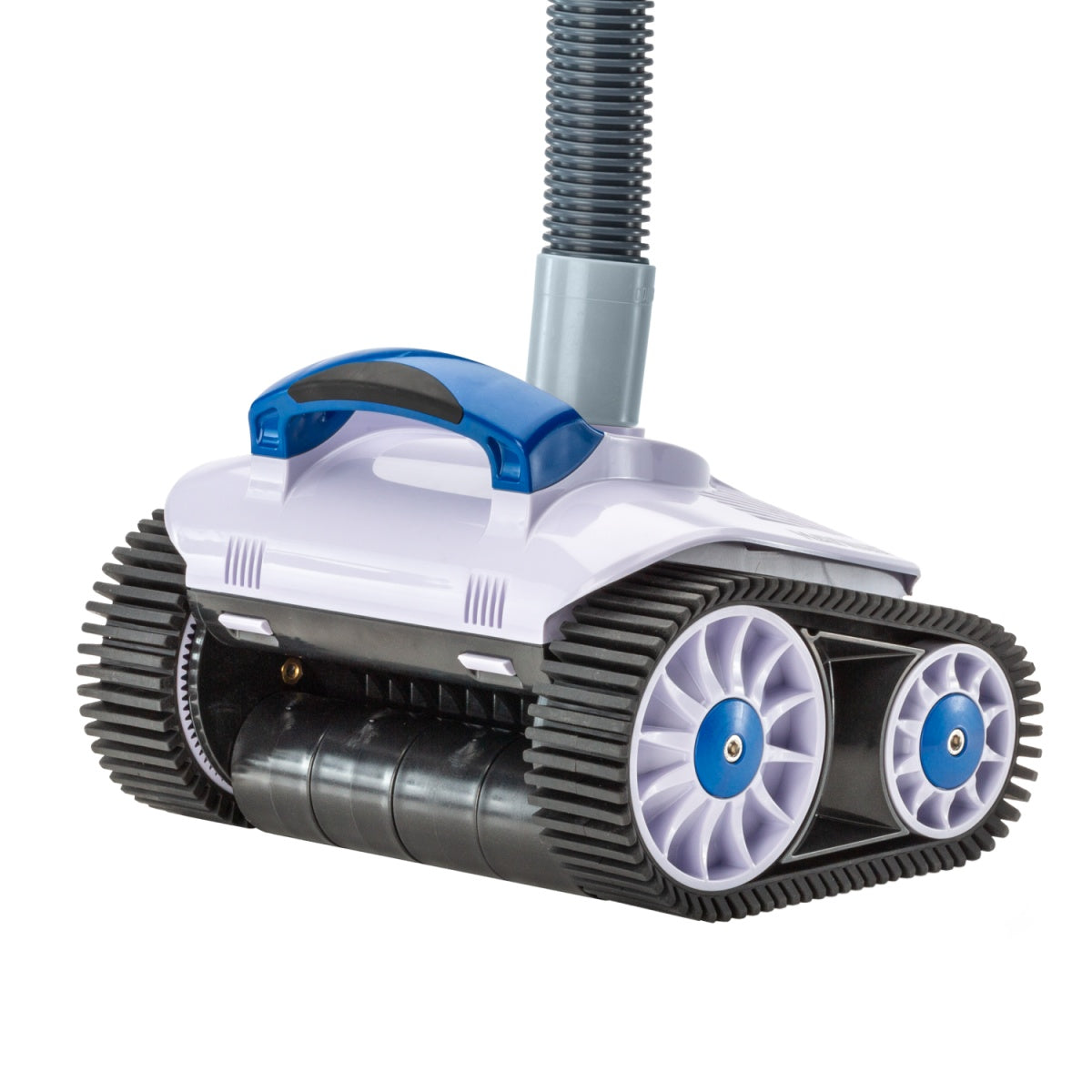

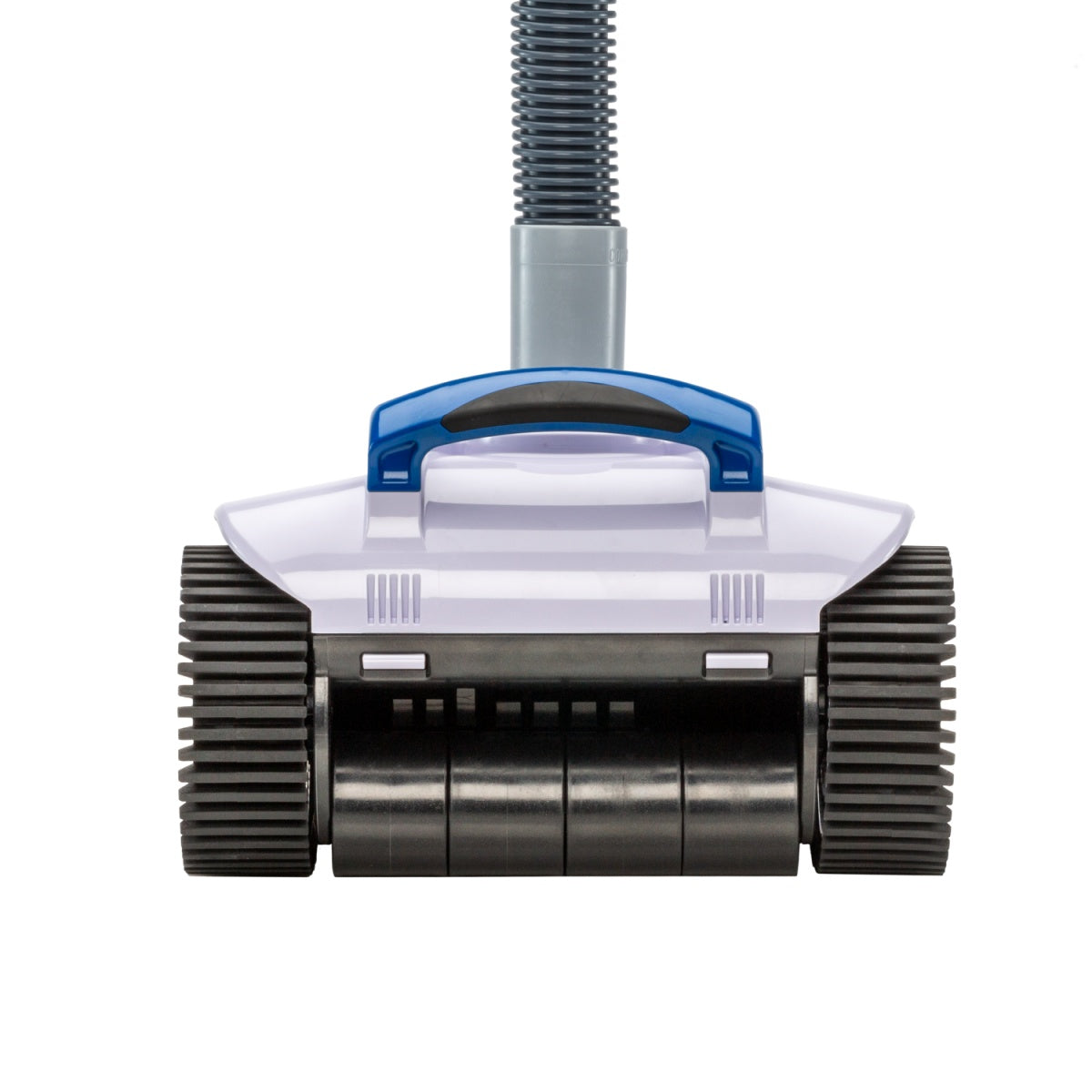

Hayward TracVac Automatic Suction Cleaner for Inground Pools
✓ Hayward Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
Hayward TracVac (W3HSCTRACCU) is a compact, track-driven suction cleaner for inground pools up to 20 x 40 ft. Patented tracks navigate main drains, uneven surfaces, and obstacles better than standard wheeled designs. External hose swivel prevents tangling. Lightweight at approximately 5.76 lbs. Connects to existing pool pump; no booster pump required. Includes adjustable hose and full accessory kit.
- SKU: W3HSCTRACCU
- 2-year limited warranty
- Cleans inground pools up to 20 x 40 ft
- Patented track-driven system; tracks navigate main drains, uneven surfaces, steep corners, and tight areas better than standard wheeled cleaners
- Patented adjustable skirts maintain optimal suction when the cleaner encounters obstacles; skirts lift over obstacles while maintaining suction underneath
- External hose swivel allows the cleaner to turn freely without hose tangling or coiling
- Compact and lightweight: approximately 5.76 lbs (8.9" L x 11.3" W x 7.9" H)
- Wall climbing on pools with sufficient floor-to-wall radius; may not climb all pool wall configurations
- Connects to dedicated suction port or skimmer; no booster pump or electrical installation required
- Includes: TracVac cleaner, 11 connector hoses, leader hose, flow regulator valve, hose cone adapter, flow gauge, hose clip, regulator valve cap, hose float
- Compatible with concrete, gunite, fiberglass, vinyl, tile, and pebble pool surfaces
- VacLock safety fitting sold separately
Hayward TracVac Automatic Pool Cleaner: Track-Driven Suction Cleaning for Inground Pools
The TracVac uses patented tracks rather than wheels or a foot-seal design. Tracks provide improved traction and obstacle maneuverability, gliding over main drains, uneven surfaces, and pool geometry that causes standard wheeled cleaners to stall. The patented adjustable skirts maintain suction contact with the pool surface even when an obstacle is encountered by lifting over it rather than losing the seal. An external hose swivel allows the cleaner to turn freely without the hose tangling. The TracVac's compact size and light weight (under 6 lbs) make it easy to set up and remove. Connects to the existing pool pump through the dedicated suction port or skimmer with no additional equipment required.
TracVac vs. Wheeled and Foot-Seal Suction Cleaners
The TracVac's track system is its defining difference from other suction cleaners in the Hayward lineup. Wheeled cleaners rely on tire contact; foot-seal cleaners (Navigator Pro, PoolVac XL) rely on a suction seal between the foot and the pool surface. The TracVac's tracks provide broader contact with the pool floor and better obstacle clearance, particularly around main drains, uneven plaster, and pool geometry with steep corners or irregular transitions. It is compatible with all inground pool surface types and pools up to 20 x 40 ft, making it a strong all-around choice where obstacle navigation and ease of use are priorities.
Hayward TracVac Suction Cleaner Specifications
Hayward TracVac Frequently Asked Questions
What makes the TracVac different from the Navigator Pro and PoolVac XL?
The Navigator Pro and PoolVac XL use a foot-seal design where suction between the foot and pool surface propels the cleaner. The TracVac uses patented tracks, which provide broader contact with the pool surface and better obstacle navigation, particularly over main drains, uneven surfaces, and tight corners that can stall foot-seal cleaners. The TracVac is also compatible with all inground surface types and larger pools up to 20 x 40 ft.
Will the TracVac climb pool walls?
The TracVac climbs walls on pools with sufficient floor-to-wall radius. It may not climb walls in all pool configurations, particularly pools with abrupt or near-vertical wall transitions. Check Hayward's installation guide for guidance specific to your pool geometry.
Does the TracVac work with a variable-speed pump?
Yes. The TracVac connects to the existing pool pump system. Set the pump to a speed that delivers adequate suction to keep the tracks moving consistently during the cleaning portion of the daily schedule.
My TracVac keeps getting stuck near the steps. What should I check?
A hose float placed at the section of hose closest to where the cleaner stalls will lift that section off the floor and change the cleaner's approach angle to the step area. Adjusting hose length by removing or adding one section can also shift the cleaner's working radius away from the problem zone.
Is the VacLock safety fitting included?
No. The VacLock safety fitting is sold separately. Everything else needed for installation is included in the box.
