Hayward ProSeries Sand Filter Inground 30 In Top Mount 2 Inch Valve

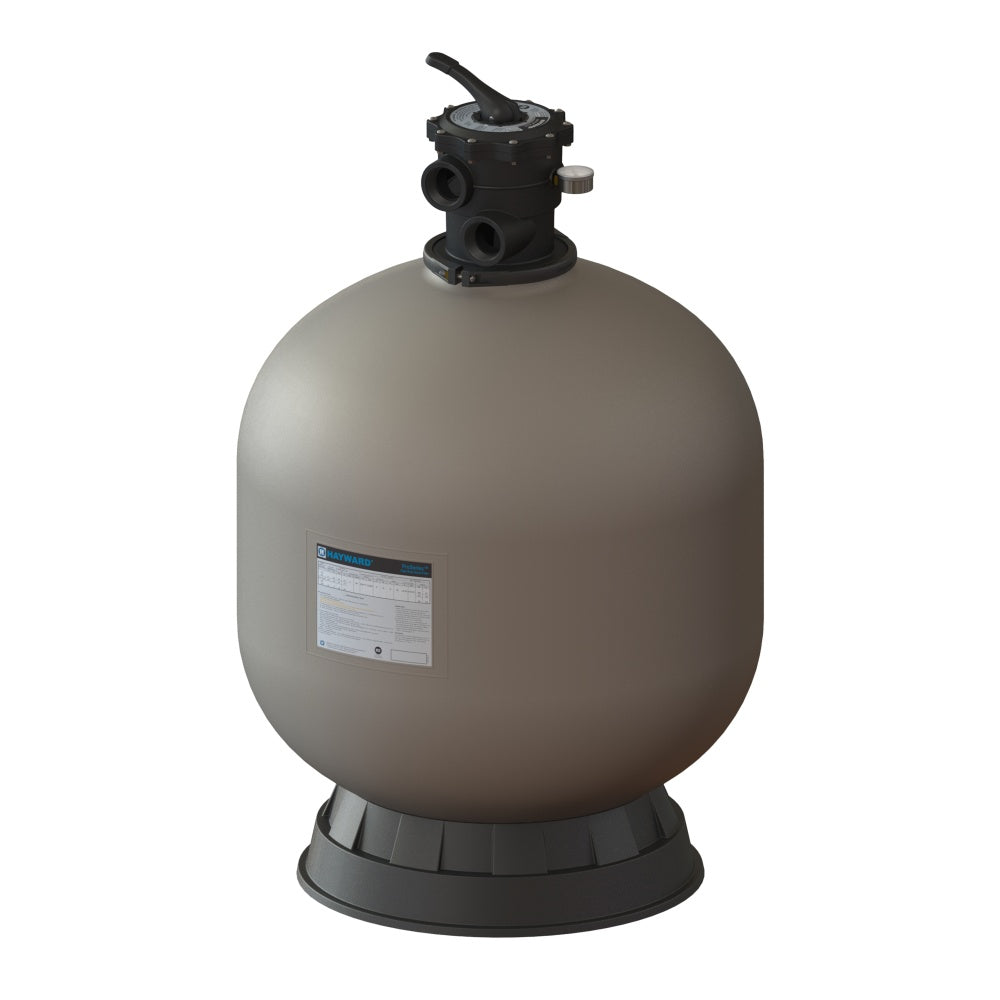

Hayward ProSeries W3S310T2 30-Inch Top-Mount Sand Filter with 2-Inch Valve for In-Ground Pools

The W3S310T2 is the largest top-mount model in the ProSeries in-ground lineup, pairing a 30-inch tank with a 2-inch Vari-Flo valve. At 4.91 sq ft of filtration area, 500 lbs of sand, and a 98 GPM design flow rate, it suits large residential in-ground pools with high-output pumps and 2-inch plumbing systems. The 2-inch valve is the only valve configuration available at this tank size in the top-mount format, making it a natural match for installations that have already stepped up to 2-inch pipe throughout the circulation system.

For a 30-inch side-mount configuration without a valve included, see the W3S310S.

Hayward W3S310T2 ProSeries 30-Inch Sand Filter Key Features

• 30-inch tank with 4.91 sq ft of filtration area - The largest tank in this ProSeries lineup. 500 lbs of sand means the longest backwash intervals in the range and a generous flow ceiling of 98 GPM for high-output residential pump configurations.
• 7-position 2" Vari-Flo top-mount valve - The 2-inch port is the appropriate pairing at this flow rate, minimizing head loss through the valve body. Filter, Backwash, Rinse, Waste, Recirculate, Closed, and Winter positions. Integral sight glass and 360-degree flange clamp rotation.
• 500 lb sand capacity - At this volume, backwash intervals at large pool sizes are substantially longer than smaller tanks, reducing water and time spent on maintenance over a season.
• Integral top diffuser - Even distribution of incoming water across the full sand surface for maximum use of the 4.91 sq ft filtration area.
• 360-degree self-cleaning laterals - Full-flow slotted design delivers balanced backwashing across the full 30-inch tank base.
• Corrosion-proof reinforced thermoplastic tank - All-weather outdoor construction for permanent in-ground pool installations.
• Large pressure sand/water drain - Essential at this tank size for manageable seasonal draining and sand replacement.

Hayward W3S310T2 ProSeries 30-Inch Sand Filter Specifications

Sand not included. Use #20 grade silica pool filter sand only. Pool coverage depends on pump output at actual system head and turnover rate targets.

Hayward ProSeries In-Ground Sand Filter Lineup: W3S310T2 in Context

Flow rates per Hayward published specifications. The W3S310S ships without a valve and requires a separately purchased backwash valve.

Maintaining the Hayward W3S310T2 ProSeries 30-Inch Sand Filter

Backwash when pressure rises 8 to 10 PSI above the clean baseline. Run Backwash until the sight glass clears, Rinse for 15 to 30 seconds, then return to Filter. At 500 lbs of sand, backwash intervals at large pool volumes will typically be among the longest in the ProSeries lineup. Replace sand every 3 to 5 years.

First Startup: Loading Sand

Fill the tank halfway with water before adding sand to protect the lateral assembly. At 500 lbs, add sand in several gradual portions rather than all at once. Run a full Rinse cycle before switching to Filter to clear fine dust. Record the post-Rinse pressure as the clean baseline.

Winterizing the W3S310T2

Backwash thoroughly before shutdown. Drain the tank through the base drain and leave the plug out for the season. Set the valve to Winter to drain the valve body. In hard-freeze climates, blow out the valve with compressed air. At this tank size, confirming complete drainage is especially important before any hard freeze.

Hayward W3S310T2 ProSeries 30-Inch Sand Filter Frequently Asked Questions

Hayward W3S310T2 ProSeries Sand Filter Documentation
