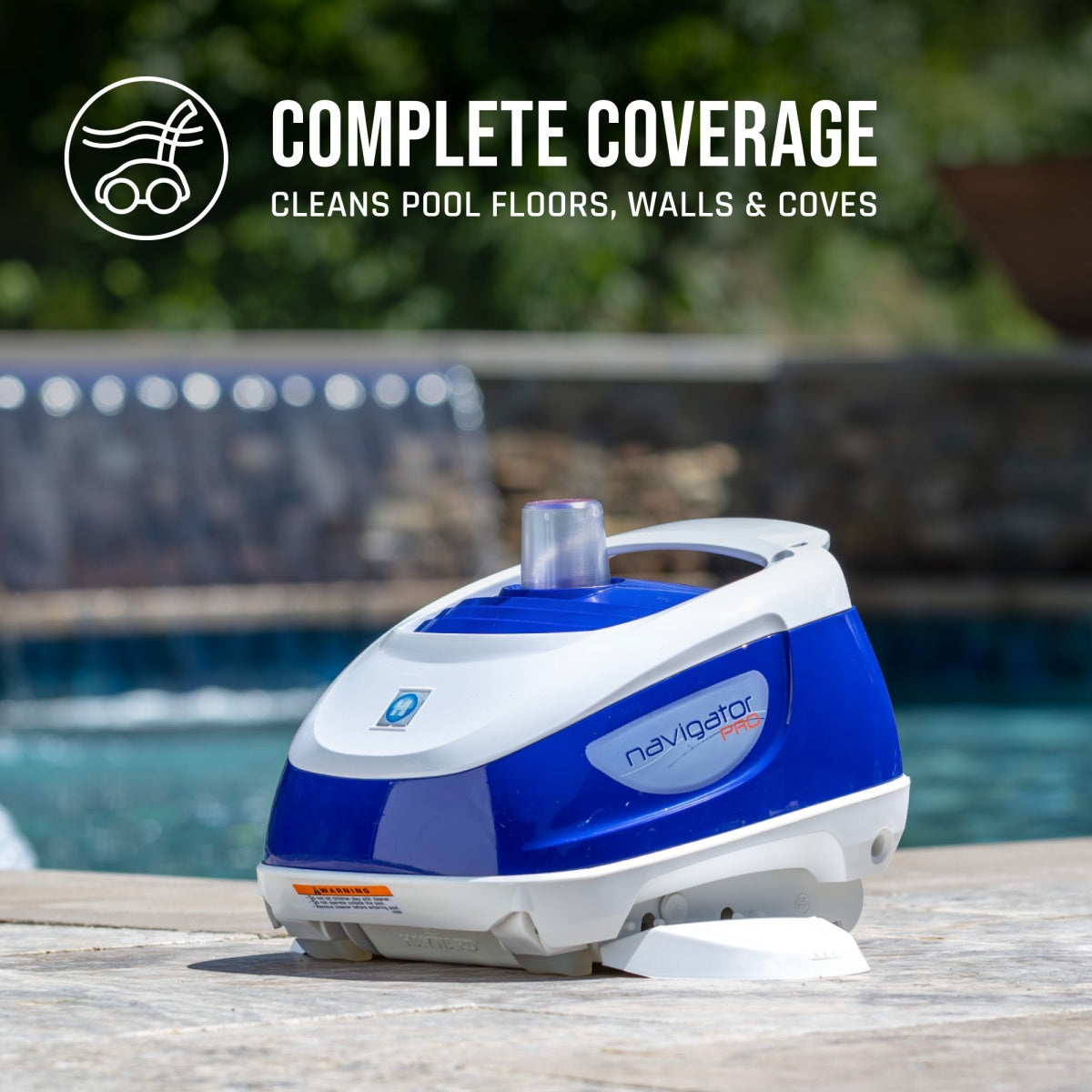

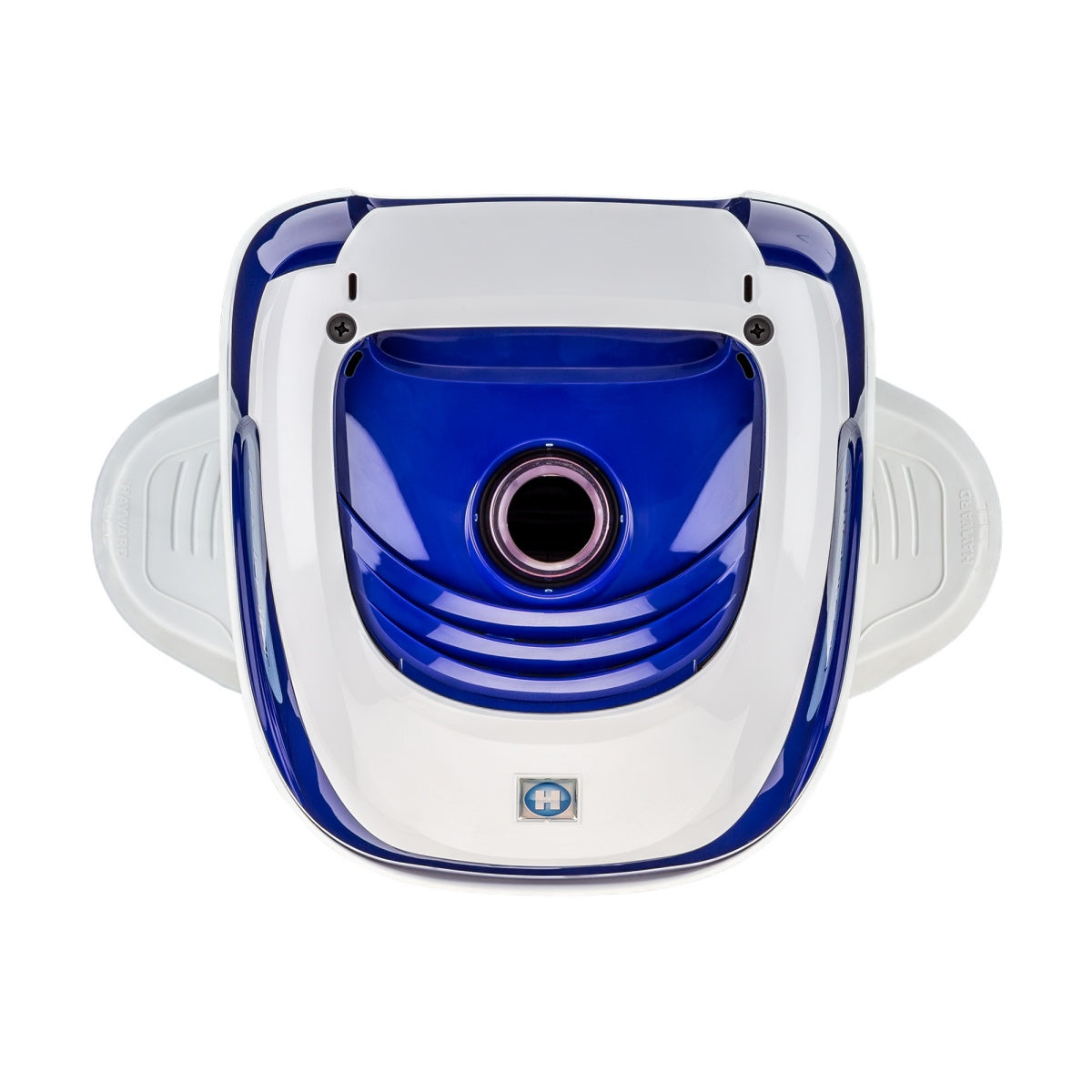

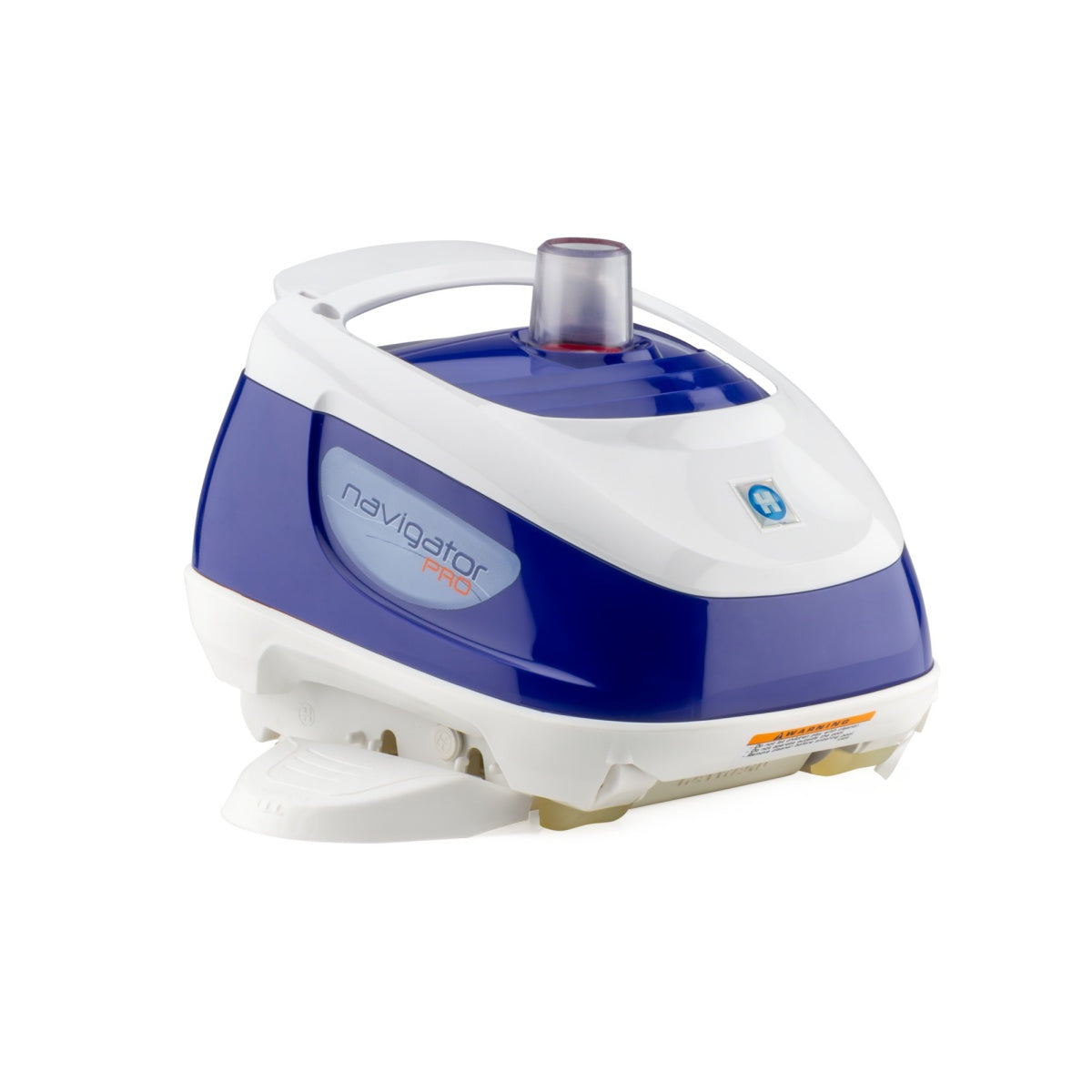

Hayward Navigator Pro Automatic Suction Cleaner for Vinyl Pools
✓ Hayward Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
Hayward Navigator Pro (W3925ADV) is a suction-side automatic pool cleaner for vinyl liner and fiberglass inground pools up to 20 x 40 ft. Patented AquaPilot programmed steering cleans floors, walls, and coves in 4 to 6 hours. Pod and shoes traction system; 40% larger intake vs. prior Navigator; virtually silent operation. Connects to existing pool pump; no booster pump required. Includes 40 ft of hose.
- SKU: W3925ADV
- 2-year limited warranty (parts only)
- Designed for vinyl liner and fiberglass inground pools up to 20 x 40 ft
- Patented AquaPilot programmed steering (SmartDrive): eliminates tangled hoses, pre-programmed series of turns for thorough, efficient coverage of floors, walls, and coves
- Cleans floors, walls, and coves in 4 to 6 hours on average
- 40% larger intake vs. prior Navigator models for faster cleaning and improved debris pickup
- Vacuum wings and skirt provide efficient debris pickup and constant suction; wide suction path on every pass
- Pod and shoes traction system; shoes suited for vinyl and fiberglass surfaces
- Virtually silent turbine-driven operation; no pulsating hoses or parts
- Installs in under 10 minutes; connects to skimmer or dedicated suction port without tools
- No debris bag to empty; debris passes directly to pump basket and filter
- Includes: 40 ft of hose (9 connector hoses and 1 lead hose), suction regulator valve, flow gauge, skimmer cone adapter
- No booster pump or separate electrical connection required
- Note: if used with a dedicated suction line, Hayward recommends a Vac Lock safety fitting (sold separately)
Hayward Navigator Pro Automatic Pool Cleaner for Vinyl and Fiberglass Pools: AquaPilot Programmed Steering
The Navigator Pro for vinyl and fiberglass pools (W3925ADV) uses patented AquaPilot programmed steering to systematically travel the pool floor, walls, and coves rather than relying on random navigation. The programmed steering eliminates the tangled hoses and missed areas common in random-pattern cleaners and covers the full pool surface in a reliable 4 to 6 hour cycle. The 40% larger intake over prior Navigator models improves debris pickup speed. Vacuum wings and a skirt maintain constant, wide-path suction contact. The pod and shoes traction system is specifically suited for vinyl liner and fiberglass surfaces. No booster pump required; the cleaner connects to the existing filtration system and installs in under 10 minutes.
Navigator Pro Vinyl vs. Concrete Version: What Is Different
The vinyl version (W3925ADV) and concrete version (W3925ADC) use the same AquaPilot steering, turbine, hose length, and accessories. The difference is in the shoes and traction components, which are matched to the surface type. The vinyl version's shoes are designed for vinyl liner and fiberglass surfaces to avoid scuffing and minimize liner contact stress. The concrete version's shoes are designed for the friction demands of plaster, gunite, and aggregate surfaces. Do not use the concrete version in a vinyl liner pool.
Hayward Navigator Pro Vinyl and Fiberglass Pool Cleaner Specifications
Hayward Navigator Pro Vinyl Pool Cleaner Frequently Asked Questions
What is the difference between the Navigator Pro vinyl version and the concrete version?
The shoes and traction components differ by surface type. The vinyl version (W3925ADV) has shoes designed for vinyl liner and fiberglass; the concrete version (W3925ADC) has shoes designed for plaster, gunite, and aggregate. The AquaPilot steering, turbine, hose, and accessories are the same. Using the concrete version in a vinyl liner pool risks scuffing and surface damage.
Does the Navigator Pro use random navigation or programmed steering?
Programmed steering. The patented AquaPilot system (also called SmartDrive) drives the cleaner in a pre-programmed series of turns for systematic pool coverage. This eliminates the tangled hoses and coverage gaps that random-navigation cleaners can produce.
Will the Navigator Pro work in a fiberglass pool?
Yes. The W3925ADV vinyl version is designed for both vinyl liner and fiberglass pool surfaces.
How does the Navigator Pro compare to the PoolVac XL for vinyl pools?
The two cleaners are nearly identical in performance and share most of the same parts. The Navigator Pro has a 40% larger intake and updated steering vs. prior Navigator generations. Both clean floors, walls, and coves on vinyl pools effectively. The choice between them is largely cosmetic and regional availability.
Do I need a Vac Lock safety fitting?
Hayward recommends installing a Vac Lock safety fitting if the cleaner is connected to a dedicated suction port rather than the skimmer. The Vac Lock automatically closes if the hose is pulled from the wall fitting. It is sold separately.
