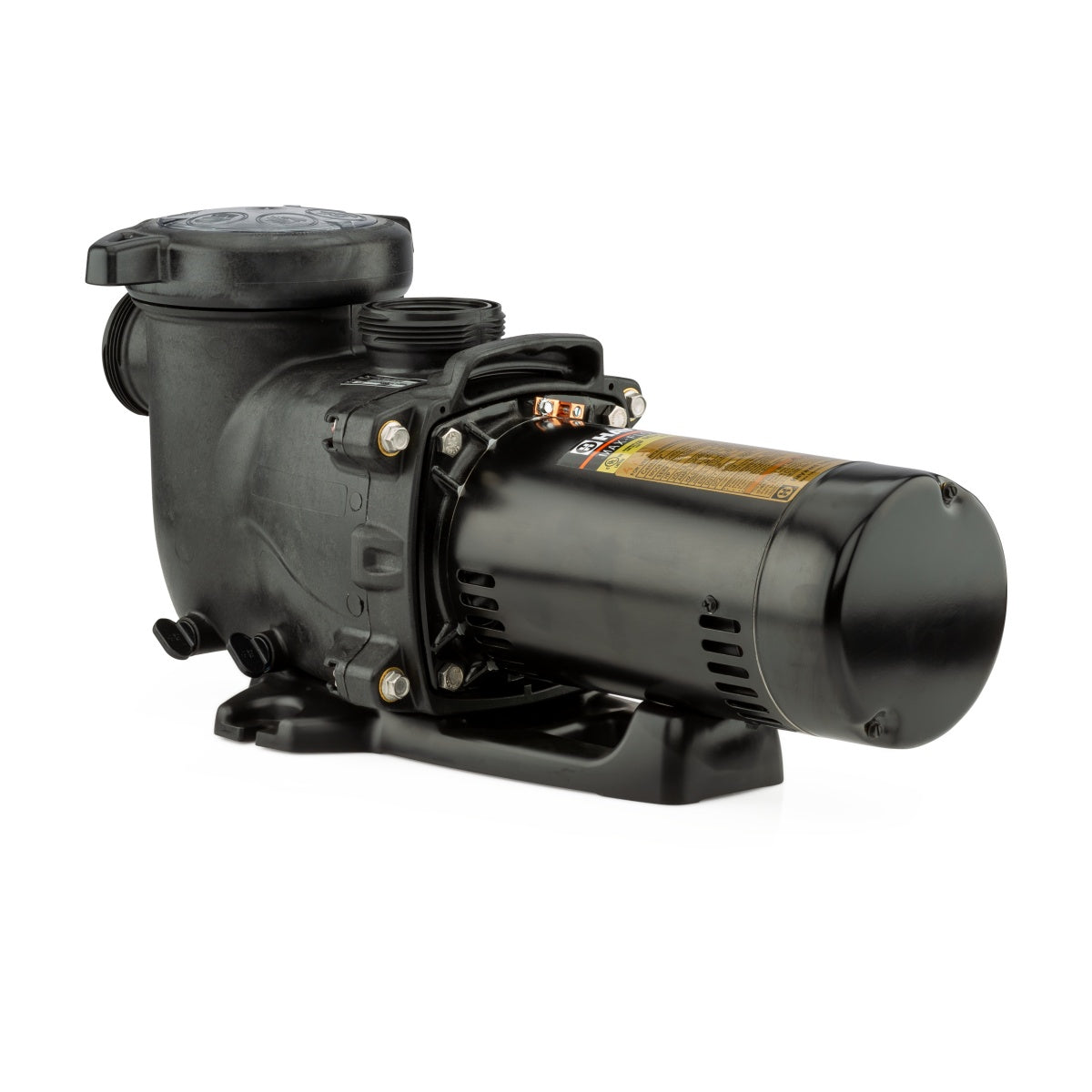

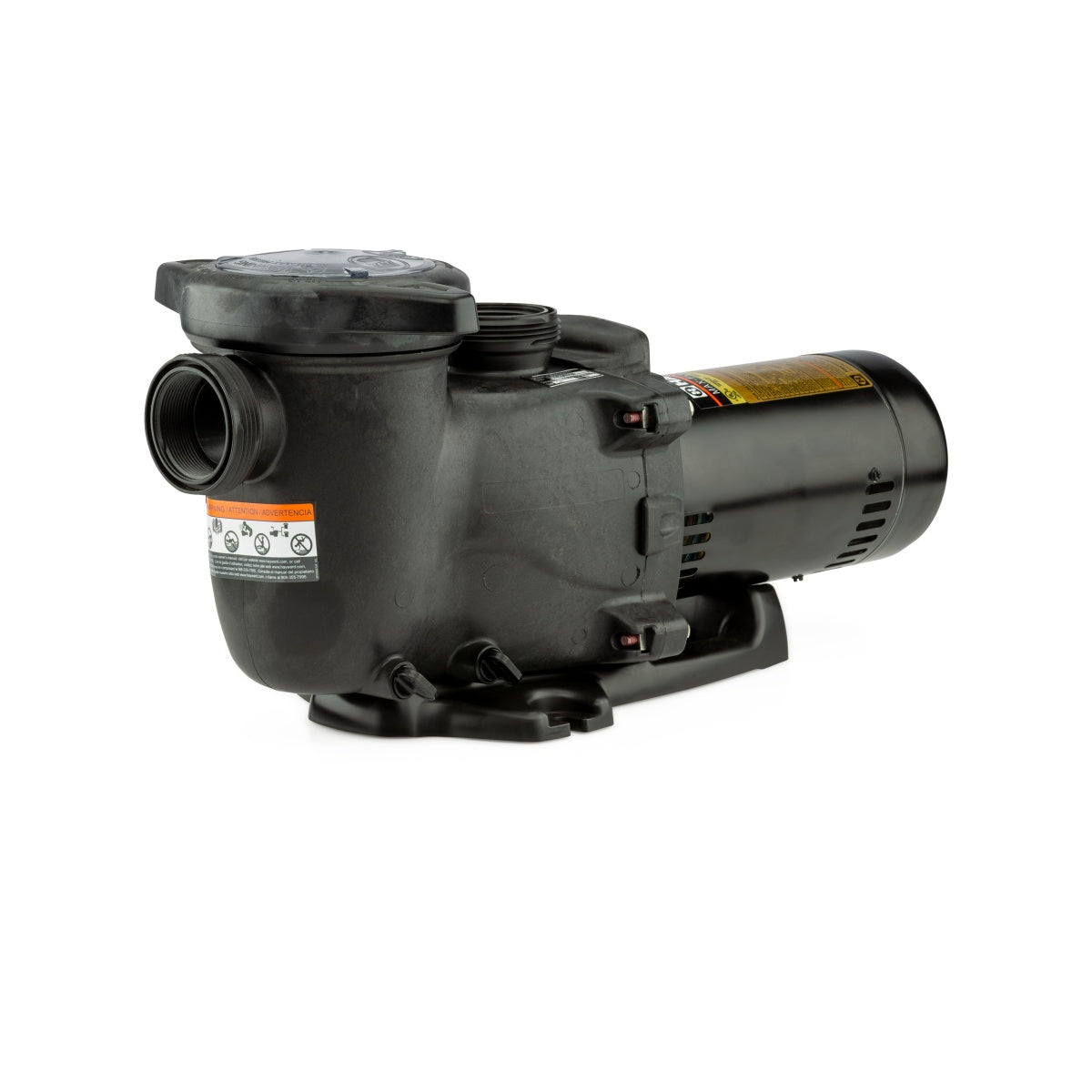

Hayward MaxFlo XL 1 HP Single Speed Pool Pump
✓ Hayward Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The Hayward MaxFlo XL (W3SP2307X10) is a 1 HP single-speed in-ground pool pump. Advanced high-efficiency hydraulics, extra-large debris basket, clear quarter-turn strainer cover, 1.5" x 2" union connections, 115/230V dual voltage. Self-priming up to 8 ft. Professional installation required for warranty validation. 1 year warranty.
- SKU: W3SP2307X10
- 1 year warranty; professional installation required for warranty validation
- 1 HP single-speed in-ground pool pump; 3450 RPM
- Advanced high-efficiency hydraulics; most energy-efficient pump in its class
- Extra-large debris basket extends time between cleanings
- Clear strainer cover seals with less than a quarter turn; see basket status without opening
- Easy 4-bolt motor access for simple servicing
- Self-priming suction lift up to 8 ft above water level
- 1.5" x 2" union connections; drop-in replacement for the original MaxFlo and entire MaxFlo line
- Optional riser base (SPX2300GR) aligns with Sta-Rite Dyna-Pro for easy retrofits
- Motor pressure testable to 50 PSI
- 115/230V dual voltage
- Dimensions: 31 x 9.9 x 12.4 in; weight: 35 lbs
- Glass-reinforced thermoplastic housing; UL Listed, cUL Listed
Hayward MaxFlo XL 1 HP Single Speed Pool Pump W3SP2307X10
The MaxFlo XL is Hayward's high-efficiency entry-level in-ground pump, built around advanced hydraulics that improve flow and priming ability over the original MaxFlo. The extra-large basket holds more debris before restriction occurs, and the clear cover seals with less than a quarter turn so you can check basket status at a glance without opening anything. The 1.5" x 2" union connections align with the entire MaxFlo line, making it a clean drop-in replacement for an existing MaxFlo installation. Professional installation is required for warranty validation.
Hayward MaxFlo XL W3SP2307X10 Specifications
Hayward MaxFlo XL W3SP2307X10 Single Speed Pool Pump - Frequently Asked Questions
Is this a direct replacement for my existing MaxFlo pump?
Yes. The W3SP2307X10 uses 1.5" x 2" union connections that align with the entire MaxFlo line, so it is a drop-in retrofit for any existing MaxFlo installation. For Sta-Rite Dyna-Pro installations, the optional riser base SPX2300GR provides the correct inlet/outlet alignment.
Does this pump require professional installation?
Professional installation is required for warranty validation. Hayward's warranty on this pump is contingent on installation by a licensed pool professional. Keep the installer's documentation in case a warranty claim is needed.
What voltage does it ship wired for?
The W3SP2307X10 is dual voltage (115V/230V). It typically ships configured for 230V, which is the most common in-ground pool circuit. If your equipment pad uses 115V, a licensed electrician can rewire the motor following the wiring diagram in the installation manual.
Is this pump suitable for above ground pools?
No. The MaxFlo XL is rated for in-ground pool use. Above ground pools require pumps with different head pressure ratings and plumbing configurations. Using an in-ground pump on an above ground pool can damage fittings and void the warranty.
How does it compare to a variable speed pump?
The W3SP2307X10 runs at one fixed speed whenever it is on. A variable speed pump can ramp down to lower speeds for extended filtration cycles, reducing energy consumption and noise. If energy savings are the priority or your local code requires variable speed pumps, look at the MaxFlo VS W3SP2303VSP instead. The MaxFlo XL is the right choice when a reliable single-speed replacement is the goal and upfront cost matters.
