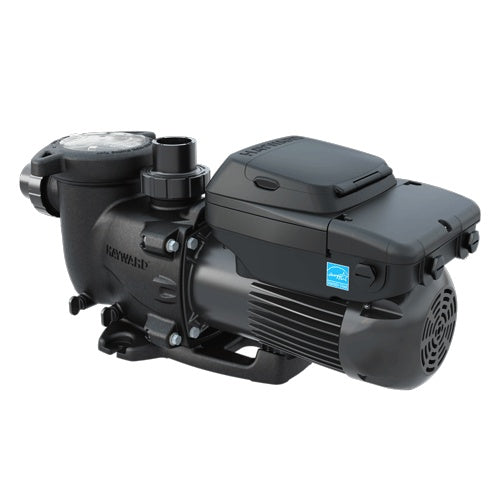

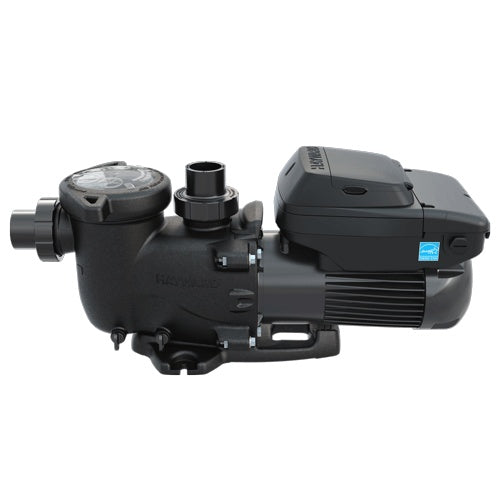

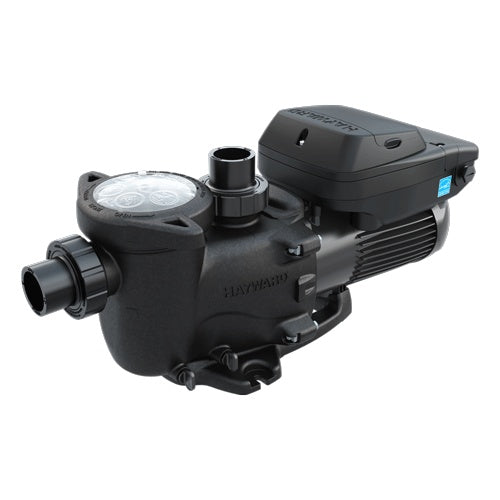

Hayward MaxFlo VS 1.65 HP Variable Speed Pool Pump
✓ Hayward Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The Hayward MaxFlo VS (W3SP2303VSP) is a 1.65 HP variable speed in-ground pool pump. Permanent magnet TEFC motor, 600 to 3450 RPM, up to 8 programmable speed programs. Onboard digital display rotates to four positions or mounts to wall. Works standalone, with OmniLogic, or with third-party automation via relay. Includes 2 unions for 1.5" or 2" plumbing. ENERGY STAR certified. 1-year warranty.
- SKU: W3SP2303VSP
- 1 year warranty
- 1.65 HP variable speed in-ground pool pump; 600 to 3450 RPM
- Permanent magnet totally enclosed fan-cooled (TEFC) motor
- Up to 80% energy savings vs. single speed pump operation
- Up to 8 programmable speed and schedule programs
- Onboard digital display shows real-time power consumption; rotates to 4 positions or mounts to wall
- Works standalone, with Hayward OmniLogic, or with third-party automation via relay control
- No built-in Wi-Fi; onboard programming only (no app required)
- Includes 2 unions and gaskets; compatible with 1.5" and 2" plumbing
- 230V (also available in 115V); 11.5A max at 230V
- Drop-in retrofit for existing MaxFlo pump installations
- ENERGY STAR certified; CEC/Title 20/APSP 15 compliant; eligible for utility rebates
- Extra-large strainer basket with clear see-through cover
- Built-in freeze protection mode
- UL Listed, cUL Listed
Hayward MaxFlo VS Variable Speed Pool Pump W3SP2303VSP
The MaxFlo VS brings variable speed technology to the MaxFlo pump platform. Variable speed pumps save energy because power consumption scales with the cube of motor speed — running at 1500 RPM for 8 hours uses a fraction of what the same pump draws in 2 hours at 3450 RPM, while circulating more total water volume through the filter. The onboard digital display handles all programming directly at the pad; no app, no Wi-Fi, no external hardware needed. The display rotates to four positions or can be wall-mounted for easier viewing. It works in standalone mode, integrates with Hayward OmniLogic, or connects to third-party automation systems via relay.
Hayward MaxFlo VS W3SP2303VSP - Specifications
| Specification | Detail |
|---|---|
| SKU / Model | W3SP2303VSP |
| Motor Horsepower | 1.65 HP (THP) |
| Motor Type | Permanent magnet, totally enclosed fan cooled (TEFC) |
| Speed Range | 600 to 3450 RPM |
| Programmable Speeds | Up to 8 speed and schedule programs |
| Voltage | 230V (dual voltage: 115V/230V) |
| Max Amperage (230V) | 11.5A |
| Control Interface | Onboard digital display; rotates to 4 positions or wall-mounts; shows real-time power consumption |
| Wireless Connectivity | None; onboard programming only |
| Automation Compatibility | Standalone; Hayward OmniLogic; third-party systems via relay |
| Ports | 2" NPT; includes 2 unions and gaskets for 1.5" or 2" plumbing |
| Strainer Basket | Extra-large capacity with see-through cover |
| Pool Application | In-ground residential pools and spas |
| Body Material | Glass-reinforced thermoplastic |
| Energy Certification | ENERGY STAR certified; CEC/Title 20/APSP 15 compliant |
| Certifications | UL Listed, cUL Listed |
| Warranty | 1 year |
Speed Programming Guidelines for the Hayward MaxFlo VS Variable Speed Pool Pump
- Overnight filtration: 1,200 to 1,800 RPM for extended low-energy turnover
- Daytime circulation with bathers: 1,800 to 2,400 RPM
- Chemical distribution after dosing: 2,000 to 2,400 RPM for 30 to 60 minutes
- Pool vacuuming: 2,800 to 3,450 RPM for maximum suction
- Heater operation: at or above the heater manufacturer's minimum GPM requirement
- Water features: speed matched to the GPM the feature requires
Hayward MaxFlo VS Variable Speed Pool Pump - Frequently Asked Questions
Does this pump have Wi-Fi or app control?
No. The W3SP2303VSP has no built-in wireless connectivity. All programming is done through the onboard digital display at the pump. It integrates with Hayward OmniLogic automation and third-party systems via relay control, but there is no standalone app for this model. If app-based scheduling and remote control are important to you, look at the MaxFlo VS 415 with OmniX instead.
What is the warranty on this pump?
1-year manufacturer's warranty. Some retailers require proof of professional installation for warranty validation; confirm with your installer before purchase.
Does it work with Hayward OmniLogic?
Yes, via relay control. The W3SP2303VSP can be integrated into a Hayward OmniLogic or third-party automation system through relay control, which allows the automation system to trigger speed changes based on schedules or equipment calls. It does not have native OmniX wireless integration.
Does it qualify for utility rebates?
Yes. The W3SP2303VSP is ENERGY STAR certified and compliant with Title 20, CEC, and APSP 15 regulations, which satisfies the qualification criteria for most utility variable speed pool pump rebate programs. Check with your local utility for current program details and required documentation.
Is this a direct replacement for an existing MaxFlo pump?
Yes. The W3SP2303VSP aligns with the original MaxFlo pump footprint and includes 2 unions for 1.5" or 2" plumbing, making it a drop-in retrofit for most existing MaxFlo installations without replumbing.
