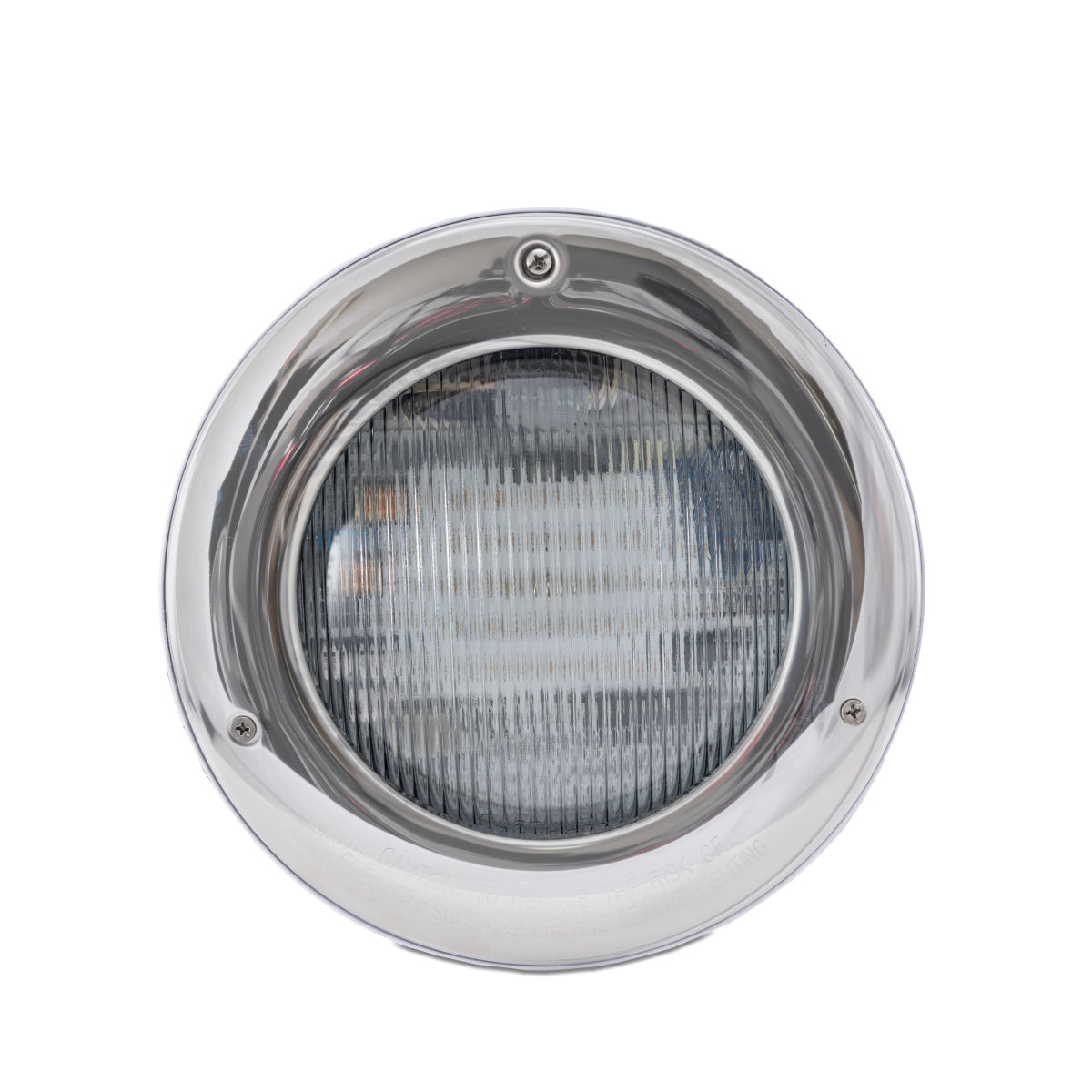

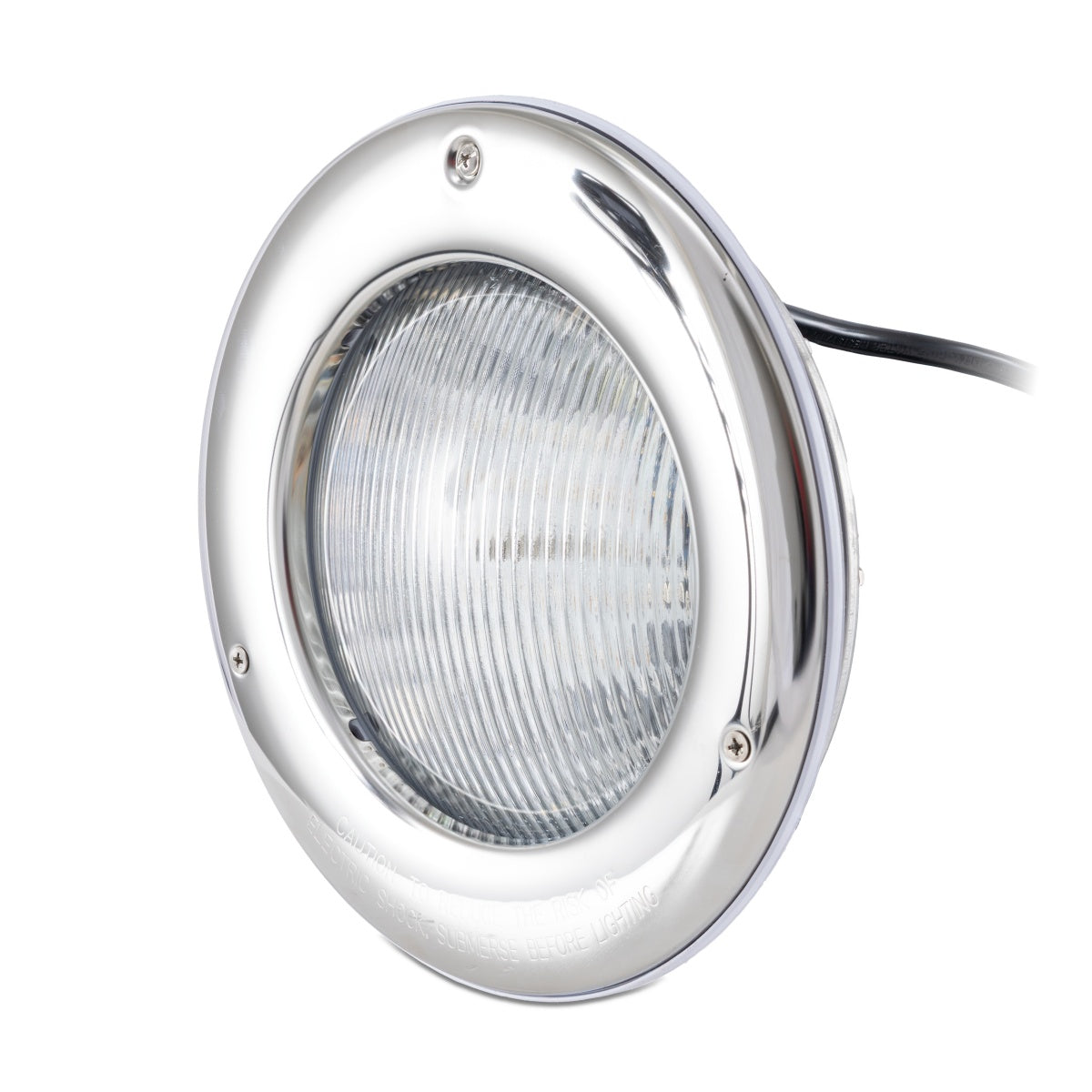

Hayward ColorLogic 4.0 LED Stainless Steel Pool Light
✓ Hayward Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The Hayward ColorLogic 4.0 LED pool light (W3SP0527SLED100) is a 120V full-size main pool lighting fixture with a 100-foot cord and stainless steel trim. Delivers 5 fixed colors and 7 color-changing shows. Stainless trim provides bonding compatibility and corrosion resistance for metal-trim niche retrofits and premium pool builds.
- SKU: W3SP0527SLED100
- 1-year limited warranty (parts); proof of installation by a certified technician required to validate warranty
- 5 fixed colors and 7 color-changing light shows (switch-cycling control)
- With Hayward automation: up to 101 fixed colors and 11 light shows
- Power line communication: synchronizes with other ColorLogic fixtures with no additional wiring or relays
- All-white light override feature for added safety
- No moving parts; LED rated to last up to 10x longer than incandescent
- Saves up to 79% on energy costs vs. incandescent pool lights
- 100-foot cord for extended conduit runs (Hayward does not recommend over 150 ft total)
- Stainless steel trim ring; corrosion-resistant, bonding-compatible
- Direct retrofit for existing 120V incandescent main pool lights with metal-trim niches; no transformer required
- Note: ProLogic automation has been discontinued; Hayward recommends Universal ColorLogic for expanded color options going forward
- Dedicated GFCI-protected 120V circuit required; licensed electrician installation per NEC Article 680
Hayward ColorLogic 4.0 LED Pool Light: 120V Main Pool Lighting with Stainless Steel Trim and 100-Foot Cord
The stainless trim version of the ColorLogic 4.0 is the correct specification when the existing niche uses a metal trim ring connected to the equipotential bonding grid, when the pool design calls for metal hardware continuity, or in saltwater and coastal environments. The lighting output, color modes, and 120V operating characteristics are identical to the plastic trim version. The stainless trim is the only difference. For metal-trim niche retrofits it maintains the bonding connection at the trim ring without additional electrical work; confirm bonding requirements with the installing licensed electrician before ordering.
Stainless vs. Plastic Trim on the ColorLogic 4.0: When Each Is the Right Choice
Choose stainless trim when: the existing niche uses a metal trim ring connected to the bonding grid; the pool design specifies metal hardware throughout; or the installation is in a saltwater or coastal environment where material durability is a priority. Choose plastic trim when: the existing niche uses plastic trim; bonding is handled independently of the trim ring; and cost is a consideration. Both versions deliver identical lighting performance. The plastic trim version is available separately if that is the appropriate specification for your niche.
Hayward ColorLogic 4.0 LED Pool Light 120V Stainless Steel Trim 100-Foot Cord Specifications
Hayward ColorLogic 4.0 Stainless Steel Trim Frequently Asked Questions
Why choose stainless trim over plastic trim on the ColorLogic 4.0?
Three reasons: bonding compatibility (stainless maintains the trim ring bonding connection if the existing niche requires it), design specification (stainless provides material continuity in pools with metal hardware throughout), and environment (saltwater and coastal pools benefit from stainless trim's chloride corrosion resistance). If none of these apply, the plastic trim version delivers identical lighting at lower cost.
Does the stainless trim ring require a bonding conductor connection during installation?
That depends on the original installation. If the existing fixture had a bonding conductor connected to its metal trim ring, the electrician will need to connect that conductor to the new stainless trim ring. If bonding was handled separately from the trim ring, no additional trim connection may be required. Always have a licensed electrician with pool electrical experience confirm the bonding requirements before proceeding.
Is stainless steel trim appropriate for saltwater pools?
316 stainless steel is preferred over 304 for saltwater environments due to its molybdenum content, which provides better resistance to chloride-induced pitting. Confirm the specific grade used in the ColorLogic 4.0 trim ring with Hayward's product specification before installation in a saltwater or salt-chlorinator pool.
The original copy listed 16 colors. Is that correct?
No. The ColorLogic 4.0 offers 5 fixed colors and 7 color-changing shows via switch cycling. The 101-color capability required ProLogic automation integration, which Hayward has since discontinued. Existing ProLogic users retain that expanded palette; new buyers who need more than 5 fixed colors should consider Hayward's Universal ColorLogic line.
Does warranty require professional installation?
Yes. Proof of installation by a certified technician is required to validate the factory warranty. DIY installation also risks NEC Article 680 compliance issues for pool electrical work.
