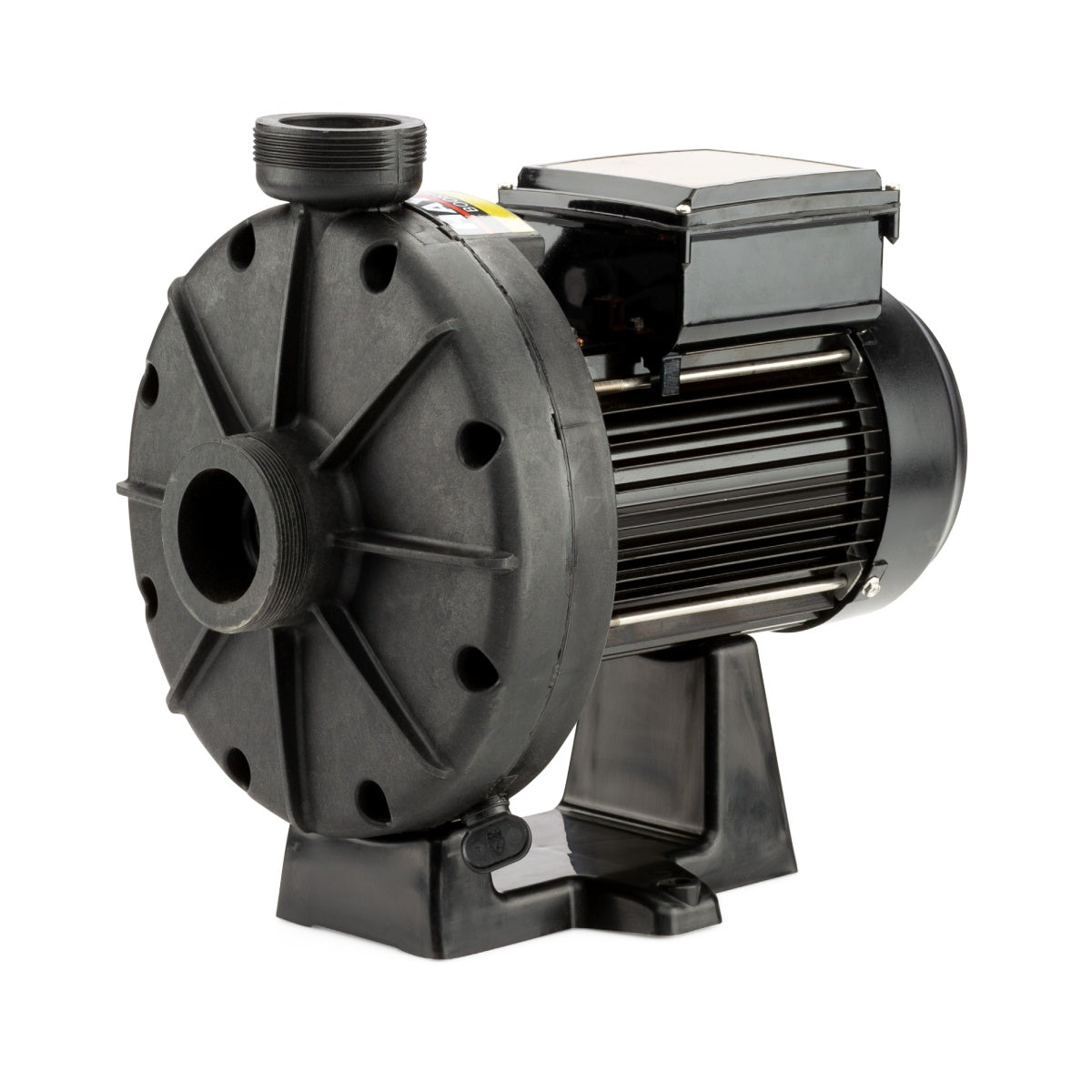

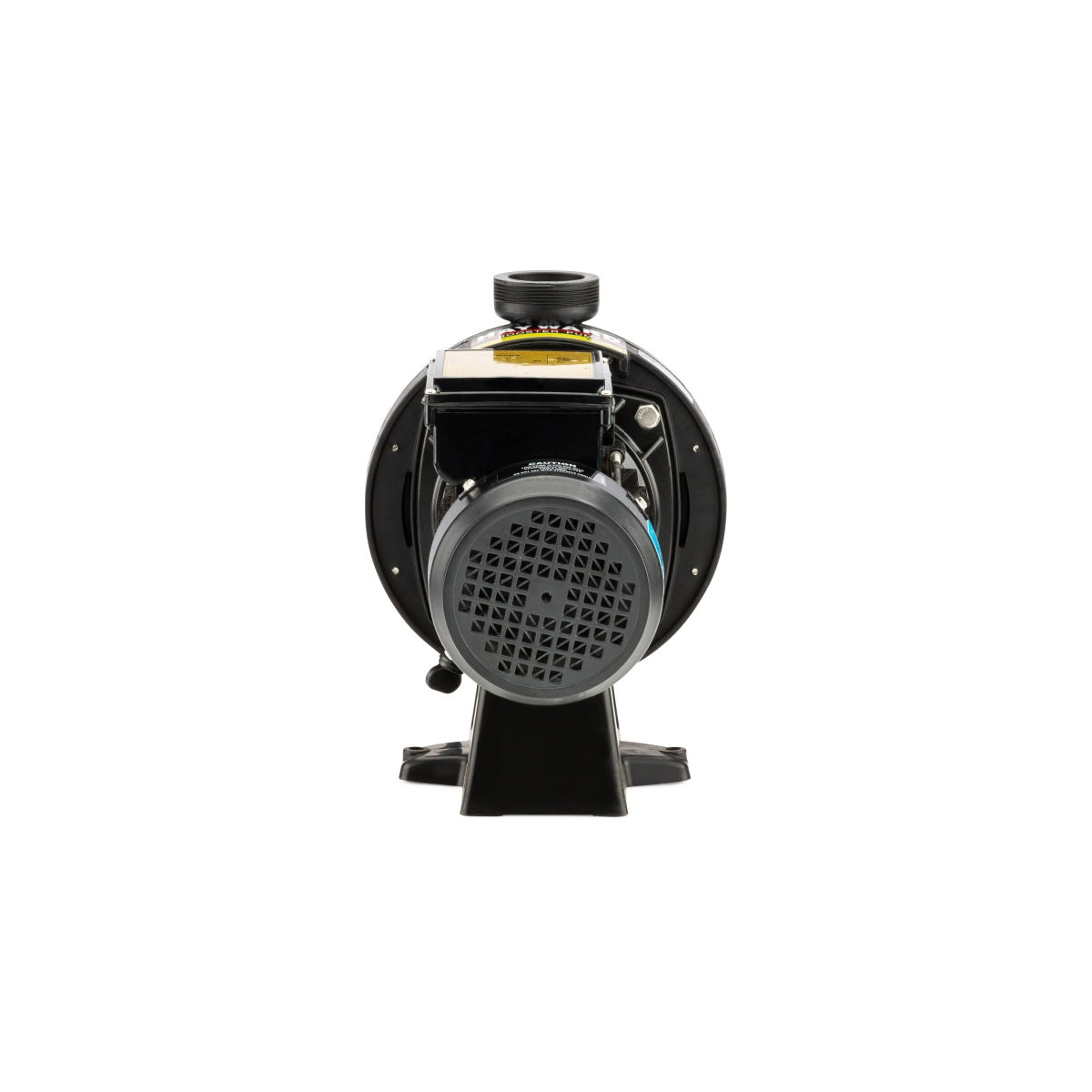

Hayward Booster Pump 3/4 HP Pool Pump
✓ Hayward Authorized Dealer
✓ Includes Manufacturer Warranty
✓ Installation Available Upon Request
✓ 30-Day Return Policy Guarantee
The Hayward W36060 is a 3/4 HP booster pump for pressure-side automatic pool cleaners. It runs in tandem with your primary circulation pump to give pressure-side cleaners their own dedicated water supply, separate from the main filtration loop. Vertical or horizontal discharge. Includes 3/4" hose barb union adapters, 1-1/2" plumbing union fittings, and a motor/pump stand. Uses up to 40% less electricity than comparable booster pumps. Not self-priming; only operates when the main pump is running.
Hayward Booster Pump W36060 - Key Features
The W36060 is Hayward's primary residential booster pump, compatible with all pressure-side cleaners that require a dedicated booster circuit including the Polaris 280, Polaris 380, and similar models. The tall mounting base increases motor ventilation and provides protection from minor flooding at the equipment pad. The vertical or horizontal discharge orientation means it fits most equipment pad layouts without repositioning your plumbing.
- SKU: W36060
- 1-year limited warranty; professional installation recommended
- 3/4 HP; 1.25 THP; 3450 RPM
- 115V / 230V dual voltage
- Up to 40% less electricity than comparable booster pumps
- Vertical or horizontal discharge
- Includes: 3/4" hose barb union adapters, 1-1/2" plumbing union fittings, motor/pump stand
- Hose installation kit (6060HKIT) sold separately
- Compatible with all pressure-side cleaners requiring a booster pump
- Not self-priming; must only run when the main circulation pump is running
- Tall mounting base for motor ventilation and flood protection
- Thermal overload protection built into the motor
Hayward Booster Pump W36060 - Specifications
| Specification | Detail |
|---|---|
| SKU | W36060 |
| Motor Horsepower | 3/4 HP (1.25 THP) |
| Pump Speed | 3450 RPM |
| Voltage | 115V / 230V dual voltage |
| Amperage | 12.0A at 115V / 6.0A at 230V |
| Discharge Orientation | Vertical or horizontal (field selectable) |
| Inlet/Outlet Connection | 1-1/2" NPT; 3/4" hose barb union adapters included |
| Self-Priming | No; requires main circulation pump to be running |
| Energy Use | Up to 40% less than comparable booster pumps |
| Includes | 3/4" hose barb union adapters, 1-1/2" plumbing union fittings, motor/pump stand |
| Optional Accessory | Hose installation kit (6060HKIT), sold separately |
| Application | Pressure-side automatic pool cleaner booster duty |
| Compatible Cleaners | All pressure-side cleaners requiring a dedicated booster pump |
| Certifications | UL Listed |
| Warranty | 1 year warranty |
Hayward Pool Booster Pump W36060 - Installation Notes
The W36060 installs in-line on the return plumbing, downstream of the filter, with a dedicated line running to the pressure-side cleaner. It is not self-priming and must only operate when the main circulation pump is running. Most pool owners wire the booster pump to a timer so it runs during the cleaner's scheduled hours, typically 2 to 4 hours per day.
The pump requires its own dedicated electrical circuit at 115V or 230V depending on motor wiring. A licensed electrician should handle the wiring connection. Mount on a level, firm surface and prime before first startup to protect the mechanical seal. Hose connection retrofit is possible using the 3/4" hose barb union adapters included; for flexible hose installations, the optional 6060HKIT provides additional fittings.
Hayward W36060 Pool Booster Pump - Frequently Asked Questions
Do I need a booster pump if I already have a main circulation pump?
Yes, if your pressure-side cleaner specifies a booster pump. Cleaners like the Polaris 280 and 380 are designed to run on a dedicated booster circuit, not shared return pressure from the main pump. Running them without a dedicated booster pump results in poor performance and premature cleaner wear.
Can this pump run continuously?
The W36060 is rated for continuous duty, but most pool owners connect it to the same timer as their pressure-side cleaner and run it only during cleaning cycles, typically 2 to 4 hours per day. This is the most energy-efficient approach. It must not run when the main circulation pump is off.
What plumbing size does this pump use?
The pump includes 1-1/2" plumbing union fittings and 3/4" hose barb union adapters for flexible hose connections. Standard 1-1/2" PVC pool plumbing fits directly. For 2" plumbing, a reducing fitting handles the transition.
Is the hose installation kit included?
The 3/4" hose barb union adapters are included. The full hose installation kit (6060HKIT) is sold separately and is recommended for installations using flexible hose connections.
